9
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.

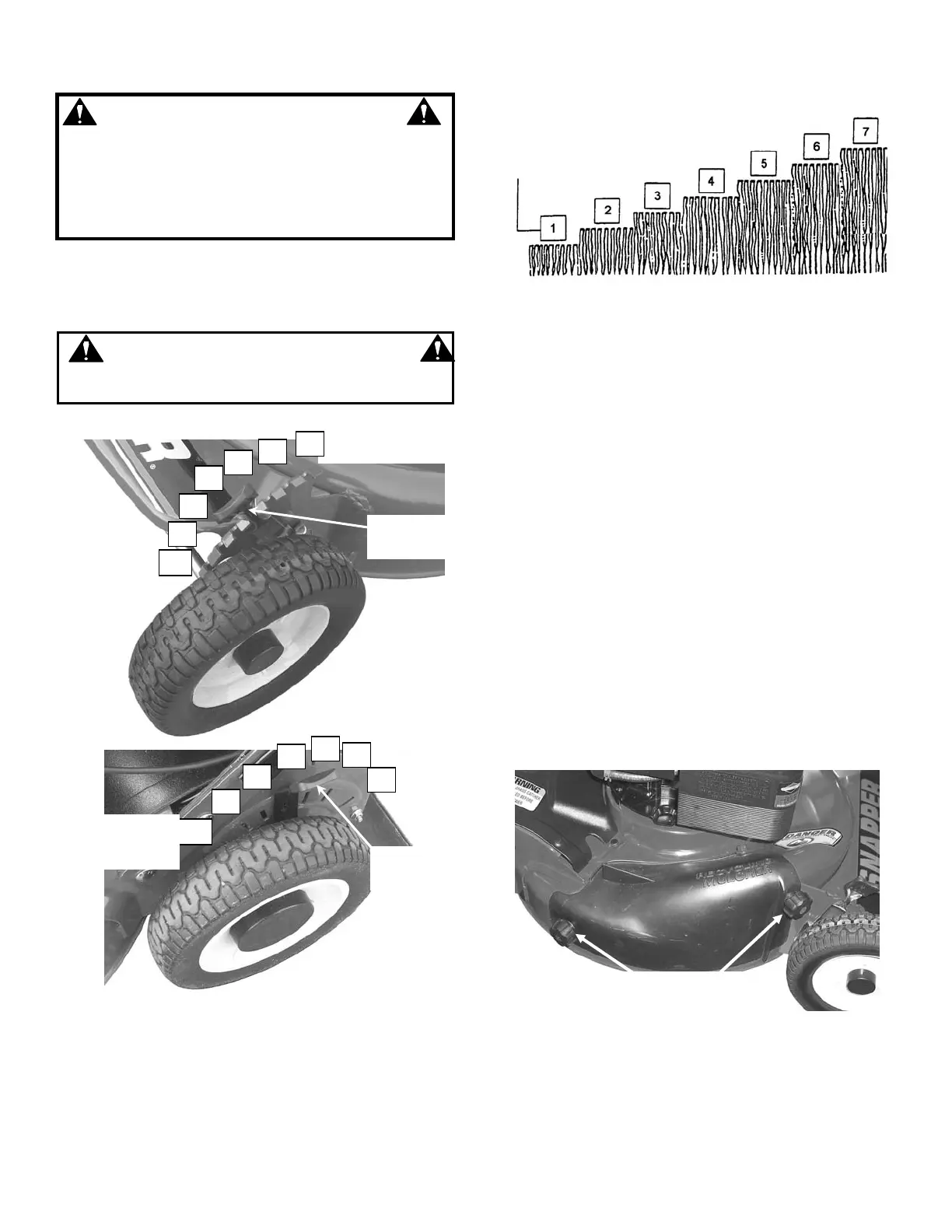

2.5 CUTTING HEIGHT ADJUSTMENT
1. Pull the height adjusting latch outward and
move to desired cutting height. See Figure 2.10.
WARNING
Stop engine and mower blade by releasing the
blade control before adjusting cutting height.
FIGURE 2.10
2. Set all wheels at the same cutting height. The
highest cutting position is Notch 7. The lowest
cutting position is Notch 1. See Figure 2.11.
FIGURE 2.11
2.6 RECYCLING OPERATION
NOTE: For best recycling results, cut up to a maximum of 1/3
of grass blade length and recycle ONLY when grass is dry.
1. Set all wheels in the highest cutting position (Notch
7). Refer to Section “Cutting Height Adjustment”.
2. Move engine speed control to “FAST” (Rabbit)
position.
3. Move ground speed control to slowest speed
setting.
4. Proceed mowing slowly. If grass is very dense,
lower each rear wheel latch one notch lower than the
front wheel latches to improve recycling performance.
NOTE: The recycling cover should remain on the
machine at all times, unless alternate discharge
operations are desired, such as side discharging or
bagging.
TO REMOVE RECYCLING COVER:
Remove knob nuts and internal/external tooth lock
washers securing recycling cover to mower deck.
Remove cover. See Figure 2.12.
FIGURE 2.12
1.2”
LATCH
POSITIONS
CUTTING HEIGHT SETTINGS
LOWEST CUTTING
HEIGHT
1
LATCH (IN
NOTCH # 4)
HIGHEST
CUTTING
HEIGHT
2
3
4
5
6
7
1
2
3
4
5
6
7
LOWEST
CUTTING
HEIGHT
HIGHEST
CUTTING
HEIGHT
LATCH (IN
NOTCH # 4)
FRONT
WHEEL
(EXCEPT
SPV21S)
REAR WHEEL
(SPV21S FRONT
WHEEL SIMILAR)
4.2”
EACH NOTCH RAISES CUT 0.5”
REMOVE KNOB NUTS
AND LOCK WASHERS
