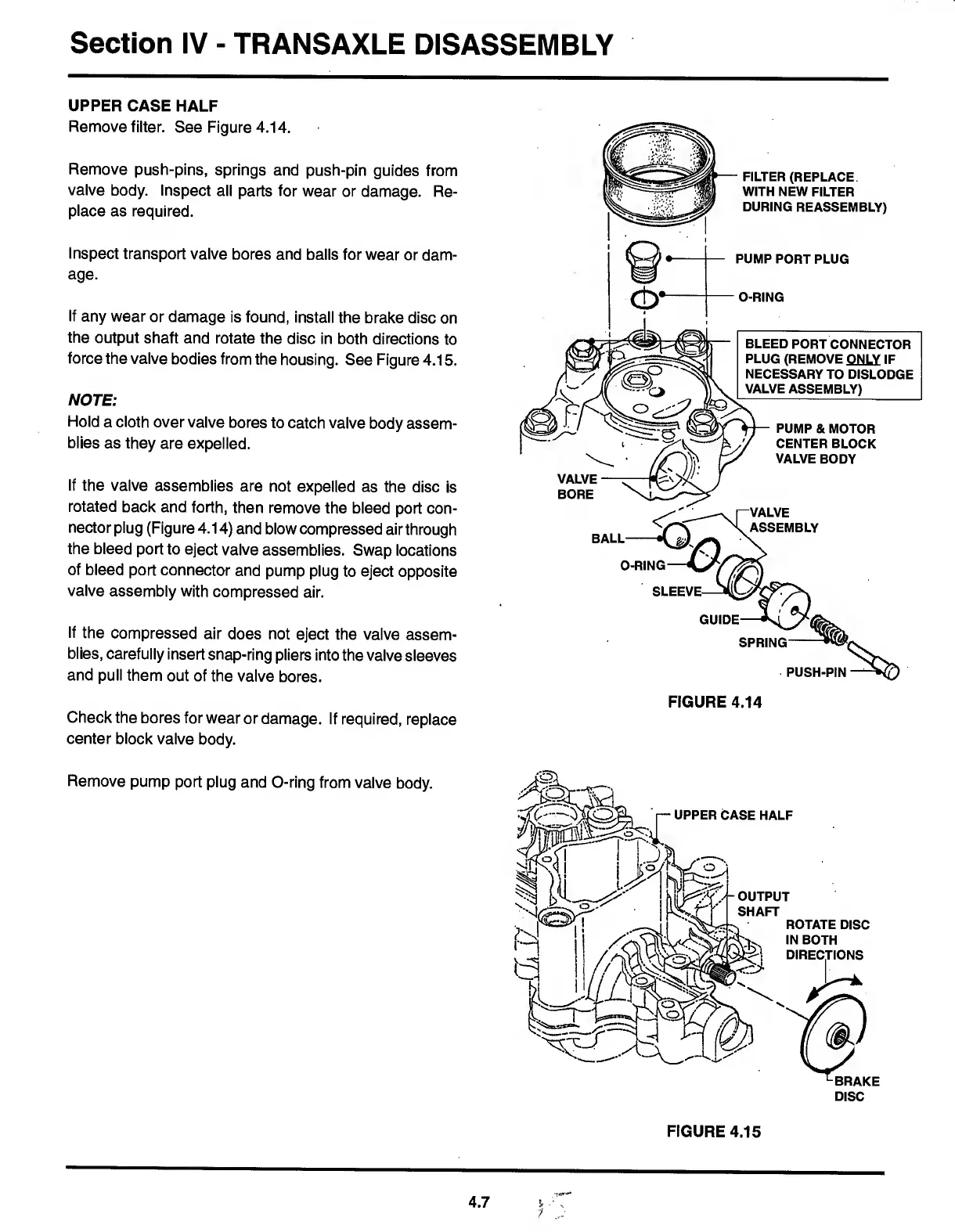

Section IV - TRANSAXLE DISASSEMBLY
UPPER CASE HALF
Remove filter. See Figure 4.14.
Remove push-pins, springs and push-pin guides from
valve body. Inspect all parts for wear or damage. Re¬
place as required.
Inspect transport valve bores and balls for wear or dam¬
age.
If any wear or damage is found, install the brake disc on
the output shaft and rotate the disc in both directions to
force the valve bodies from the housing. See Figure 4.15.
NOTE:
Hold a cloth over valve bores to catch valve body assem¬
blies as they are expelled.
If the valve assemblies are not expelled as the disc is
rotated back and forth, then remove the bleed port con¬
nector plug (Figure 4.14) and blow compressed air through
the bleed port to eject valve assemblies. Swap locations
of bleed port connector and pump plug to eject opposite
valve assembly with compressed air.
If the compressed air does not eject the valve assem¬
blies, carefully insert snap-ring pliers into the valve sleeves
and pull them out of the valve bores.
Check the bores for wear or damage. If required, replace
center block valve body.
Remove pump port plug and 0-ring from valve body.
DISC
FIGURE 4.15
