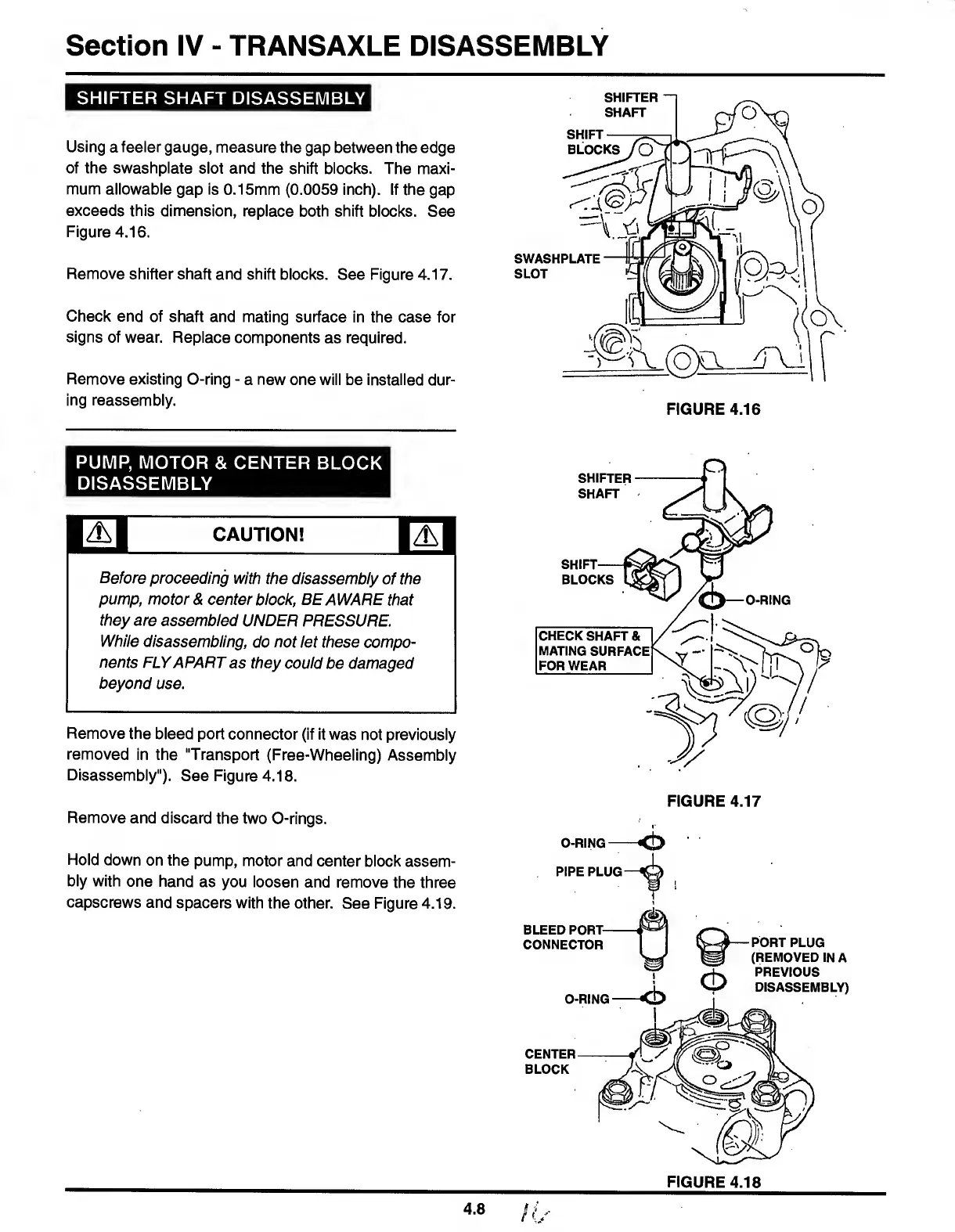

Section IV - TRANSAXLE DISASSEMBLY
SHIFTER SHAFT DISASSEMBLY
Using a feeler gauge, measure the gap between the edge
of the swashplate slot and the shift blocks. The maxi¬
mum allowable gap is 0.15mm (0.0059 inch). If the gap
exceeds this dimension, replace both shift blocks. See
Figure 4.16.
Remove shifter shaft and shift blocks. See Figure 4.17.
Check end of shaft and mating surface in the case for
signs of wear. Replace components as required.
Remove existing 0-ring - a new one will be installed dur¬
ing reassembly.
PUMP, MOTOR & CENTER BLOCK
DISASSEMBLY
hA| CAUTION! |a1
Before proceeding with the disassembly of the
pump, motor & center block, BE AWARE that
they are assembled UNDER PRESSURE.
While disassembling, do not let these compo¬
nents FLY APART as they could be damaged
beyond use.
Remove the bleed port connector (if it was not previously
removed in the "Transport (Free-Wheeling) Assembly
Disassembly"). See Figure 4.18.
Remove and discard the two 0-rings.
O-RING-
