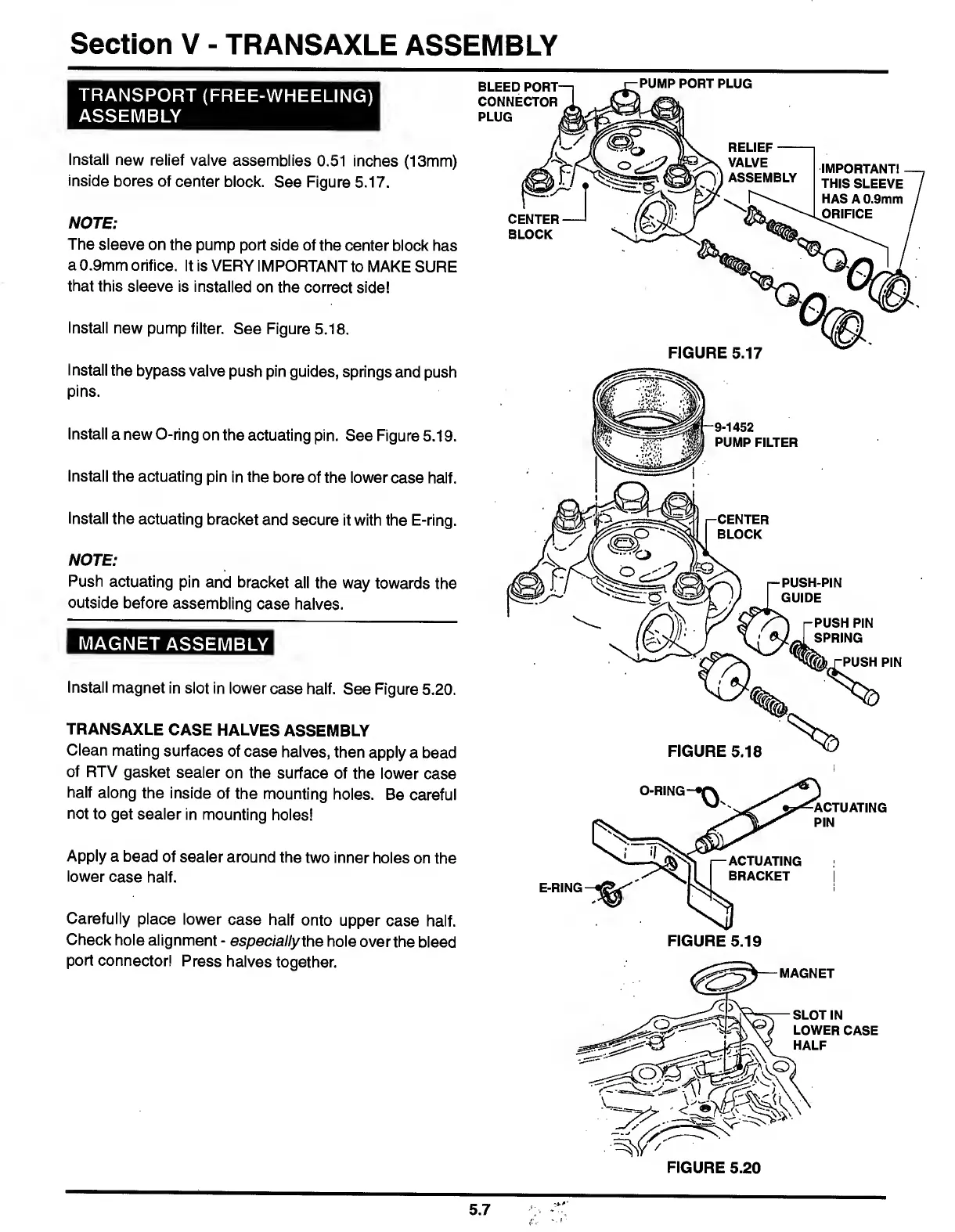

Section V - TRANSAXLE ASSEMBLY
TRANSPORT (FREE-WHEELING)
ASSEMBLY
Install new relief valve assemblies 0.51 inches (13mm)
inside bores of center biock. See Figure 5.17.
NOTE:
The sleeve on the pump port side of the center block has
a 0.9mm orifice. It is VERY IMPORTANT to MAKE SURE
that this sieeve is instalied on the correct side!
Install new pump filter. See Figure 5.18.
Install the bypass valve push pin guides, springs and push
pins.
Install a new O-ring on the actuating pin. See Figure 5.19.
Instaii the actuating pin in the bore of the lower case half.
Install the actuating bracket and secure it with the E-ring.
NOTE:
Push actuating pin and bracket all the way towards the
outside before assembiing case halves.
MAGNET ASSEMBLY
Install magnet in siot in iower case haif. See Figure 5.20.
TRANSAXLE CASE HALVES ASSEMBLY
Ciean mating surfaces of case halves, then apply a bead
of RTV gasket sealer on the surface of the lower case
half along the inside of the mounting holes. Be careful
not to get sealer in mounting holes!
Apply a bead of sealer around the two inner holes on the
lower case half.
Carefully place lower case half onto upper case half.
Check hole alignment - especially the hole over the bleed
port connector! Press halves together.
FIGURE 5.19
5.7
