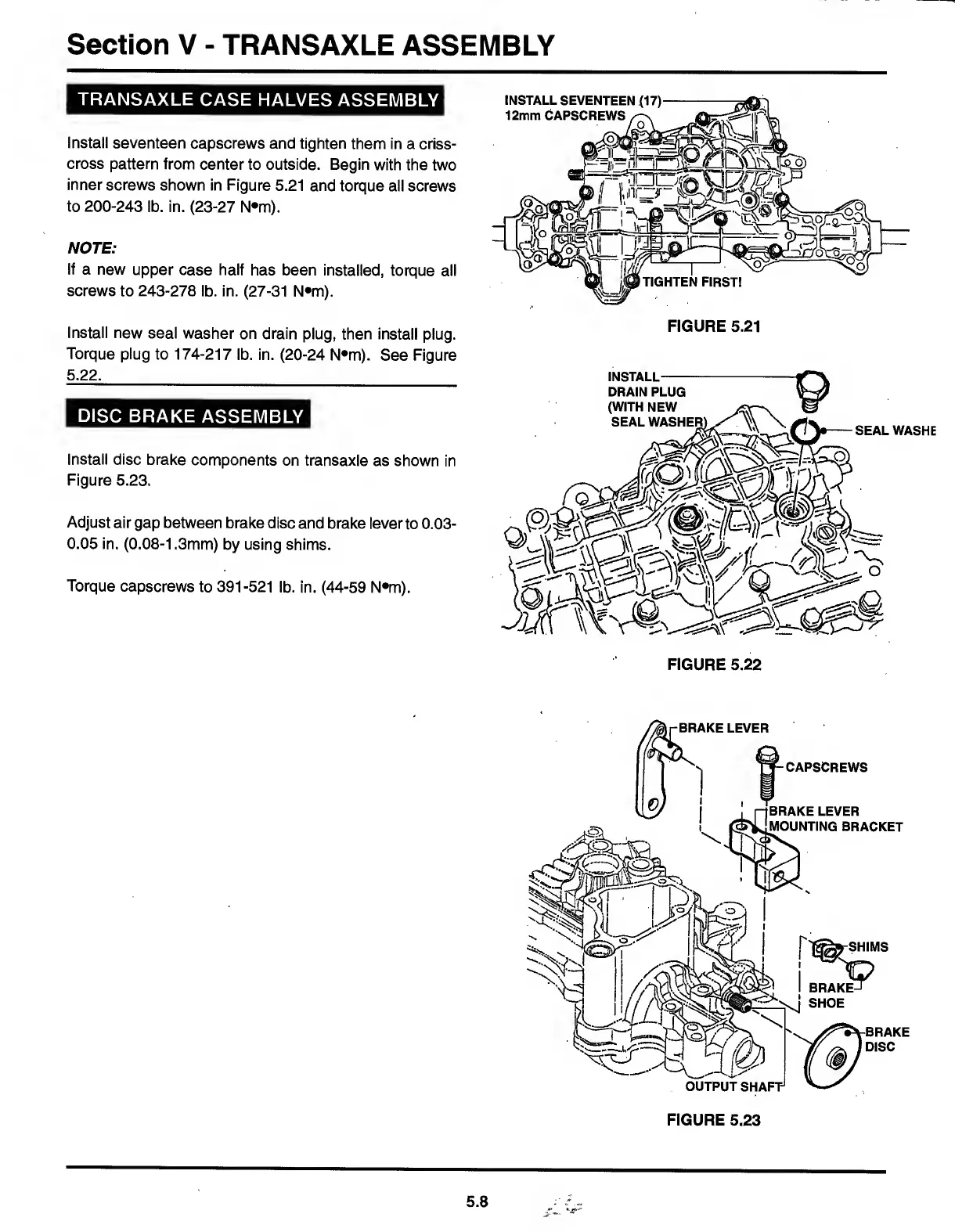

Section V - TRANSAXLE ASSEMBLY
TRANSAXLE CASE HALVES ASSEMBLY
Install seventeen capscrews and tighten them in a criss¬
cross pattern from center to outside. Begin with the two
inner screws shown in Figure 5.21 and torque ali screws
to 200-243 lb. in. (23-27 N*m).
NOTE:
If a new upper case half has been installed, torque all
screws to 243-278 lb. in. (27-31 N*m).
Instali new seal washer on drain piug, then instail piug.
Torque piug to 174-217 ib. in. (20-24 N*m). See Figure
5.22.
DISC BRAKE ASSEMBLY
Install disc brake components on transaxie as shown in
Figure 5.23.
Adjust air gap between brake disc and brake ieverto 0.03-
0.05 in. (0.08-1.3mm) by using shims.
Torque capscrews to 391-521 Ib. in. (44-59 N*m).
FIGURE 5.22
5.8
