Snapper YT Series User Manual

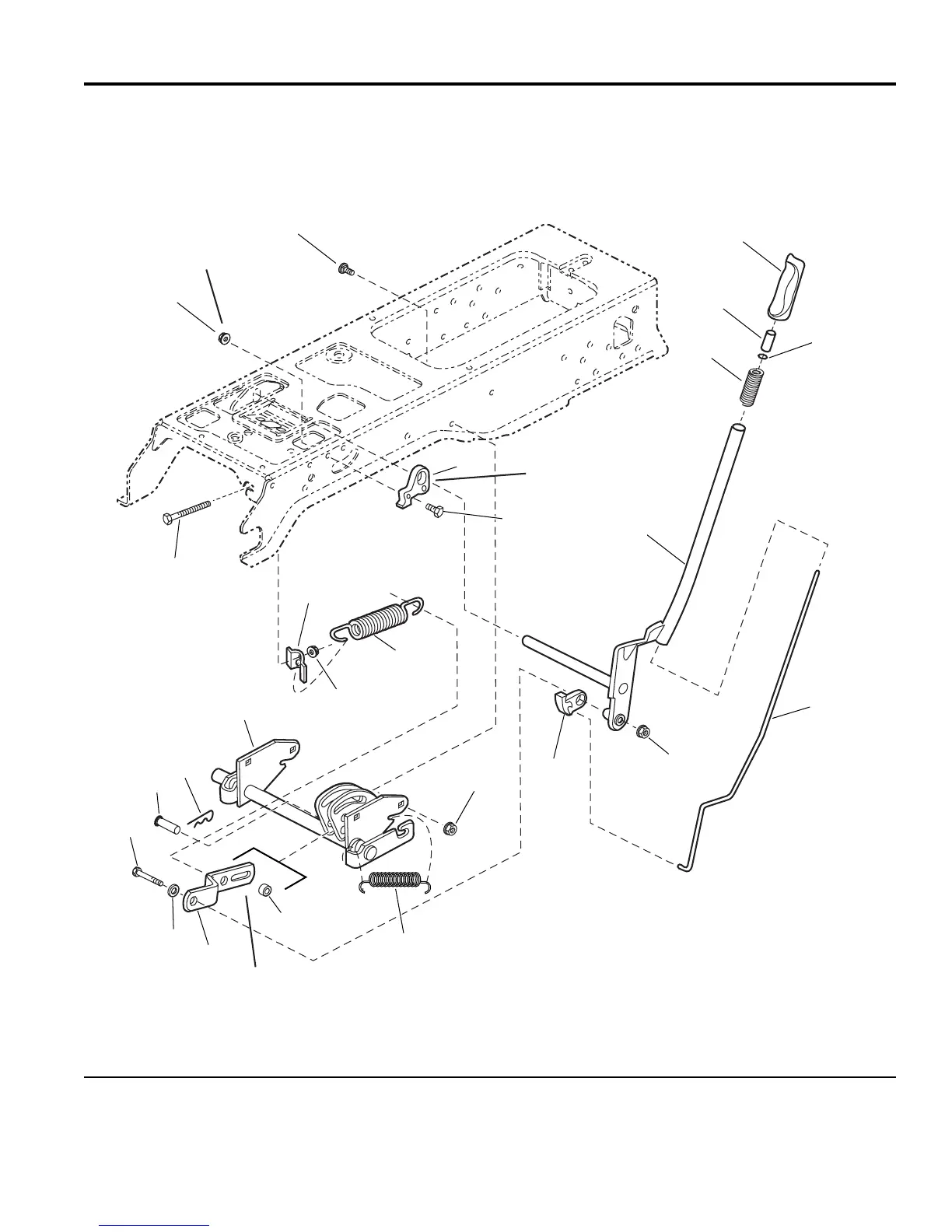

Lift Group - Manual Lift
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
23-28 ft. lbs.
(31-38 Nm)
Rotate clockwise
as far as possible
before tighting.
Assemble into
lower hole of Ref. Item 20.
11
19
17
21
12
20
16
18
13
22
23
24
1
5
8
2
7
4
6
3
9
10
1
14
15
985894
The above parts group applies to the following Mfg. Nos.:
2003
20
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694368 - YT1644
1694369 - YT1850
TP 400-3821-00-CQ-N
