SUPER CLASS-D SERIES AMPLIFIER
4 Owner’s Manual / Installation Guide
S1000.1D : 80A
S2000.2D : 80A x 2
S1000.4D : 80A
S2000.5D : 80A x 2
(3) Remote Turn-On Input : To Power Antenna output of car Stereo
This Amplifier is turned “ON” remotely when the vehicle’s stereo is turned “ON”
NOTE : IF YOUR RADIO DOES NOT HAVE A +12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, THE “RMT” TERMINAL
ON THE AMPLIFIER CAN BE CONNECTED TO VEHICLE’S ACCESSORY CIRCUIT THAT IS LIVE WHEN THE KEY IS “ON”.
S2000.5D
FUSE
POWER INPUT
GND
REM
BATT +12V
S1000.4D
FUSE
POWER INPUT
GND
REM
BATT +12V
S2000.2D
FUSE
POWER INPUT
GND
REM BATT +12V
S1000.1D
FUSE
POWER INPUT
GND
REM BATT +12V
Fuse
(2)
Near Battery
(3)
Remote Turm-ON is
connected to Radio's power
antenna lead or a switchable +12V
(1)
MODEL : S2000.5DMODEL : S1000.4D
M
ODEL : S2000.2DMODEL : S1000.1D
-
+
BATTERY
Fuse
(2)
Near Battery
(3)
Remote Turm-ON is
connected to Radio's power
antenna lead or a switchable +12V
(1)
-
+
BATTERY
Fuse
(2)
Near Battery
(3)
Remote Turm-ON is
connected to Radio's power
antenna lead or a switchable +12V
(1)
-
+
BATTERY
Fuse
(2)
Near Battery
(3)
Remote Turm-ON is
connected to Radio's power
antenna lead or a switchable +12V
(1)
-
+
BATTERY

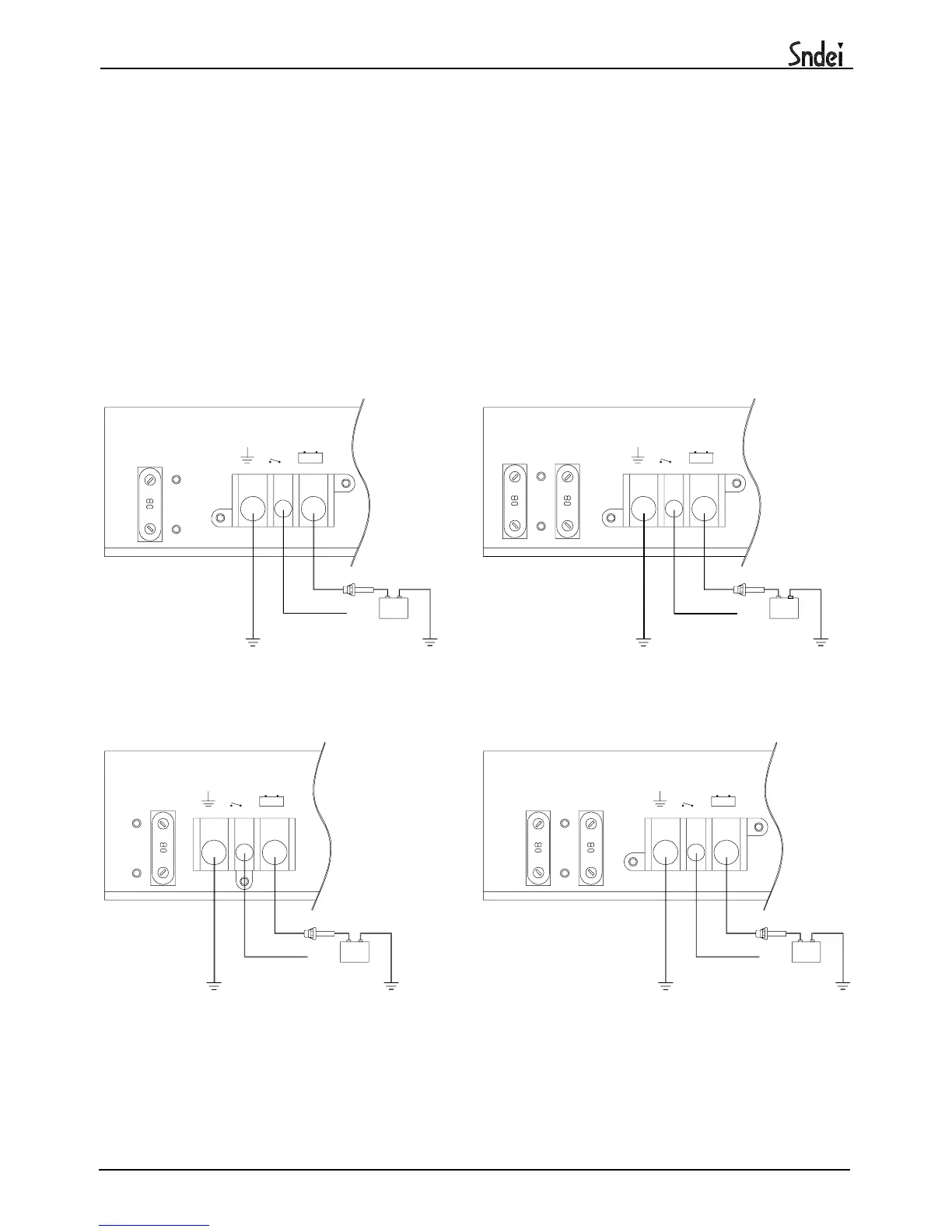

FIG.1
To Next Page
