Sndei S1000.1D - Connecting the Speakers

SUPER CLASS-D SERIES AMPLIFIER
8 Owner’s Manual / Installation Guide

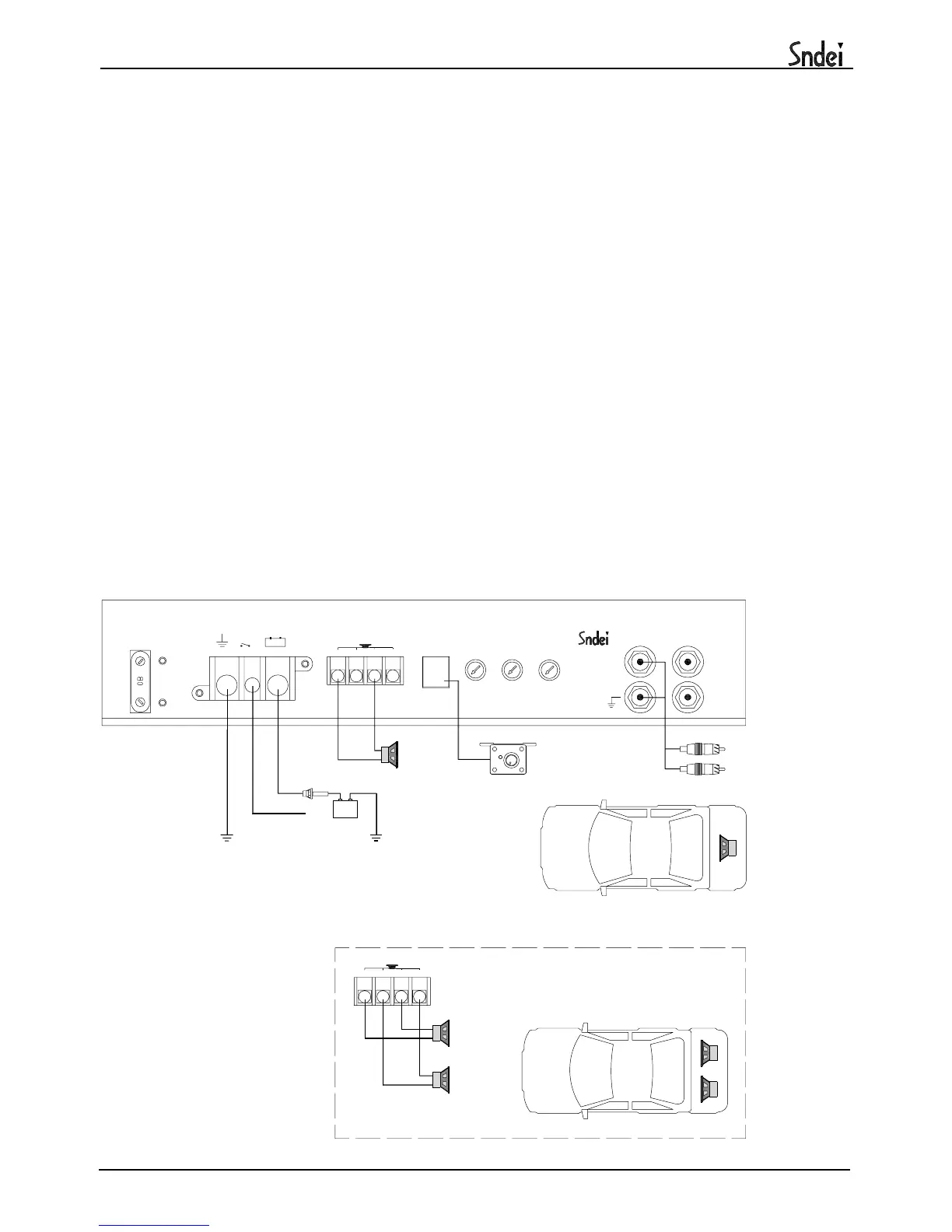

CONNECTING THE SPEAKERS
MODEL : S1000.1D
Basic application
These sub bass amplifiers can be used any of the
bi-amplification systems described in this manual,
replacing the 2 channel amplifiers as per the illustrations.
Interconnect cable checklist :
Connect the inputs to a suitable source, e.g. a head
unit with good quality RCA cables. Connect the LINE
OUT to the inputs of the system highs amplifier.
Use at least #12 gauge speaker wiring. The amps
have dual speaker terminals, simplifying the hookup
of multiple speakers.
Crossover frequency control checklist:
LOW PASS : 40Hz to 400Hz
BASS EQ : 0 to +18dB
Level control checklist :
- Refer to the section Setting up systems
after installation for best performance.
Minimum final loudspeaker
impedance : 2-Ohm.
S1000.1D
FUSE
POWER INPUT
GND REM BATT +12V
+-
SPEAKER OUTPUT
- +
REMOTE
BASS EQ LEVEL
0dB 18dB
6V 0 .2
LOW PASS
40Hz 400Hz
LINE INPUT
CH1
CH2
CH1
CH2
HIGH INPUT
+- - +
+
-
+
-
Bass Boost
Power
0dB 18dB
PARALLEL MONO SUBWOOFERS
4 - OHMS EACH MINIMUM
SUB WOOFER
2 - 8 Ohms
+
-
SUB WOOFER
4 - 8 Ohms
SUB WOOFER
4 - 8 Ohms
Fuse
(2)
Near Battery
(3)
Remote Turm-ON is
connected to Radio's power
antenna lead or a switchable +12V
(1)
-
+
BATTERY
