SUPER CLASS-D SERIES AMPLIFIER

Owner’s Manual / Installation Guide 9

MODEL : S2000.2D

FULL RANGE STEREO

This is the most basic application for the 2 channel amplifiers.

1. Interconnect cable checklist :

Connect the LINE INPUTS to the Radio/CD with good quality RCA cables.

2. Crossover Switch : The X-OVER switch must be in the FULL position.

3. Crossover frequency control checklist : N/A for full range operation.

4. Line Level : Refer to the section Setting up systems after installation for best Performance.

NOTE : Minimum final loudspeaker impedances : 2-8 Ohms stereo mode or 4-8 Ohms mono mode.

This amplifier will not do 1-Ohm stereo or 2/1-Ohm mono operation.

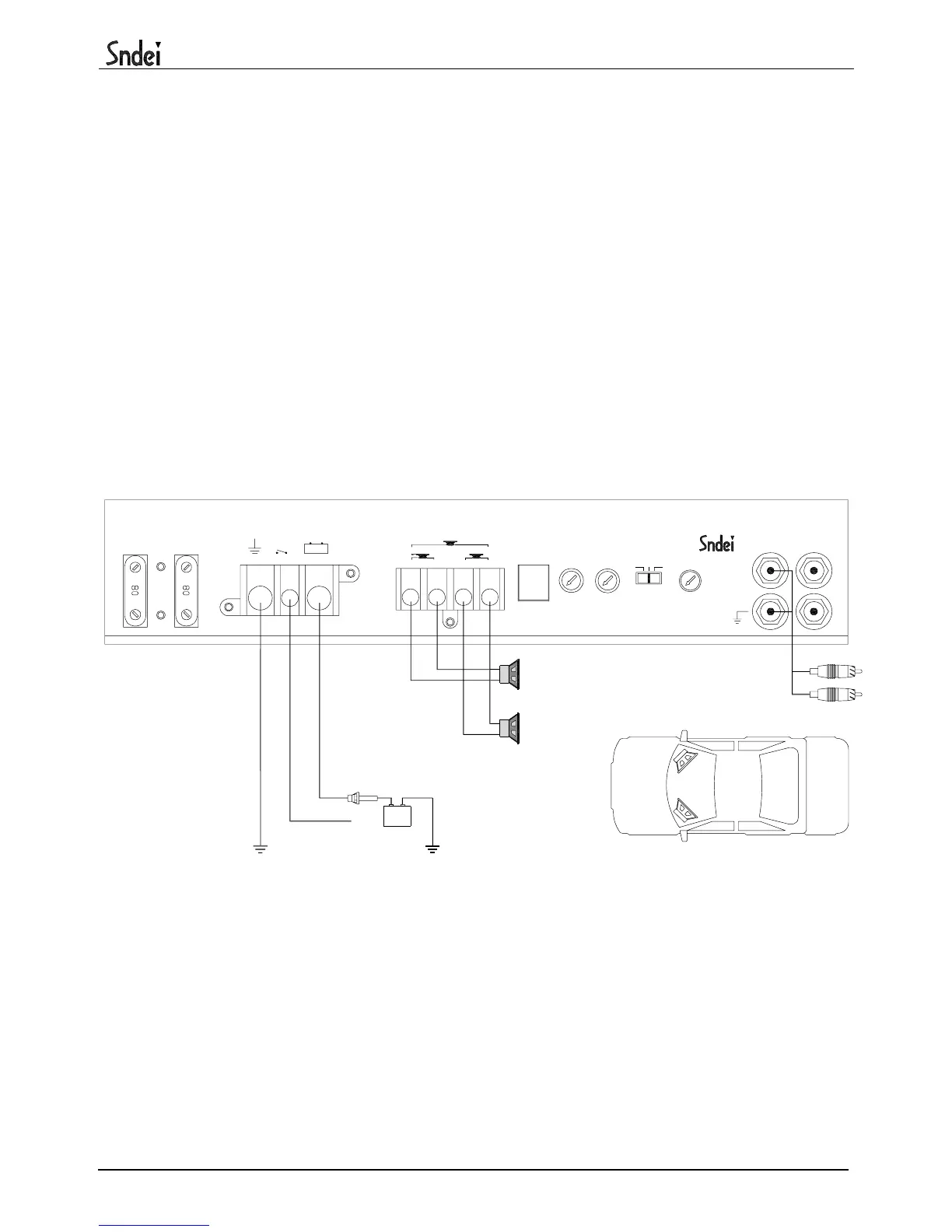

S2000.2D

FUSE

POWER INPUT

GND REM BATT +12V

SPEAKER OUTPUT

CH1

MONO

-+CH2-+

REMOTE

LEVEL LOW PASS

6V 0.2 50Hz

X-OVER

BP FULL HI

HI PASS

50Hz 4K4K

LINE INPUT

CH1 CH1

CH2 CH2

HIGH INPUT

2 - 8 Ohms

FULL RANGE SPEAKERS

Fuse

(2)

Near Battery

(3)

Remote Turm-ON is

connected to Radio's power

antenna lead or a switchable +12V

(1)

BATTERY
