See Figure 3 for all controls and features
locations.
ENGINE KEY AND RUN / STOP
SWITCH
See Figure 4.
The removable engine key and the run / stop
switch are used together to start the engine.
The engine key must be inserted and in the
run position for engine to start.
PRIMER BULB
Adds fuel to engine for easier start on cold
engines.
FUEL VALVE
See Figure 5.
Controls fuel flow to the engine.
ELECTRIC START BUTTON
Starts a correctly choked engine.
CHOKE CONTROL KNOB
See Figure 6.
Controls airflow to the engine.
SPEED SELECTOR LEVER
See Figure 7.
Controls the speed of forward and reverse
travel.
AUGER
Rotates to bring snow into impeller.
IMPELLER
Throws snow out discharge chute.
SHEAR BOLT
Secures auger to shaft and helps prevent
gearcase and gearcase component damage.
ATTACHMENT CLUTCH LEVER
(RIGHT SIDE)
See Figure 8.
Controls auger / impeller movement.
WARNING: Read and
understand the Safety section
before proceeding.

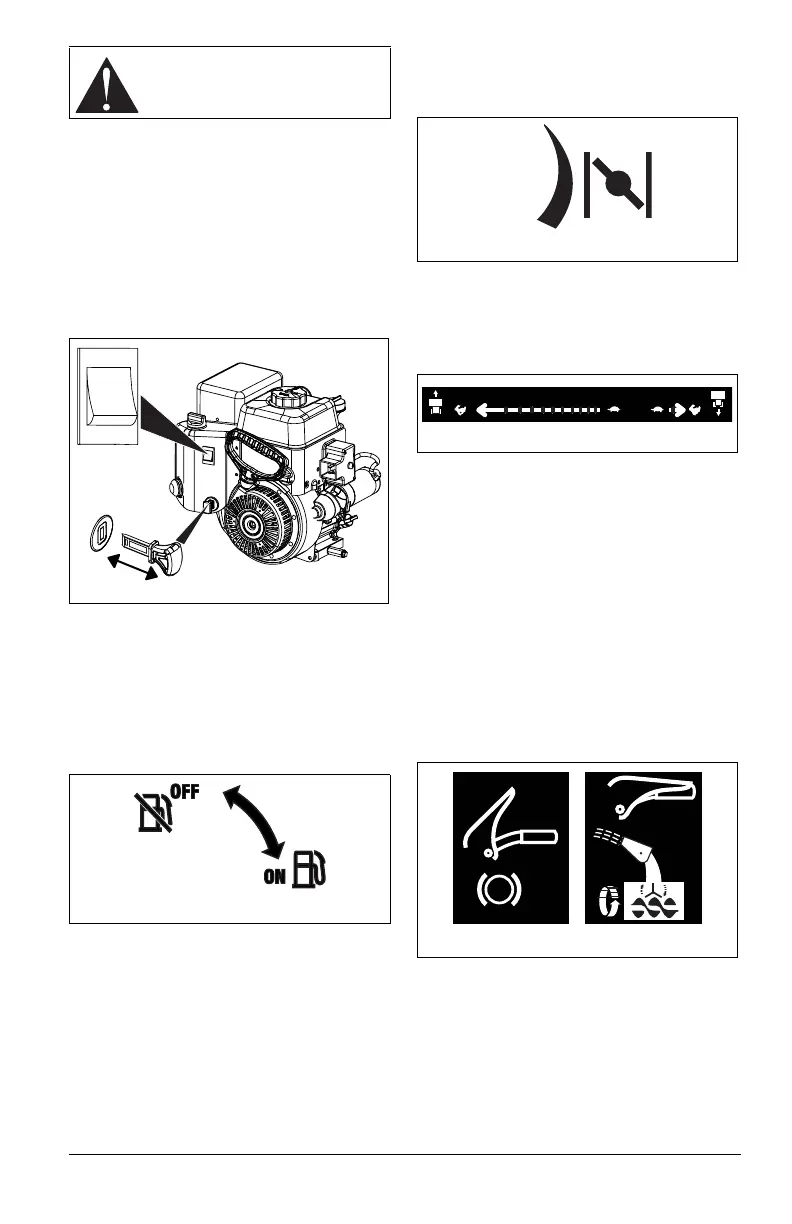

Figure 4
RUN
STOP
Figure 5
Figure 6
Off
On
Figure 7
Figure 8
