EN - 14

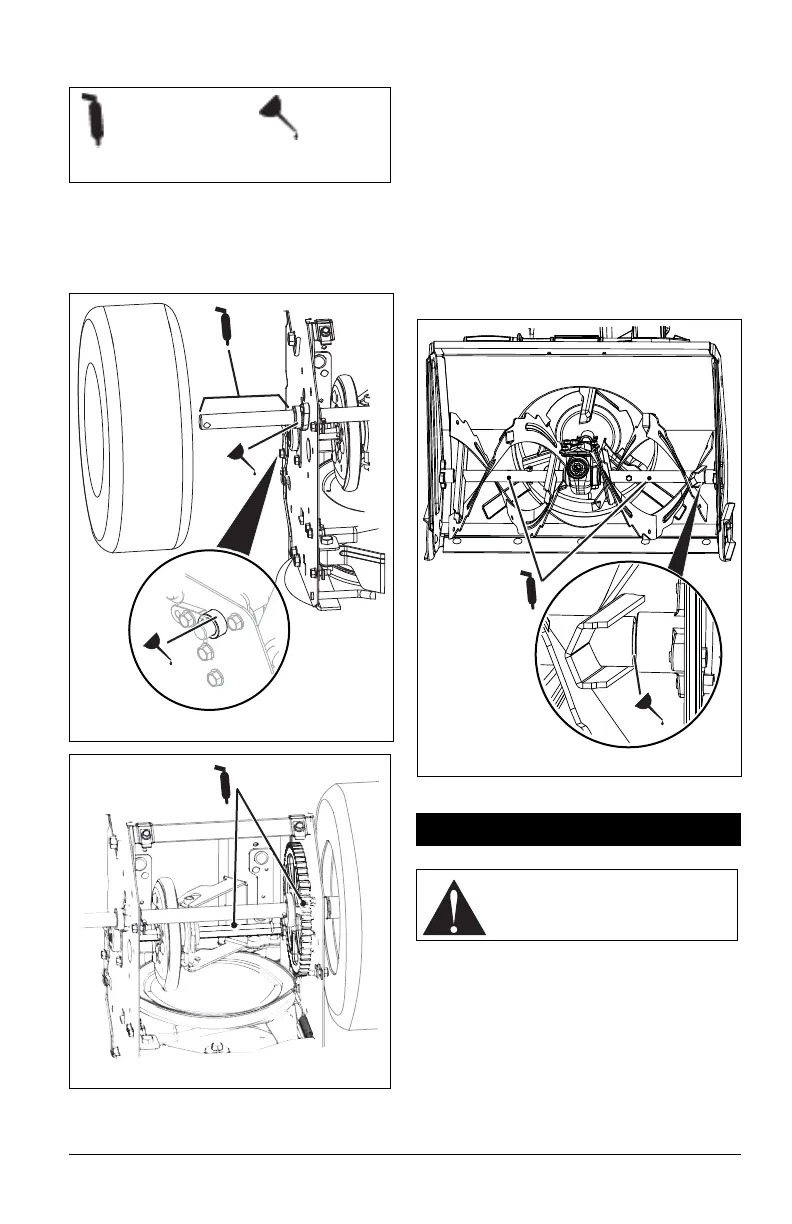

Use the following key for all lubrication
procedures.
Traction Drive
1. Place unit in service position (see
Figure 13) and remove bottom cover.
2. Lubricate as shown in Figures 15 and 16.
3. Reinstall bottom cover and return unit to
operating position.
Auger Shaft
See Figure 17.
1. Remove shear bolt nuts and bolts.
2. Apply grease at the grease zerks.
3. Hand rotate auger on auger shaft.
4. Align shear bolt holes in auger with shear
bolt holes in shaft.
5. Insert bolts through holes.
6. Secure bolts with nuts.
7. Tighten bolts to 7.9 – 16.5 N•m (5.8 –
12.2 lbf-ft). If a torque wrench is
unavailable, tighten bolts until they no
longer spin freely. DO NOT overtighten.
ADJUST SCRAPER BLADE
The auger housing may be damaged if blade
wears down too much.
To adjust blade:
1. Tip unit back onto handlebar, support
auger housing and loosen nuts retaining
blade.
2. Lower blade and tighten nuts.
* = Lubricate on Both Sides
Grease
Oil
ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the Safety
section before proceeding.
