Controls and Indicators
Page 5 Operation Manual
C ONTROLS AND I NDICATORS
The operator shall know the location of each control and indicator and have a thorough knowledge of the
function and operation of each before attempting to operate the unit.

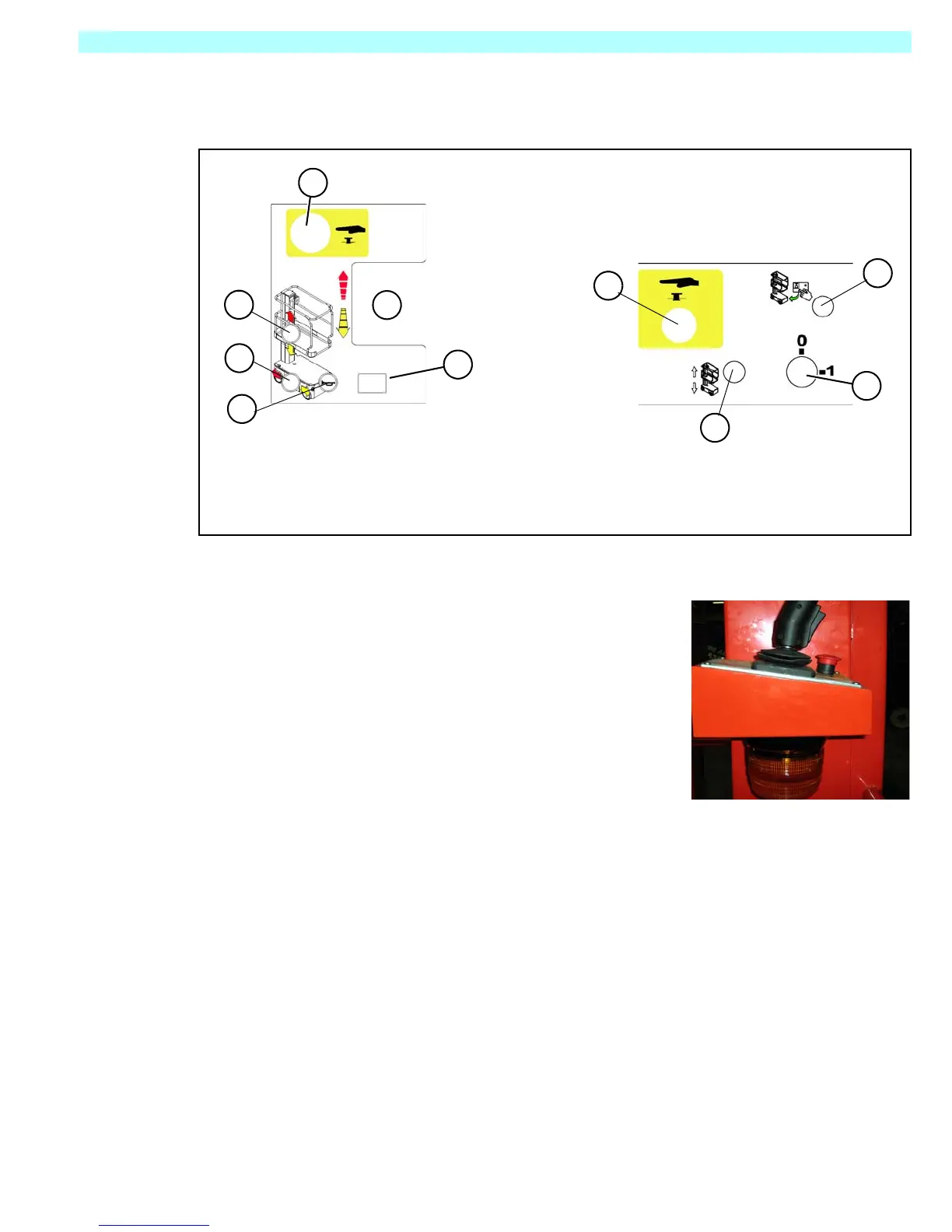

Figure 2: Controls and Indicators
Platform Controller
Chassis Controller (Right Side)
Side View
Top View
1. Joystick
2. Emergency Stop
3. Lift Button
4. Drive Button
5. Emergency Stop (chassis)
6. Toggle switch (chassis)
7. Enable button
8. Keyswitch
9. Horn Button
10. Display
1
2
3
4
5
6
7
8
9
10
W ARNING B EACON
Figure 2A: Flashing Warning Beacon
P RE -O PERATION S AFETY I NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Open the Chassis Door and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Open the Chassis Door and remove
the reservoir cap, fluid should be visible on the dipstick. Add recommended hydraulic fluid if necessary.
See “Specifications” on page 14.
3. Check that the fluid level in the batteries is correct. See “Battery Maintenance” on page 11.
4. Verify that the batteries are charged.
5. Check that the A.C. extension cord has been disconnected from the chassis outlet.
6. Check that all guardrails are in place and all fasteners are properly tightened.
7. Inspect the machine thoroughly for cracked welds and structural damage, loose or missing hardware,
hydraulic leaks, damaged control cable and loose wire connections.
The warning beacon is located beneath the upper control panel.
The beacon flashes when the machine is switched on and capable
of powered motion.
