SnowBlaster 56663 - Discharge Chute Assembly; Lower and Upper Chute Crank Assembly

#56663 SNOW THROWER OPERATOR’S MANUAL 10

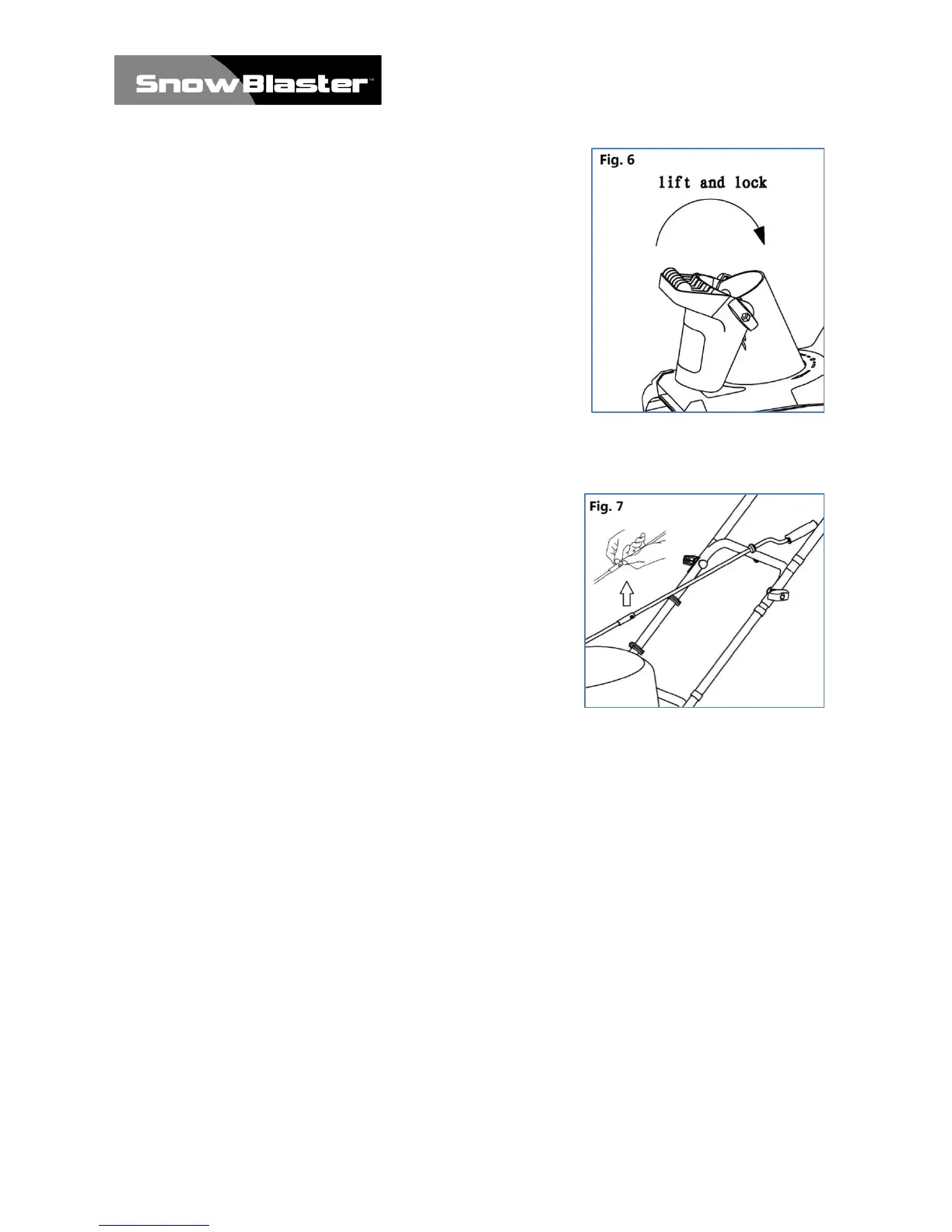

Discharge Chute Assembly (Fig. 6)
Lift the Chute Deflector so that it snaps and locks securely
onto the discharge chute.
Raise or lower the chute deflector to the desired height of the
snow stream and tighten the chute deflector knobs.
Note: Do not over tighten the chute deflector knobs.
Lower and Upper Chute Crank Assembly (Fig. 7)
Locate the upper chute crank in the parts bag. Loosen the
screw and nut located on the lower chute crank with
screwdriver and wrench.
Note: You may be able to unfasten the screw and nut by
hand.
Slide the upper chute into the lower chute crank, aligning the
screw holes. Tighten the screw into the aligning holes using
a screwdriver.
Tighten the nut with a wrench.
Note: If the center hole is not lining up correctly, you have the middle frame on backwards.
The hole and grommet of the eye bolt should face up.
