Unpacking
CartonContents:
• Electric snow thrower with middle frame and upper frame
• Upper crank rod
• Lower crank rod
• Chute clean-out tool with 2 clips (assembled)
• Extension cord restraint hook
• Cable clips (2, assembled)
• Handle knobs and bolts (4 sets)
• Manual with registration card
1. Carefully remove the electric snow thrower and check to
see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new electric snow
thrower. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils,
or small parts. These items can be swallowed and pose a
suocation risk!
Assembly
Getting Started
1. Remove the snow thrower and all other items from
the box.
2. Determine the left and right hand side of the snow thrower
by standing in the normal operating position.
3. Check all items for shipping damage. If damage is found
or suspected or if any of the parts are missing, do not
assemble. Instead, promptly inform the dealer where you
bought the snow thrower or contact the Snow Joe
®
+
Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563) for assistance.
4. Check to make sure the upper chute crank is included.
Upper, Middle + Lower Frame Assembly
1. For easy assembly, the unit comes complete with
most parts already connected. To complete the handle
assembly, simply pull the middle frame back and pull the
upper frame up (Fig. 1).
2. Secure the connection of the lower frame to the middle
frame by fastening the rst set of joint xing T-bolts and
knobs on each side (Fig. 2).
3. Secure the connection of the middle frame to the upper
frame by fastening the second set of joint xing T-bolts
and knobs on each side (Fig. 3).
m CAUTION m
Inspect wiring, which, if damaged during shipping,
may cause serious bodily injury during equipment use.
If any damage is seen or suspected, do not assemble.
Instead, contact the Snow Joe
®
+ Sun Joe
®
customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
Handle with care during assembly so that electrical
wiring does not become damaged.

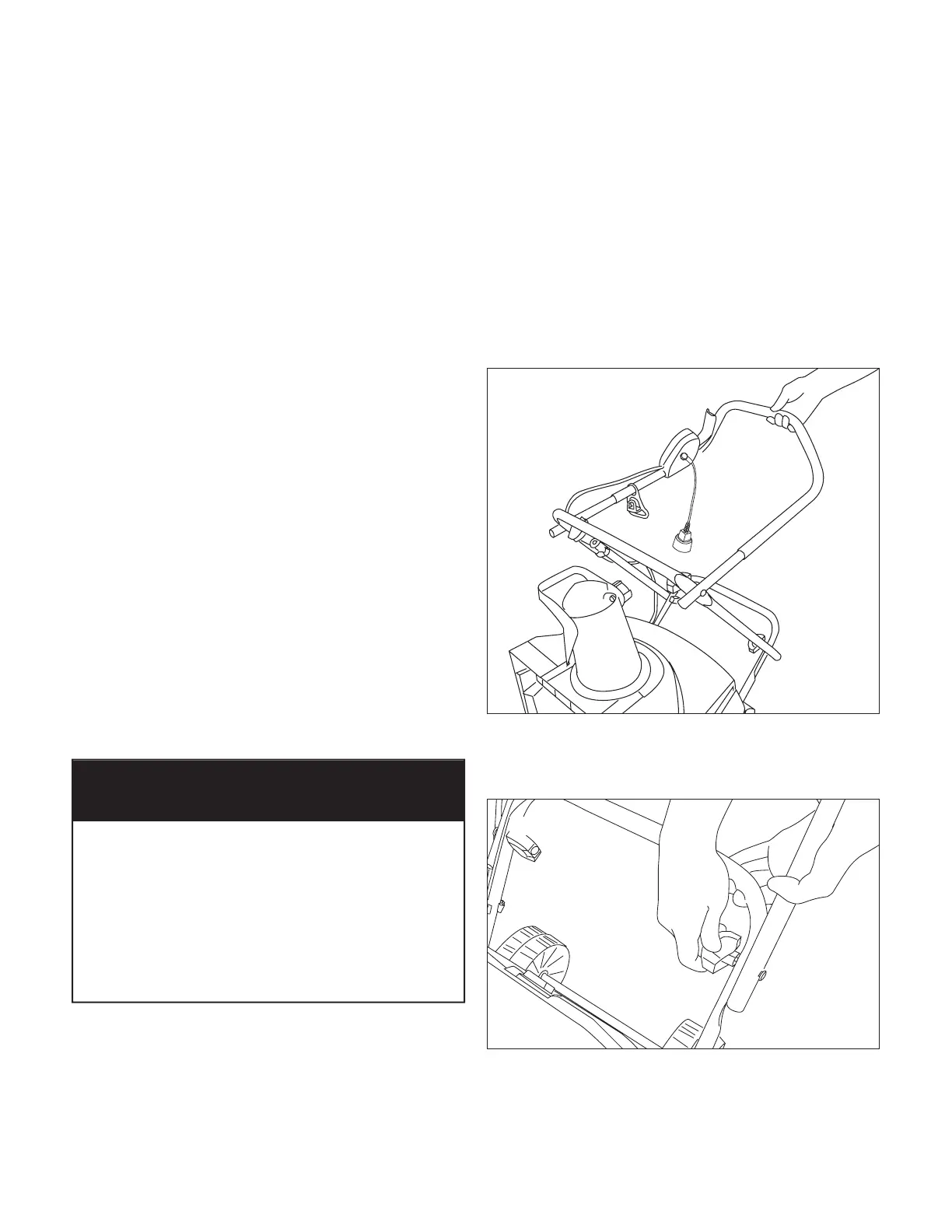

Fig. 1
Fig. 2
