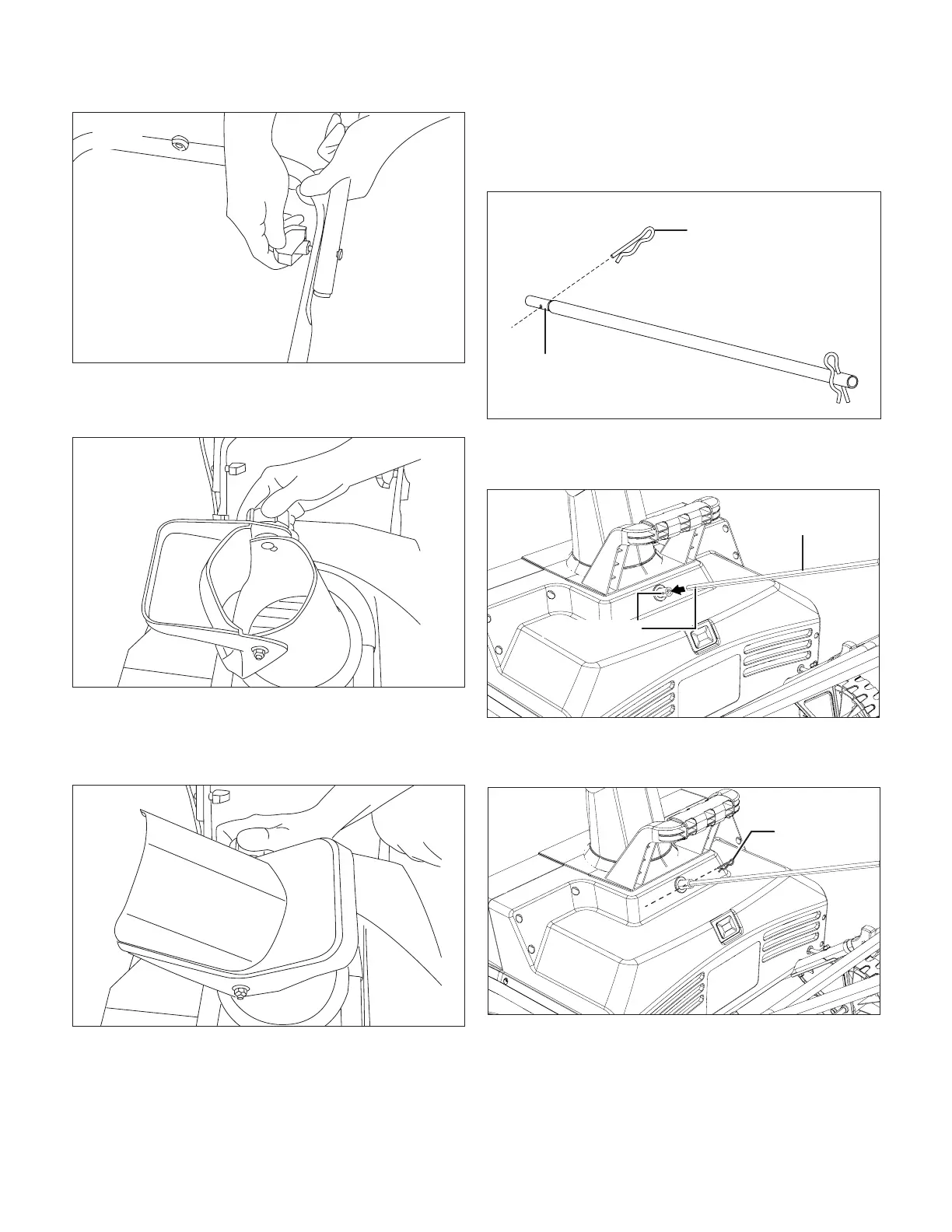

Fig. 3
Discharge Chute Assembly
1. Loosen the knob to lift the chute deector (Fig. 4).
3. Raise or lower the chute deector to the desired height of
the snow stream and tighten the knob (Fig. 5).
NOTE:Do not overtighten the knob.
Fig. 5
Chute Crank Assembly
1. Remove the hitch pin from the female end of the lower
chute crank (Fig. 6).
2. Install the lower crank rod by inserting it into the opening
at the back of the housing and aligning the holes (Fig. 7).
3. Secure the lower chute crank in place with the hitch pin
(Fig. 8).
Fig. 4
Fig. 6
HitchPin
Lower chute crank
(female end)
Fig. 7
Lower chute crank
Align the holes
Fig. 8
Hitchpin
