Snugger SS5000 - Page 6

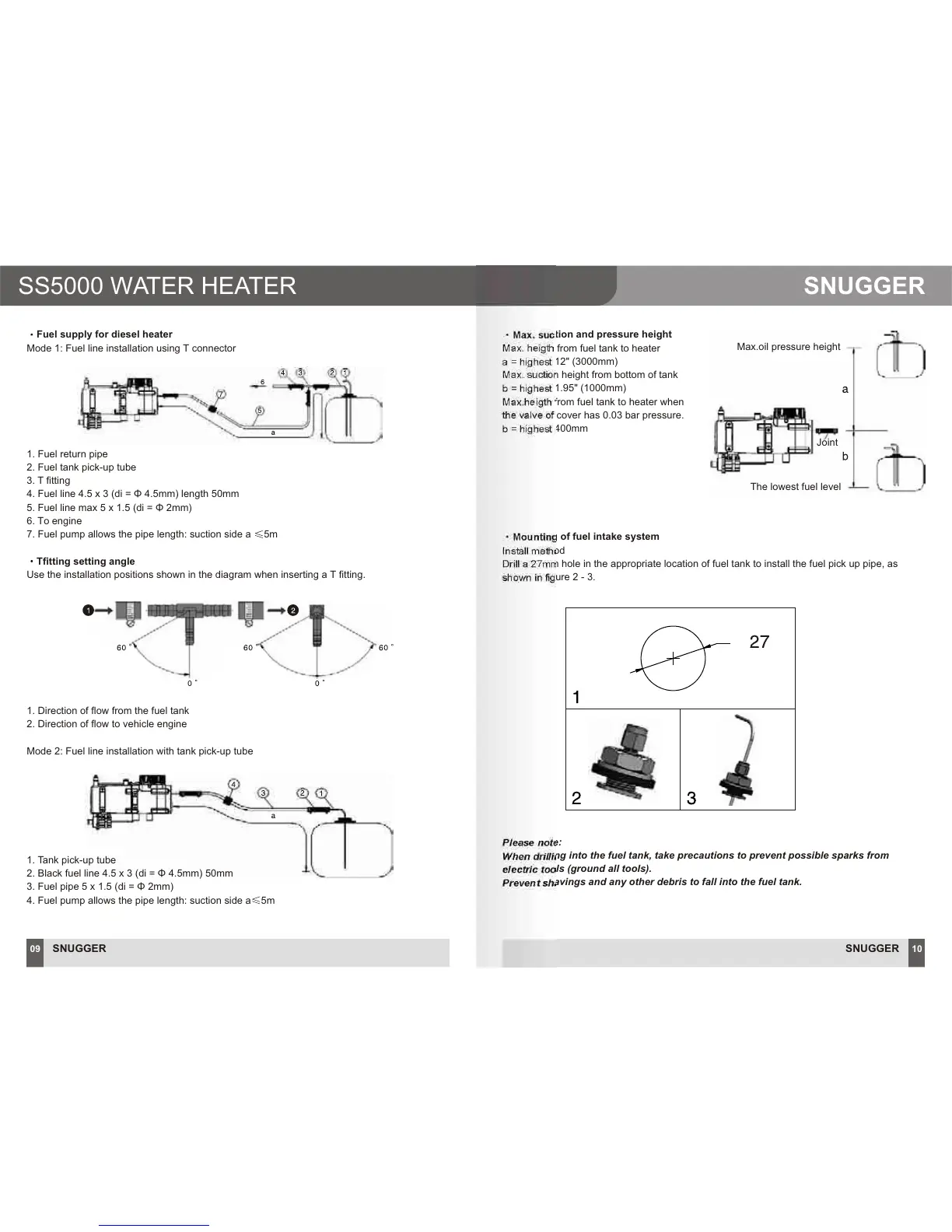

Fuel supply for diesel heater
Mode 1: Fuel line installation using T connector
1. Fuel return pipe
2. Fuel tank pick-up tube
3. T fitting
4. Fuel line 4.5 x 3 (di = .5mm) length 50mm
5. Fuel line max 5 x 1.5 (di = 2mm)
6. To engine
7. Fuel pump allows the pipe length: suction side a 5m
Tfitting setting angle
Use the installation positions shown in the diagram when inserting a T fitting.
Ö4
Ö
1. Direction of flow from the fuel tank
2. Direction of flow to vehicle engine
Mode 2: Fuel line installation with tank pick-up tube
1. Tank pick-up tube
2. Black fuel line 4.5 x 3 (di = 4.5mm) 50mm
3. Fuel pipe 5 x 1.5 (di = 2mm)
4. Fuel pump allows the pipe length: suction side a 5m
Ö
Ö
Max. suction and pressure height
Max. heigth from fuel tank to heater
a = highest 12" (3000mm)
Max. suction height from bottom of tank
b = highest 1.95" (1000mm)
Max.heigth from fuel tank to heater when
the valve of cover has 0.03 bar pressure.
b = highest 400mm
Max.oil pressure height
The lowest fuel level
Mounting of fuel intake system
Install method
Drill a 27mm hole in the appropriate location of fuel tank to install the fuel pick up pipe, as
shown in figure 2 - 3.
Please note:
When drilling into the fuel tank, take precautions to prevent possible sparks from
electric tools (ground all tools).
Prevent shavings and any other debris to fall into the fuel tank.
Joint
SNUGGER
10
SNUGGER
09
SS5000 WATER HEATER
SNUGGER
Ö
