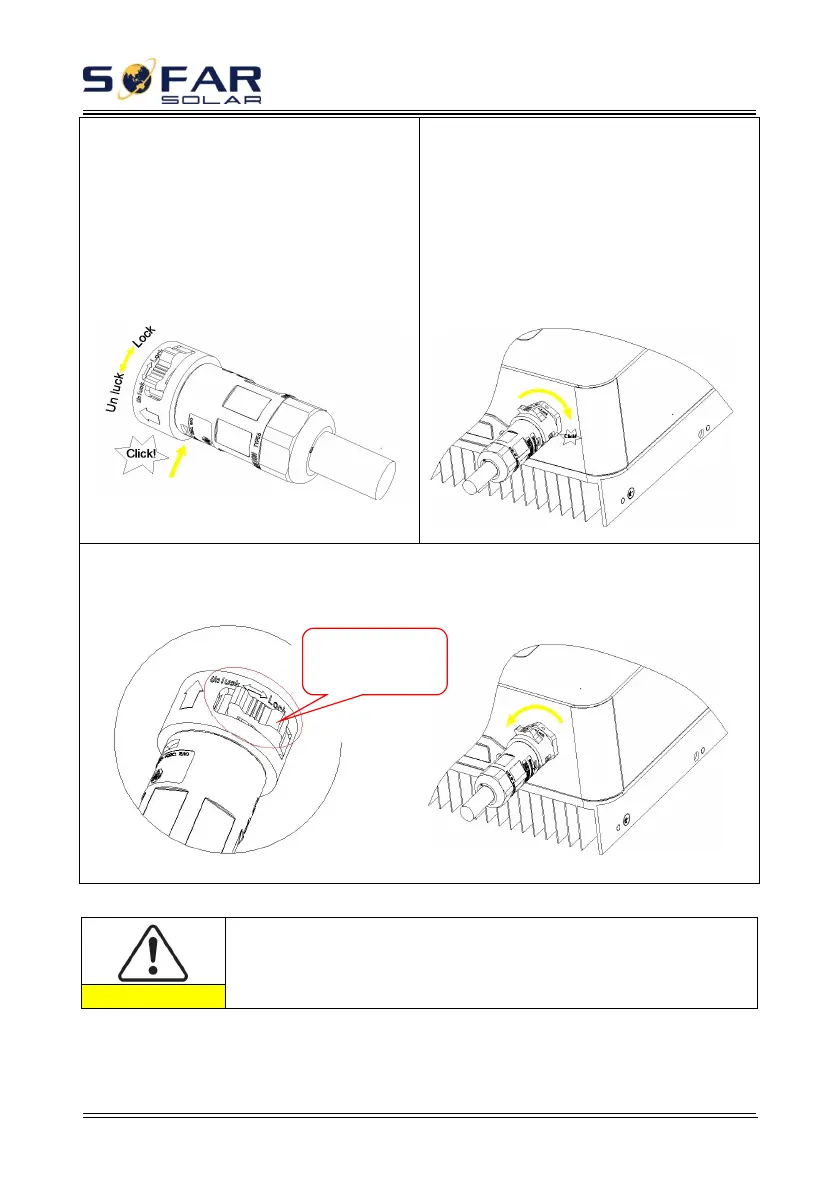

Step 4 Insert the AC connector and hear
"click", then tighten the waterproof nut at
the instantaneous value, as shown in the
figure below, to ensure that the cable is
firmly connected.
Figure 4-21
Step 5 Connect the connected AC
connector to the AC connector of the
inverter. Turn the ac connector knob to lock
until you hear a "click" and the clasp is in
place.
Figure 4-22
Removing the AC connector Hold the button to unlock and rotate the knob
counterclockwise to the unlock position, then pull out the AC connector. Figure 4-23
Make sure the grid is disconnected before removing the AC connector
