PSX Rackmount Power Supply - Installation and Operation Manual
Section 2 – Power and Network Connections
2.2 Remote Access via Ethernet
PSX Series power supplies with model numbers ending in
"N" may be accessed over the internet or local intranet via
the ethernet port on the back of the enclosure (Figures 5
and 6). Functionality varies by model type. This section only
gives basic information. See the PSX-NL manual for more
information.
Features available with the PSX-NL in a PSX rackmount
include monitoring and email reporting of voltage, bat-
tery status, AC and System Fault status and other pa-
rameters. Additionally, a periodic status report can be
emailed.
i The internal Netlink communication module must be
configured before connecting to a network.
See the PSX Netlink manual for more information.

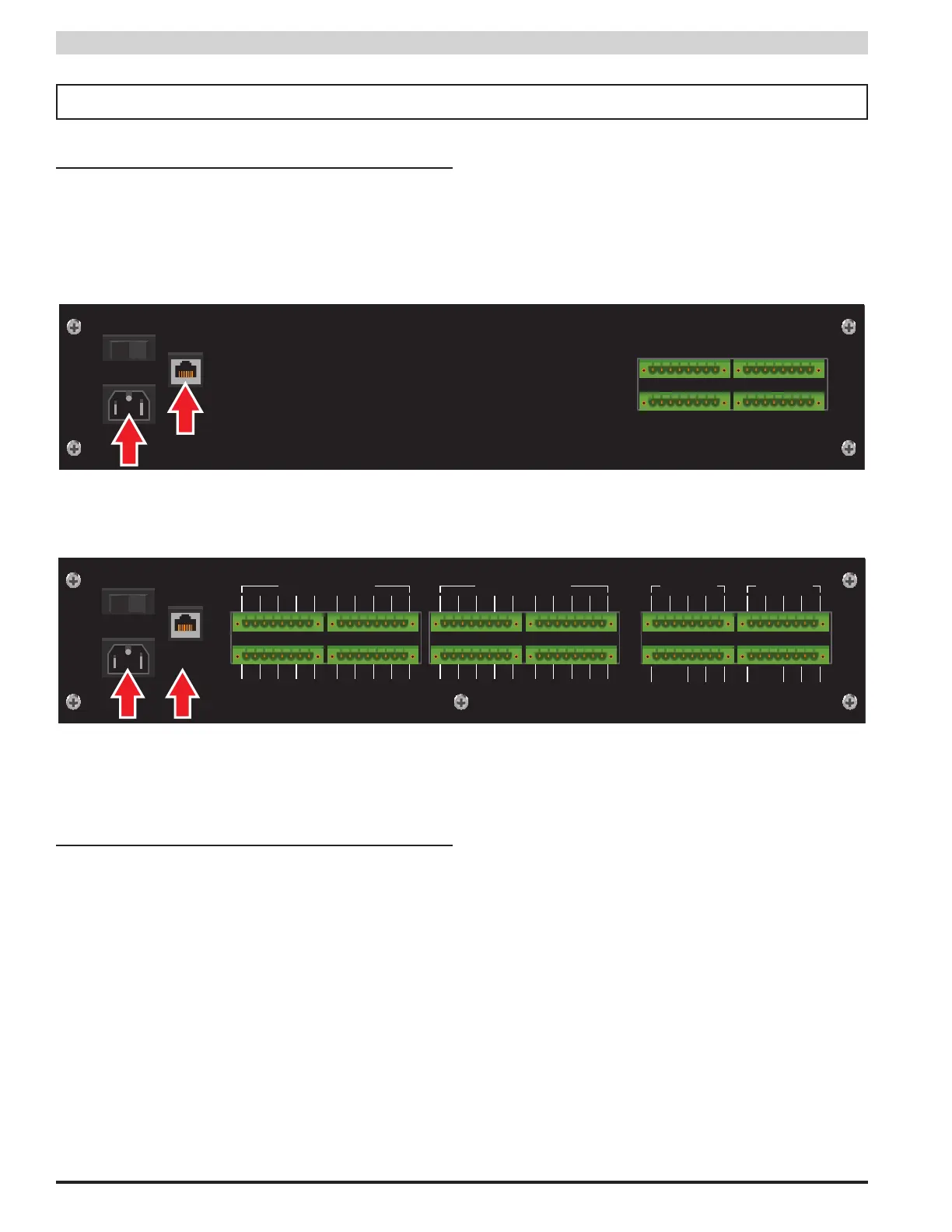

Figure 5 - PSX-GCM, PSX-ISU AC Connection and Ethernet Network Connection
Figure 6 - PSX-ISUSE AC Connection and Ethernet Network Connection
AC Power
10-100
Base-T
9
+ –
10
+ –
11
+ –
12
+ –
13
+ –
14
+ –
15
+ –
16
+ –
9
A B
10
A B
11
A B
12
A B
13
A B
14
A B
15
A B
16
A B
MAIN OUTPUT 1
BAT+
BAT-
DC1 +
DC1 -
DC2 +
DC2 -
ACF
ACF
V +
V -
I -
I -
V -
I -
SF
SF
MAIN OUTPUT 2
BAT+
BAT-
DC1 +
DC1 -
DC2 +
DC2 -
ACF
ACF
V +
V -
I -
I -
V -
I -
SF
SF
1
+ –
2
+ –
3
+ –
4
+ –
CONTROLLED OUTPUTS 1 CONTROLLED OUTPUTS 2
CONTROL INPUTS 1 CONTROL INPUTS 2
5
+ –
6
+ –
7
+ –
8
+ –
1
A B
2
A B
3
A B
4
A B
5
A B
6
A B
7
A B
8
A B
2.1 Main AC Power Connection
To connect the PSX Series to the main AC power source, plug
one end of the included computer-style AC cord into the AC
Power connector on the back of the enclosure. See Figures 5, 6.
Connect the other end of the AC cord into a suitable AC
power outlet.
i The PSX Series is preconfigured for a 120VAC input.
See section 1.3.2 to set for a 230VAC input.
