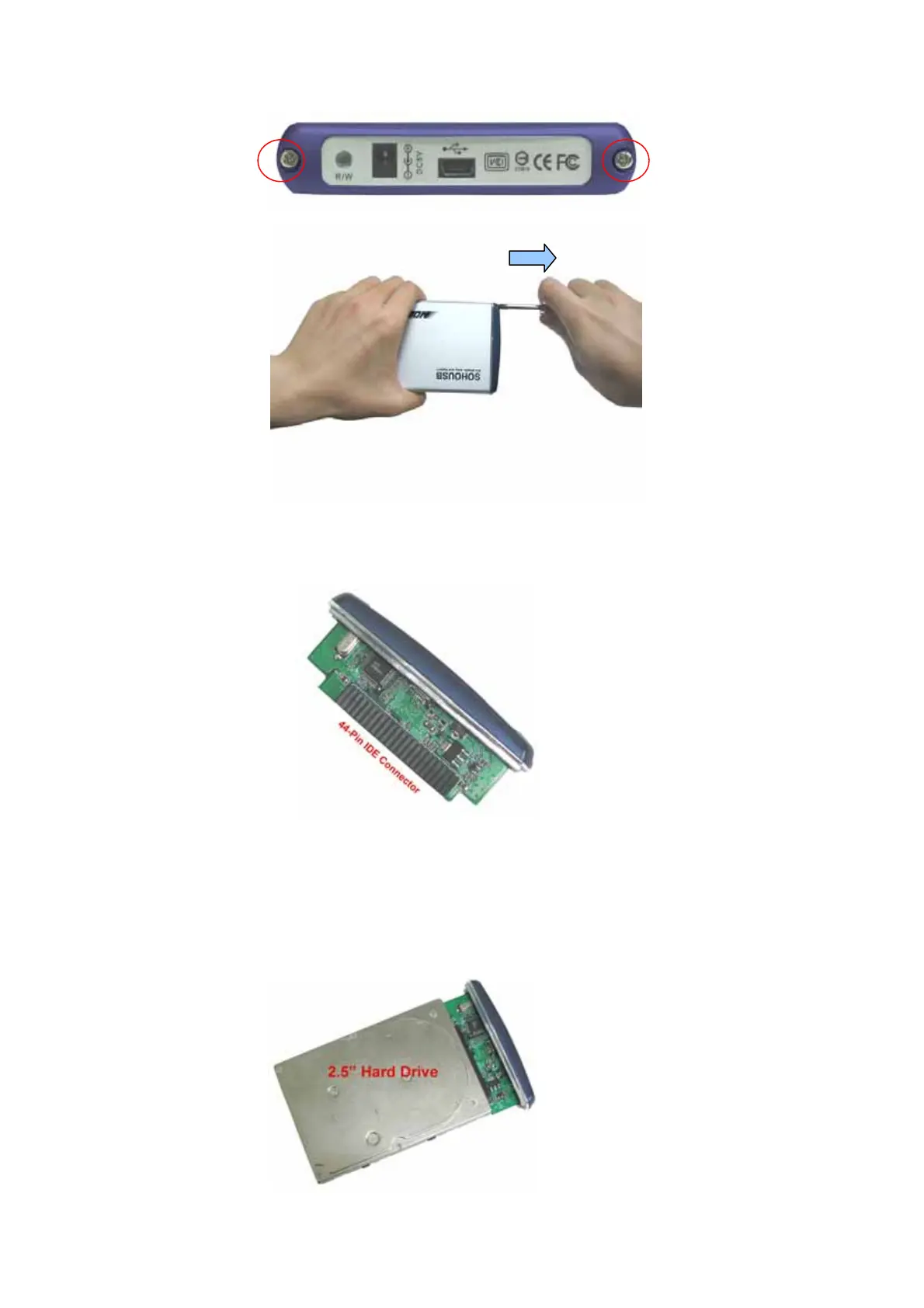

1. Unscrew the end cap’s screw by screwdriver to open the aluminum housing.
2. Pull out the plastic cap with circuit board.
3. Connect 2.5” HDD into the 44-Pin connector on circuit Board.
1). Connect 2.5” hard drive’s 44-pin dual-row header into PCB female header, the connection
should be precise and completely.
2). To avoid damage of hard drive, please handle with caution, do not shake or drop your hard
drive in process.
- 3 -
