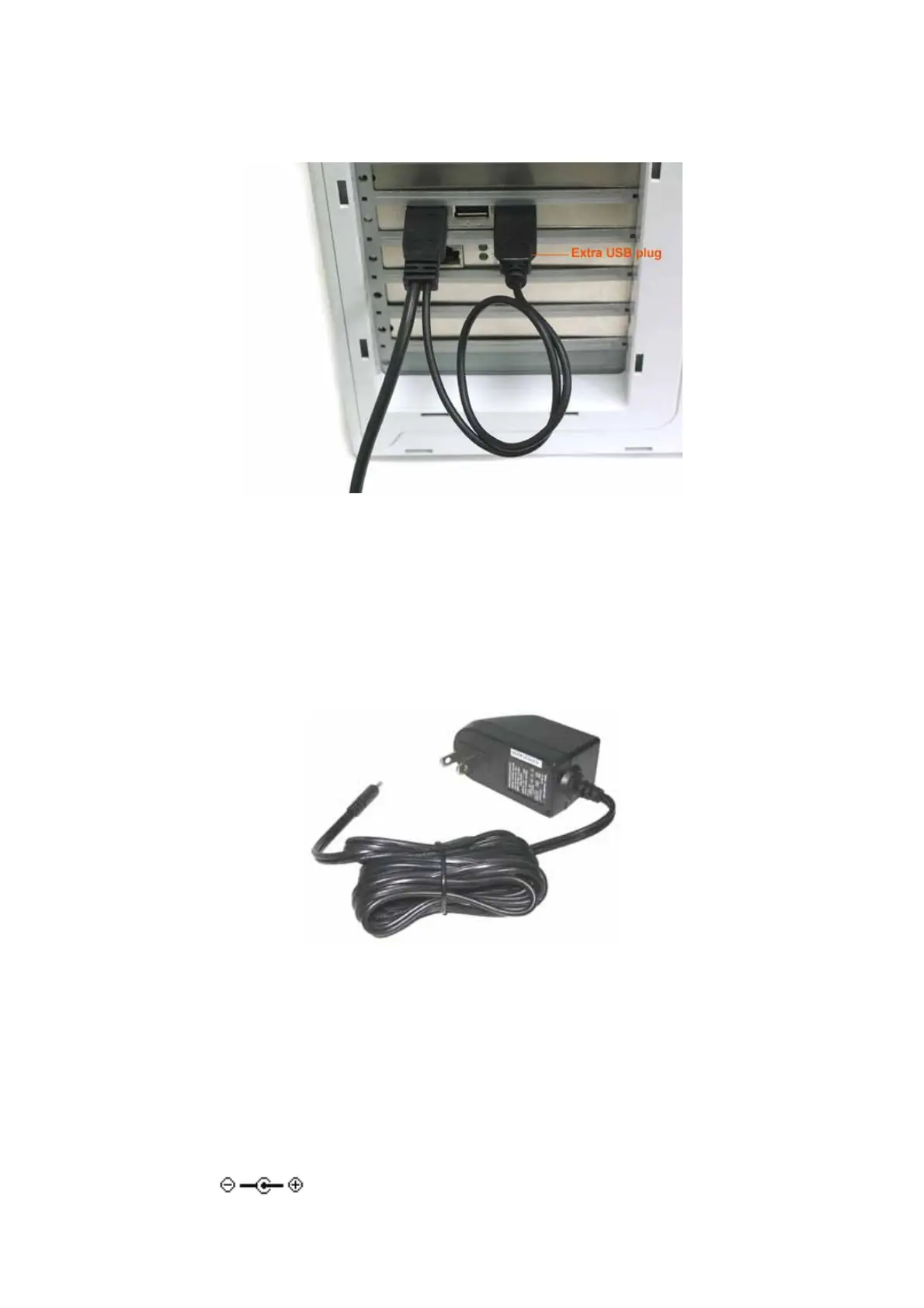

The picture below is connecting an extra USB plug of auxiliary power cord to another USB
port. The auxiliary power cord is thinner than main USB cable but you cannot only use this
auxiliary USB plug to work your Mobile Disk.
Using external AC switching power adapter
The Mobile Disk provides a DC jack for external power adapter application. Using external
power adapter can bring enough power current for your device running stabilized. You can
refer to the following specification and buying from your local seller.
External switching power adapter specification:
1. Output Voltage/Current: DC 5V/1.5A
(Do not use an adapter that over DC 5V, it may damage your device.)
2. Plug type:
a. Inner hole: 1.3∅
b. Outer: 3.5∅
c. Plug length: 9.6 mm
- 9 -
