101

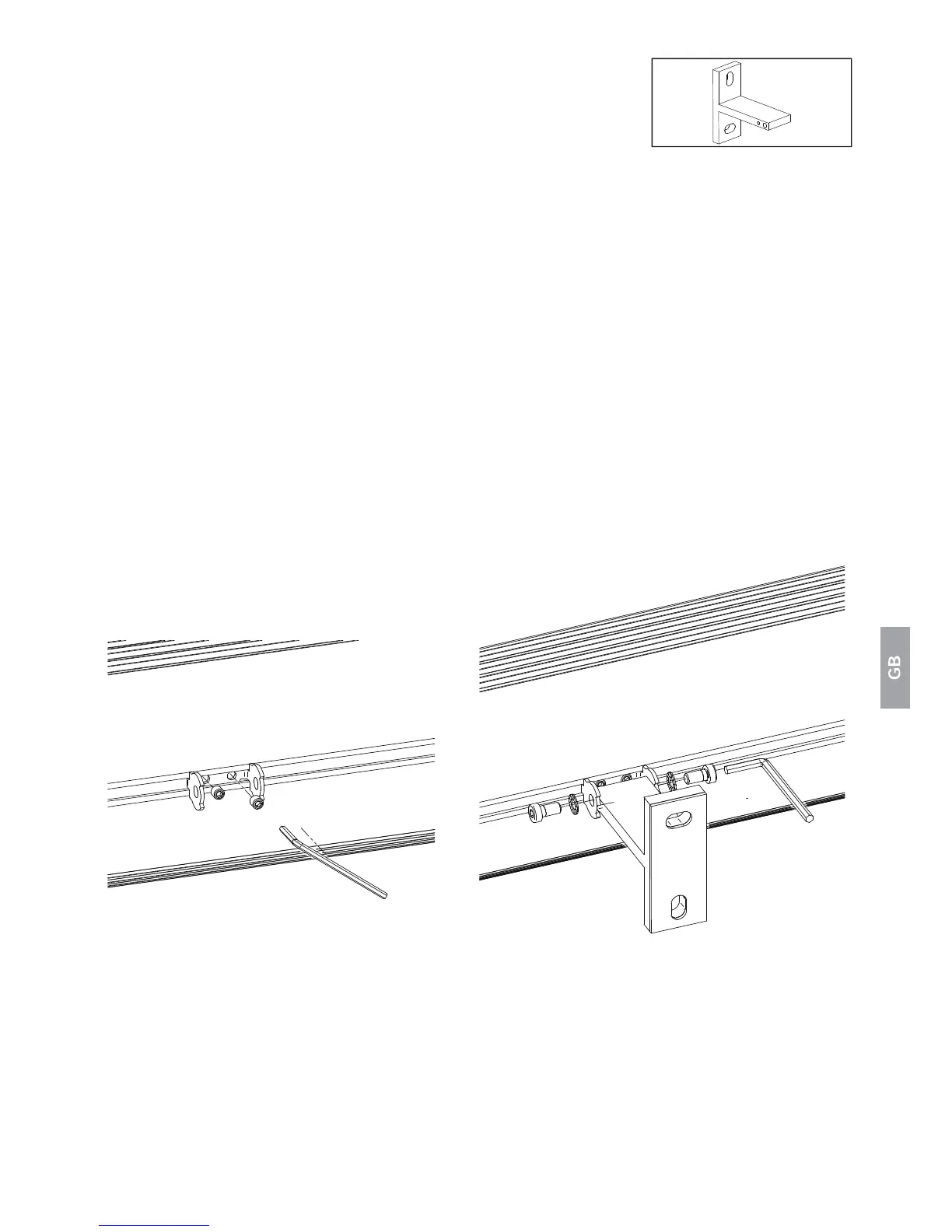

• Mount the T-bracket with the underlying silicone plate on the fastening surface
using 2 screws while adhering to the safety distances and safety instructions
(see Appendix 1)
• Centre the clamping slide on the heater and secure by tightening the clamping
screws.
• Position the heater on the T wall bracket using the clamping slide. Insert the
M6 screws, complete with 6.4 mm serrated washer, on the sides through the
clamping slide into the T wall bracket, then manually tighten.
• Position the heater so that it radiates in the desired direction and then tighten
the two M6 screws using a 5 mm Allen key.
