Janitza UMG 104 (Utility Meter)
Janitza UMG 104
Connecting the Utility Meter to the power grid

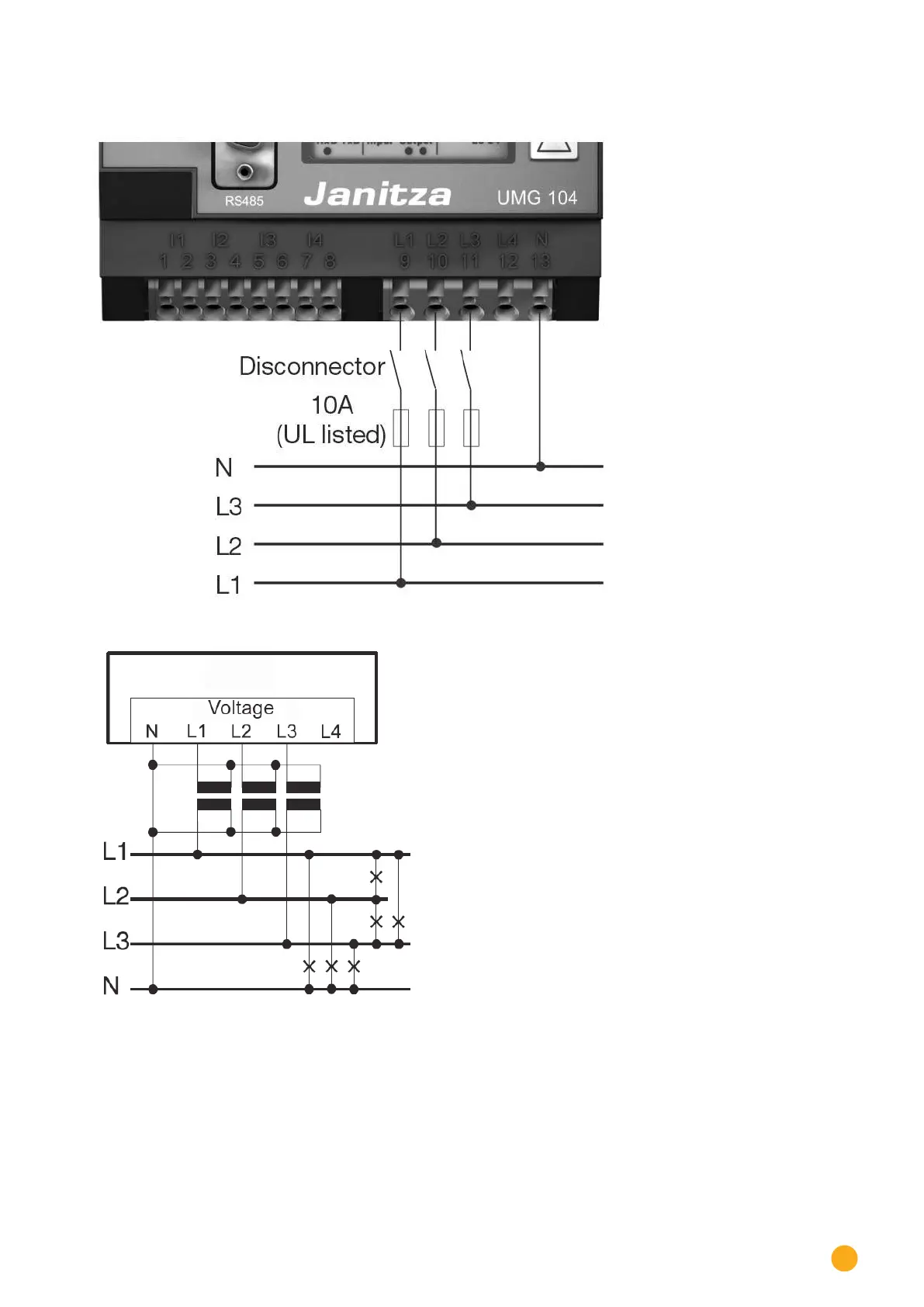

Fig.: Utility Meter connection diagram for voltage measurements in low-voltage power grids
Fig.: Utility Meter connection diagram for voltage measurements with current transformers (medium volt-
age)
