General Information on Wiring
Wiring meters to record self-consumption
3.3.1 Meter connection options to record the total consumption via an
RS485/S0 interface.
This meter has to measure the total consumption of the house.
The meters installed by grid operators, or two-way meters, cannot be used to implement
this function.

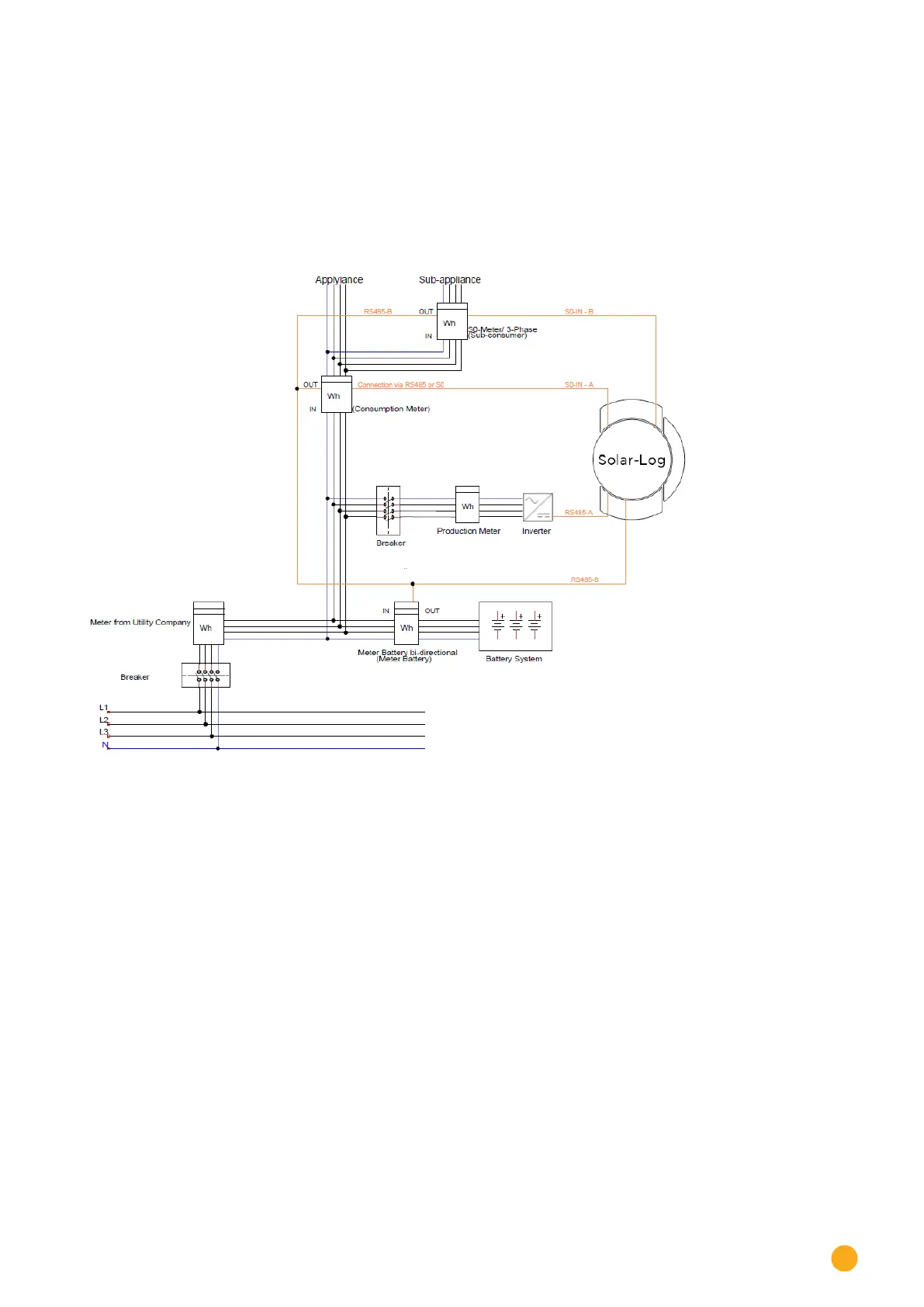

Fig.: Wiring diagram to record self-consumption. (optional with battery storage)
