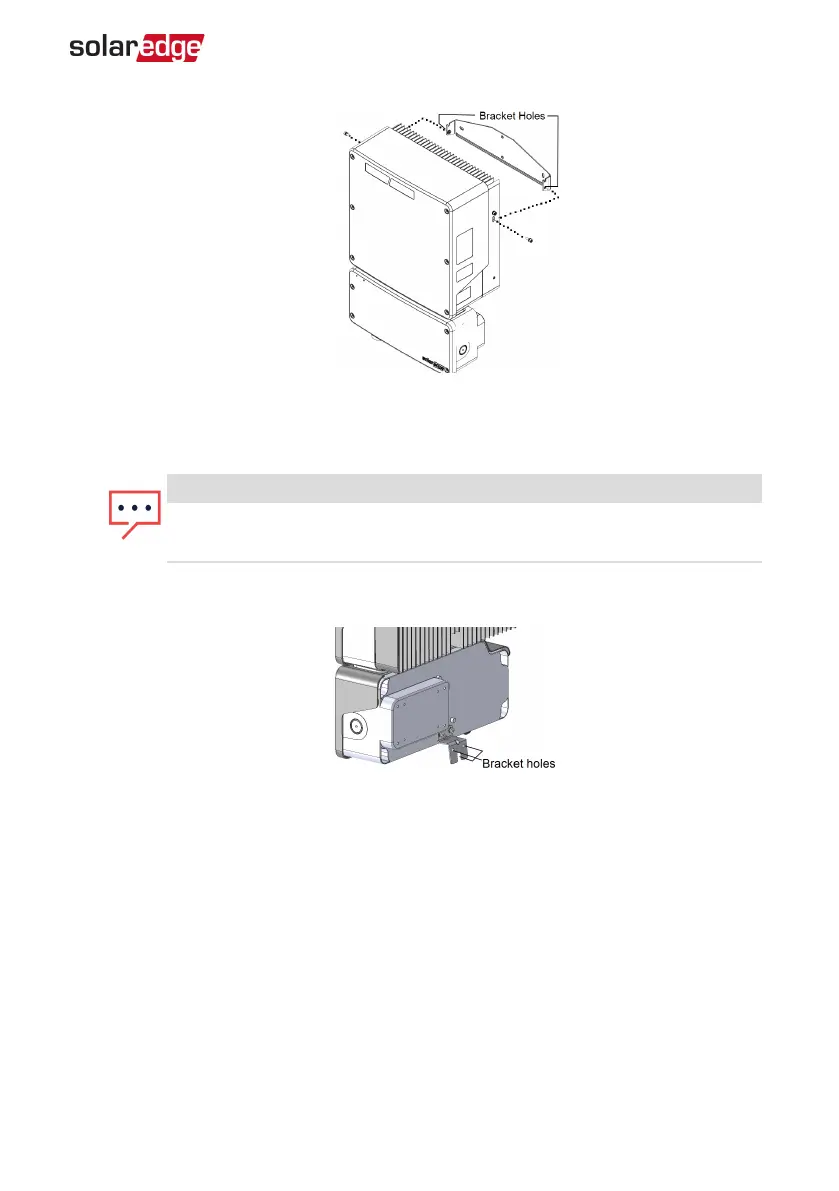

Figure 17: Hanging the inverter on the brackets
6.
Optionally, secure the Connection Unit with Safety Switch bracket to the wall/pole,
using 3 screws:
NOTE
In case of inverter replacement with the Connection Unit with Safety Switch
still mounted, it is recommended to use all 3 holes.
a.
Mark the location of the bracket screw for the Connection Unit with Safety
Switch, and optionally the two additional bracket holes.
Figure 18: Connection Unit with Safety Switch bracket
b. Remove the inverter from the wall/ pole.
c. Drill the hole for the Connection Unit with Safety Switch bracket.
d. Hang the inverter on the mounted brackets.
e. Fasten the Connection Unit with Safety Switch bracket using a standard bolt.
7. Insert the screws at the top of the inverter brackets and fasten the brackets together.
8. Verify that all the brackets are firmly attached to the mounting surface.
Chapter 3: Installing the Inverter 37
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1
