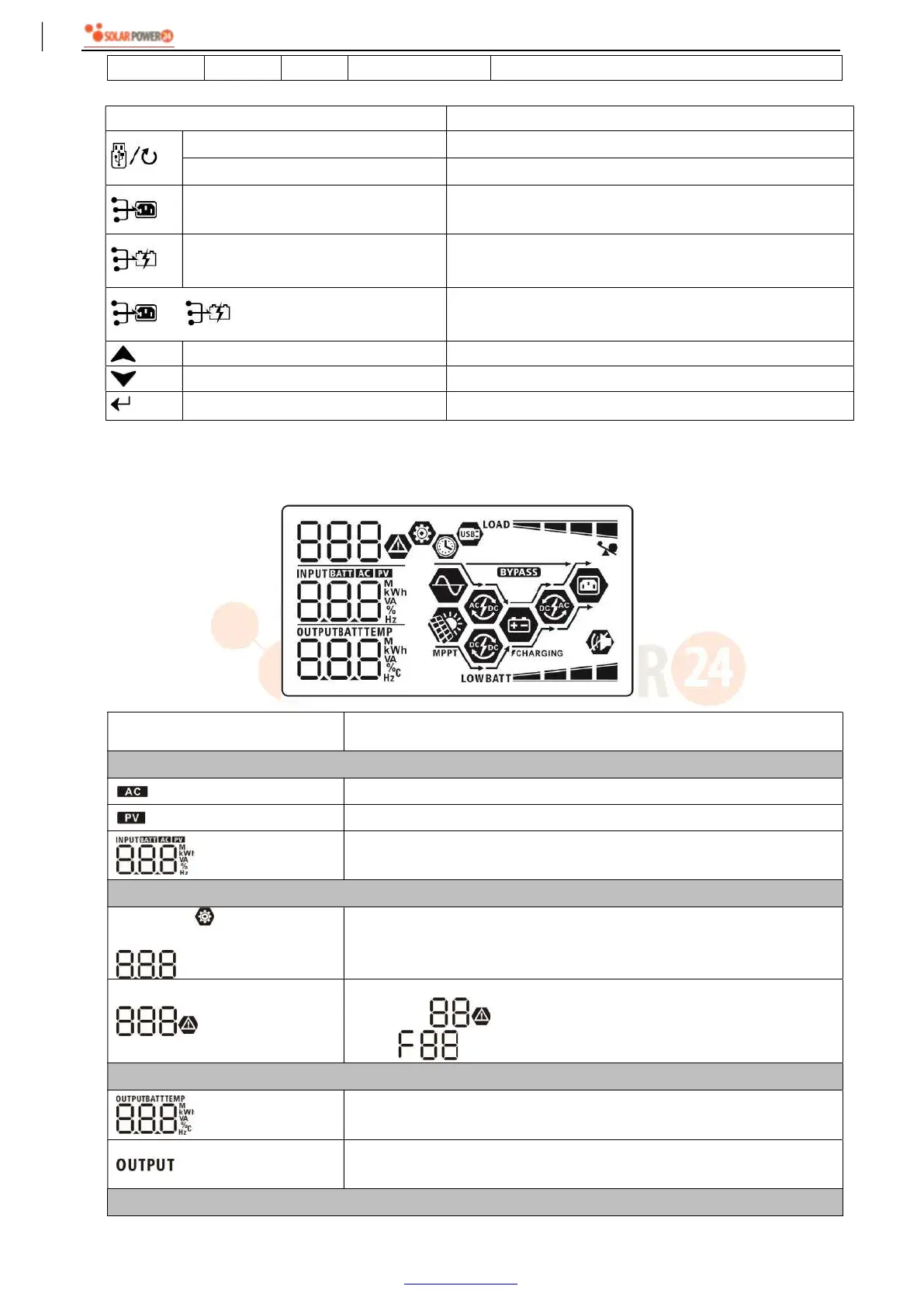

Flashing Warning mode
Function Keys
Function Key Description
ESC Exit the setting
USB function setting Select USB OTG functions
Timer setting for the Output source
priority
Setup the timer for prioritizing the output source
Timer setting for the Charger source
priority
Setup the timer for prioritizing the charger source
+
Press these two keys at the time to switch RGB LED bar
output source priority and battery discharge/charge status
Up To last selection
Down To next selection
Enter To confirm/enter the selection in setting mode
LCD Display Icons
Icon Function description
Input Source Information
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, charger current,
charger power, battery voltage.
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: flashing with warning code.
Fault: lighting with fault code
Output Information
Indicate output voltage, output frequency, load percent, load in VA,
load in Watt and discharging current.
The ICON flashing that indicate the unit with AC output and setting
Programs 60, 61 or 62 different to default setting.
Battery Information
To Next Page
