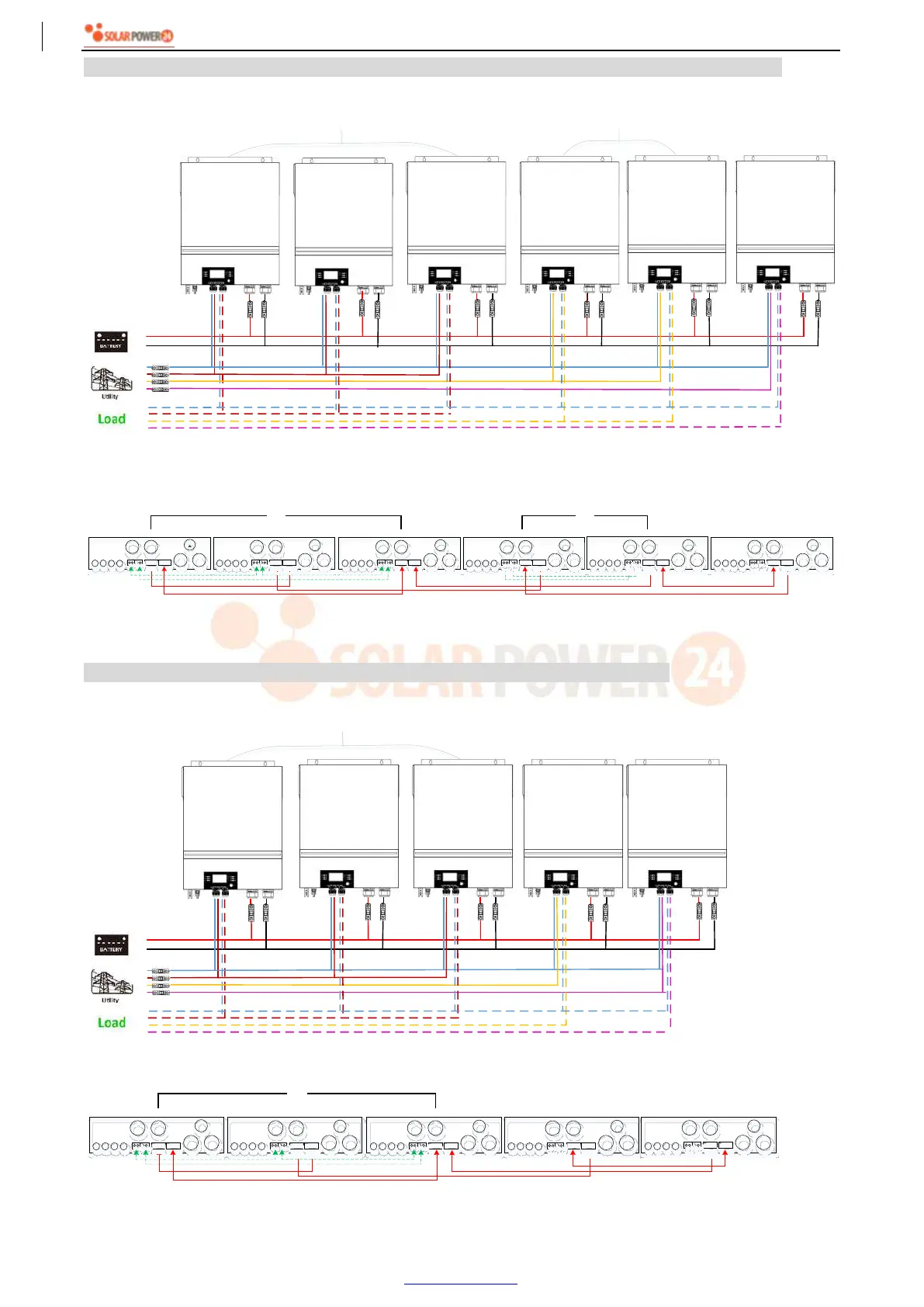

Three inverters in one phase, two inverters in second phase and one inverter for the third phase:
Power Connection
P1
P3
N
L1
L2
L3
N
L1
L2
L3
P2
Communication Connection
2
1
3 4
5
6
P1
P3
P2
Three inverters in one phase and only one inverter for the remaining two phases:
Power Connection
P1
P3
N
L1
L2
L3
N
L1
L2
L3
P2
Communication Connection
2
1
3
4
5
P
1
P3P2
