Solatube 160 DS - Center on Nail and Trace Inside Flashing Base; Cut Roof Opening; Remove Roof Shingles; Set Flashing

For the most current Installation Instructions, please visit www.solatube.com/instructions
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2014 Solatube International, Inc. Part No. 951780 v2.7
4
1/2 in (12.7 mm)
Roof Underlayment
4
Remove Roof Shingles
Center on Nail and Trace Inside Flashing Base
Roof Underlayment
5

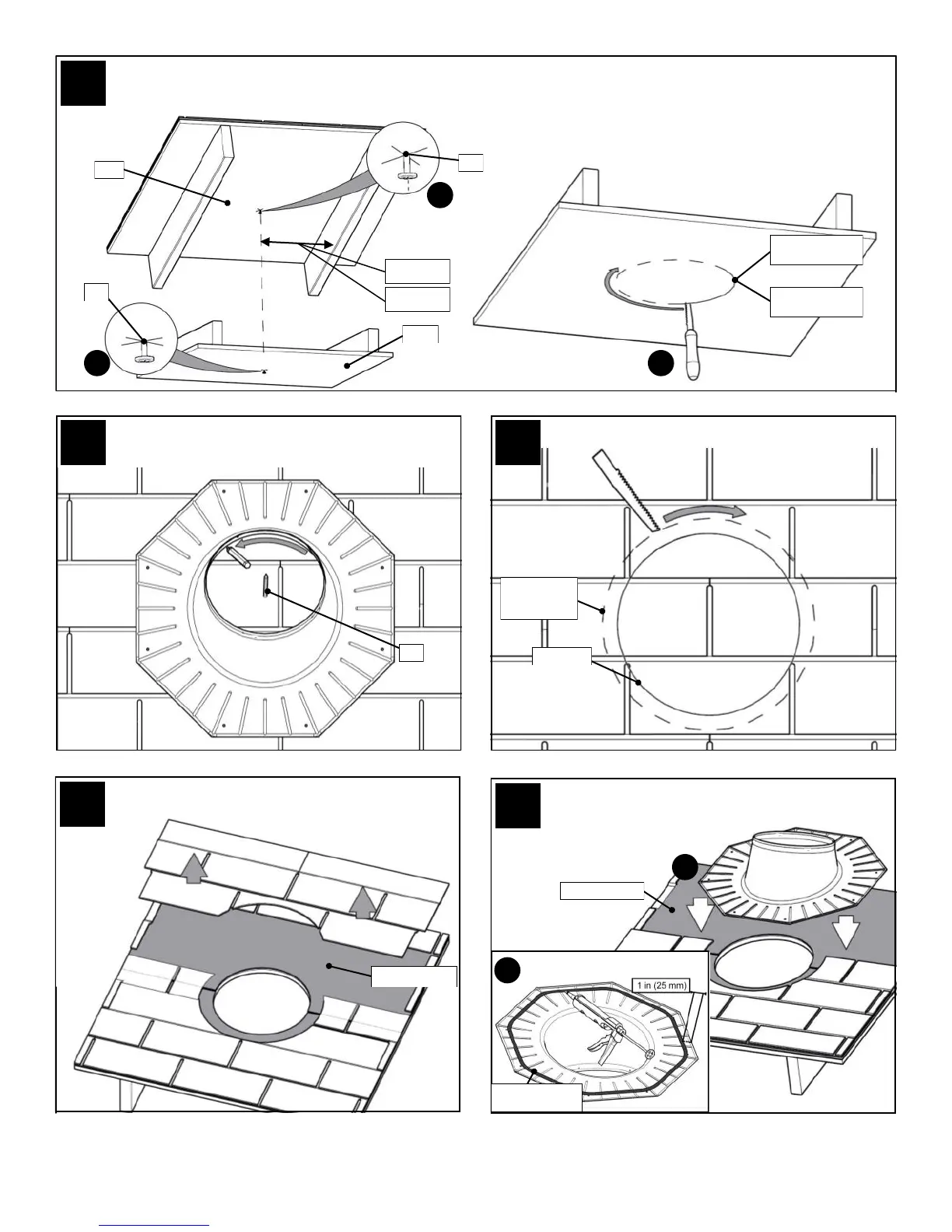

Mark Ceiling and Roof Location Between Joists and Rafters Using Nails. Cut Ceiling Hole.
Minimum clearance of 5 3/8 in (140 mm) for 160 DS and 7 3/8 in (190 mm) for 290 DS between nail hole center
and joist.
2
1
3
Cut Roof Opening
Set Flashing
Nail
Nail
Nail
Cut Line; 1/2 in
(13 mm) Outside
Traced Line
Traced Line
a c
b
b
160 DS
Ø 10 3/4 in (275 mm)
290 DS
Ø 14 3/4 in (375 mm)
Ceiling
Roof
a
Roof Sealant
(3/8 in (10 mm) thick)
160 DS
5 3/8 in (140 mm)
290 DS
7 3/8 in (190 mm)
