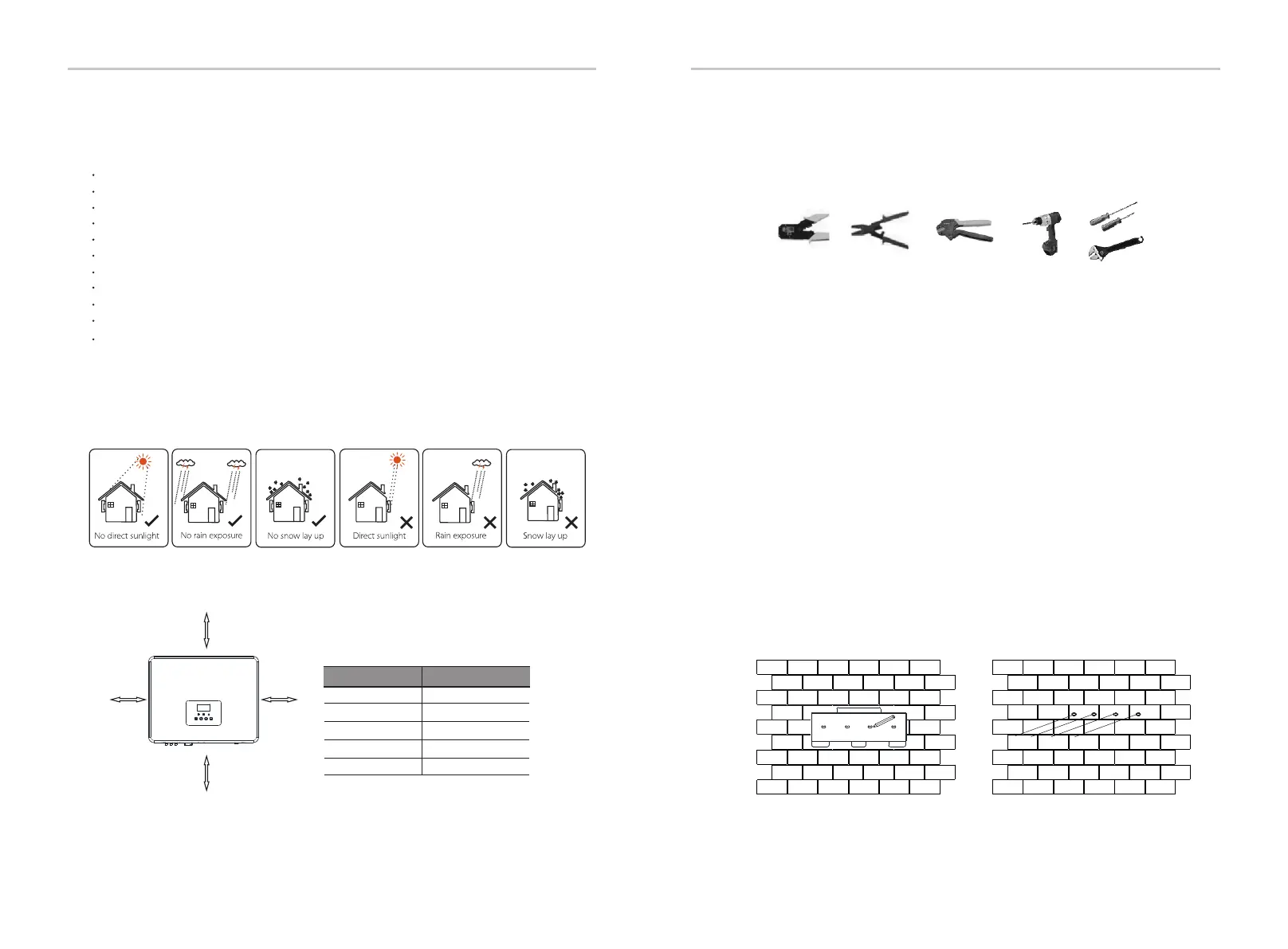

5.3 Installation Precaution
Please avoide direct sunlight, rain exposure, snow laying up during installing and
operating.
Available Space Size
X3 Series inverter is designed for outdoor installation (IP 65).
Make sure the installation site meets the following conditions:
Not in direct sunlight.
Not in areas where highly flammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 2000m above sea level.
Not in environment of precipitation or humidity
Be sure the ventilation is good enough.
The ambient temperature in the range of -25℃ to +60℃.
The slope of the wall should be within ±5°.
Position Min.size
Ø
30cm 30cm
Left
30cm
30cm
30cm
30cm
30cm
Right
Top
Bottom
Front
Table Available Space Size
30cm
30cm
5.4 Installation Steps
Preparation
Step 1: Screw the wall bracket on the wall
Step 2: Match the inverter with wall bracket
Ø
Ø
Ø
Below tools are needed before installation.
Installation tools : crimping pliers for binding post and RJ 45, screwdriver,
stripping pliers,wire crimpermanual wrench and φ10 drill.
a) Use the wall bracket as a template to mark the position of the 4
holes on the wall.
b) Drill holes with driller, make sure the holes are deep enough (at
least 60mm) for installation, and then tighten the expansion tubes.
c) Install the expansion tubes in the holes, and tighten them. Then
install the wall bracket by using the expansion screws.
d) Hang the inverter over the bracket, move the inverter close to it,
slightly lay down the inverter, and make sure the 4 mounting bars on the
back are fixed well with the 4 grooves on the bracket.
a)
b)
16 17
Installation Installation
The wall hanging the inverter should meet conditions below:
1.solid brick/concrete, or strength equivalent mounting surface;
2.Inverter must be supported or strengthened if the wall’s strength isn’t
enough(such as wooden wall, the wall covered by thick layer of decoration)
