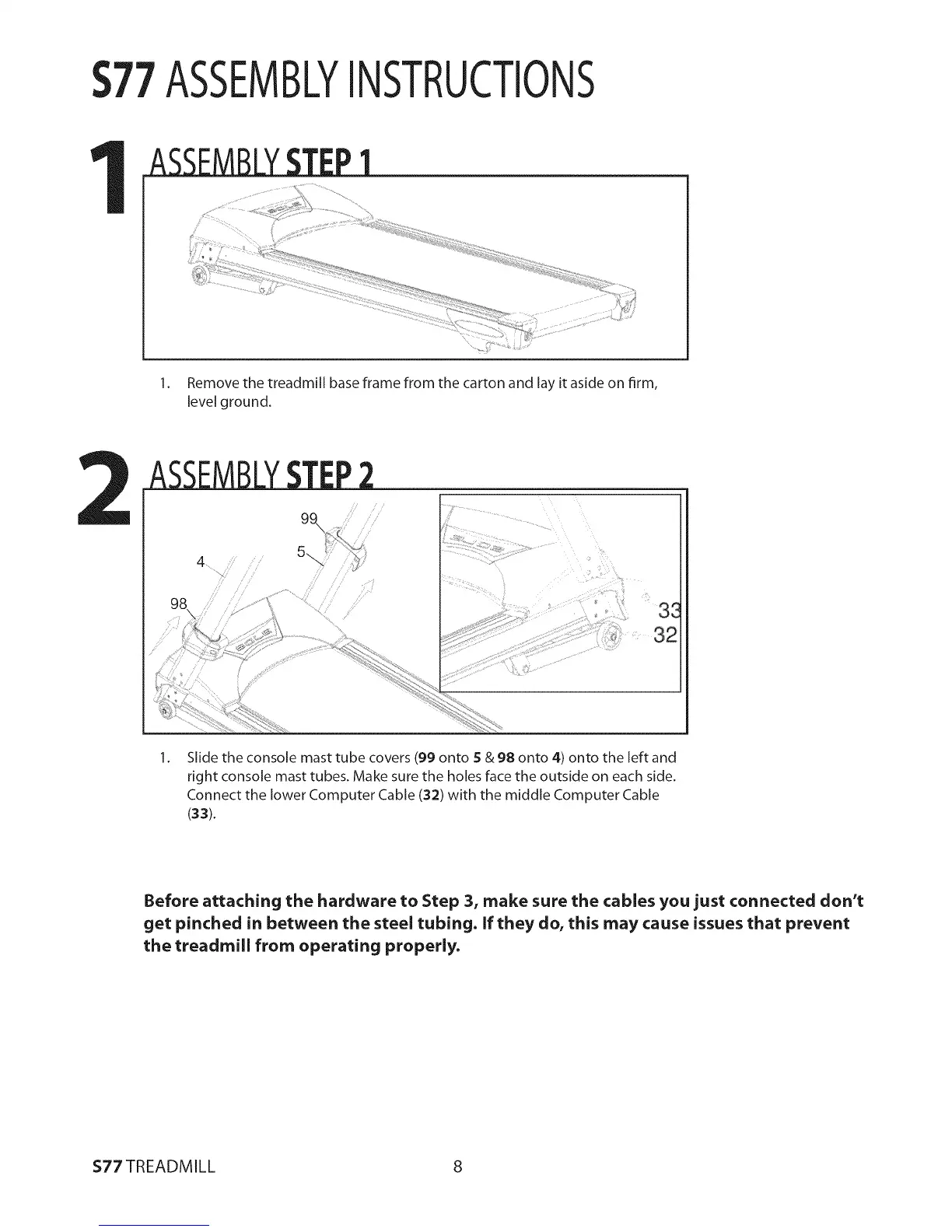

$77ASSEMBLYINSTRUCTIONS
ASSEMBLYSTEP_
1.
Remove the treadmill base frame from the carton and lay it aside on firm,
level ground.
ASSEMBLYSTEP2
4 .........
1.
Slide the console mast tube covers (99 onto 5 & 98 onto 4) onto the left and
right console mast tubes. Make sure the holes face the outside on each side.
Connect the lower Computer Cable (32) with the middle Computer Cable
(33).
Before attaching the hardware to Step 3, make sure the cables you just connected don't
get pinched in between the steel tubing. If they do, this may cause issues that prevent
the treadmill from operating properly.
$77 TREADMILL 8
