Solem LR-IP - WIRING

14
Step 4
WIRING
S S
Black
Red
CP 1 2 3 4 5 6

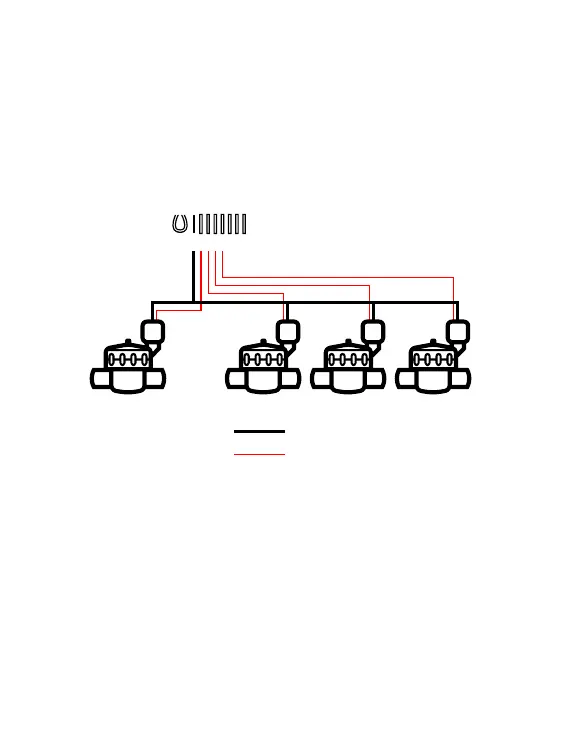

1. Connect the LR-IP to the solenoids as described below.
Use 9V pulse valves only.
2. (Optional) If you want to install a rain sensor, cut the yellow wire of
the LR-IP and connect it to the sensor.
