Solfex IRC 2.1 - Installing the Pumping Station

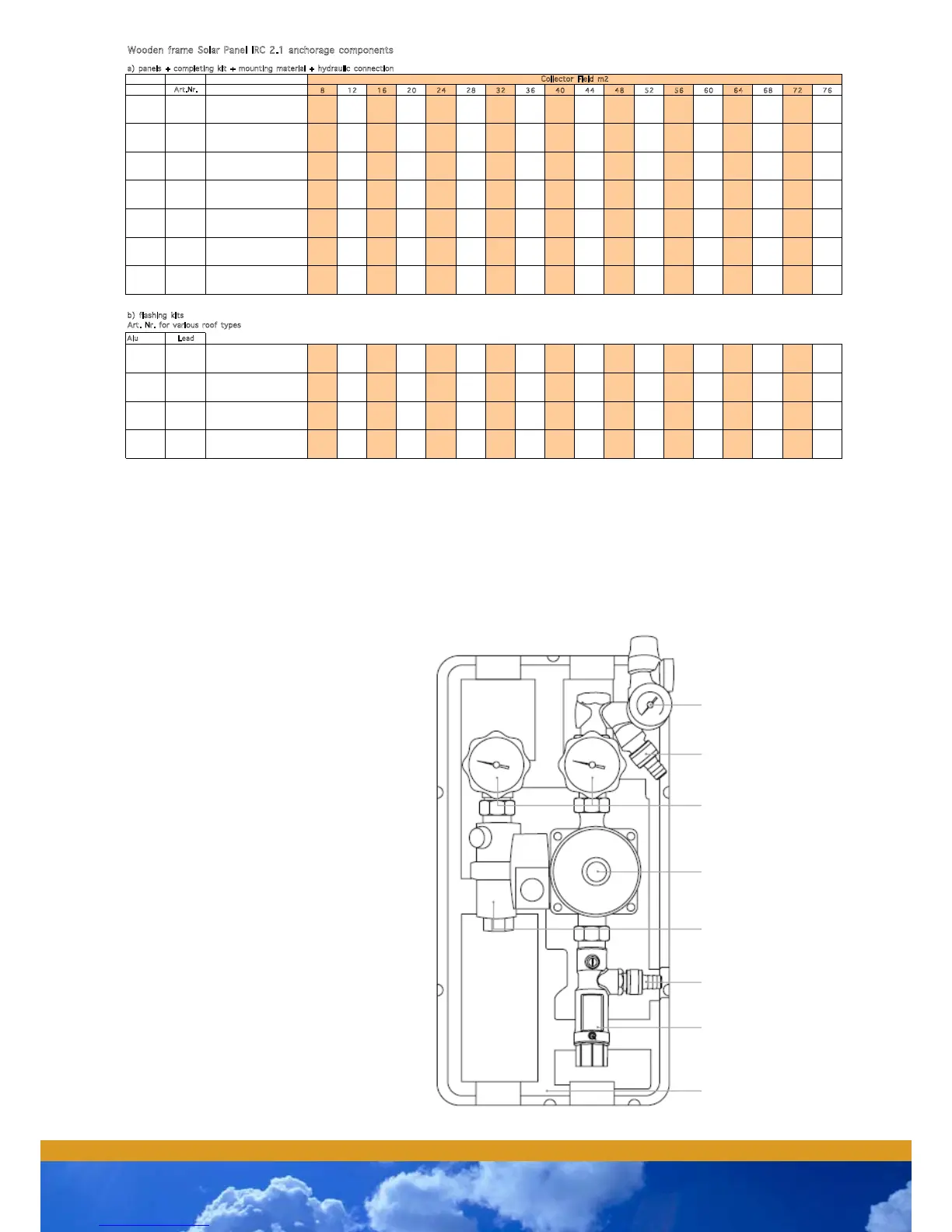

Installing the pumping station - page 25
Technical changes may be made without notice
3. Safety unit
6. Filling / emptying taps
2. Shut-off valves with
non-return valve
1. Solar pump
5. Air vent chamber
6. Filling / emptying taps
4. Flow meter and flow regulator
7. Insulating casing
The pumping station should
be mounted vertically on a flat
surface capable of supporting
its weight. It can be installed in
the roof space if necessary, but
note that access will be required
for commissioning and also any
possible maintenance in the
future.
The pressure relief valve on the
pump station can be discharged
into the solar HTF container
situated next to the pump
station. If discharging into a
container then it is necessary
that there is a small amount of
fluid in the container to cool any
hot fluid which could potentially
discharge from the system.
The minimum total volume store size is 50 litres per m² of the collector absorber area.
* Please contact us for further details.
Wooden frame Solar Panel IRC 2.1 anchorage components
a) panels + completing kit + mounting material + hydraulic connection
Art.Nr.
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 68 72 76
14107
Number of panels
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38
24100
basic kit for 2 panels +
wooden wedges on the top
1 1 1 1 1 1 1 1 1
24101
basic kit for 3 panels +
wooden wedges on the top
1 1 1 1 1 1 1 1 1
24102
extension kit for 3 panels +
wooden wedges on the top
1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8
24103
basis kit for 1 panel +
horizontal covering to the
next row
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
24104
extension kit for 1 panel +
horizontal covering to the
next row
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
20001
hydraulic connection kit for 2
panels
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38
Alu Lead
24111 24105
basic kit for 2 panels
(8 m flashing)
1 1 1 1 1 1 1 1 1
24112 24106
basic kit for 3 panels
(10 m flashing)
1 1 1 1 1 1 1 1 1
24116 24117
extension kit horizontal for 2
panels
(4 m flashing)
1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8
24110 24110
extension kit vertical for 1
panels
(4 m flashing)
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Collector Field m2
b) flashing kits
Art. Nr. for various roof types
SMK12_solar_circuit_#286388.xls; materials double row 6/2/09
Installing the Pumping Station
Solar Collector Sizing / Store Volumes
