Solfex IRC 2.1 - System Schematics; System with One Collector Field

The Solfex Solar product
range has been specially
developed for use in solar
thermal systems, where high
temperatures can normally
be reached and where,
depending on the kind of
system, there can be glycol.
Materials and performance
of the components must
necessarily take into account
these particular operating
conditions.
Pressure pump
filling points
page 26 - System Schematics
Technical changes may be made without notice
Optional AAV
(Not needed
if using filling
pump)
Optional Heat
Metering
Accessories

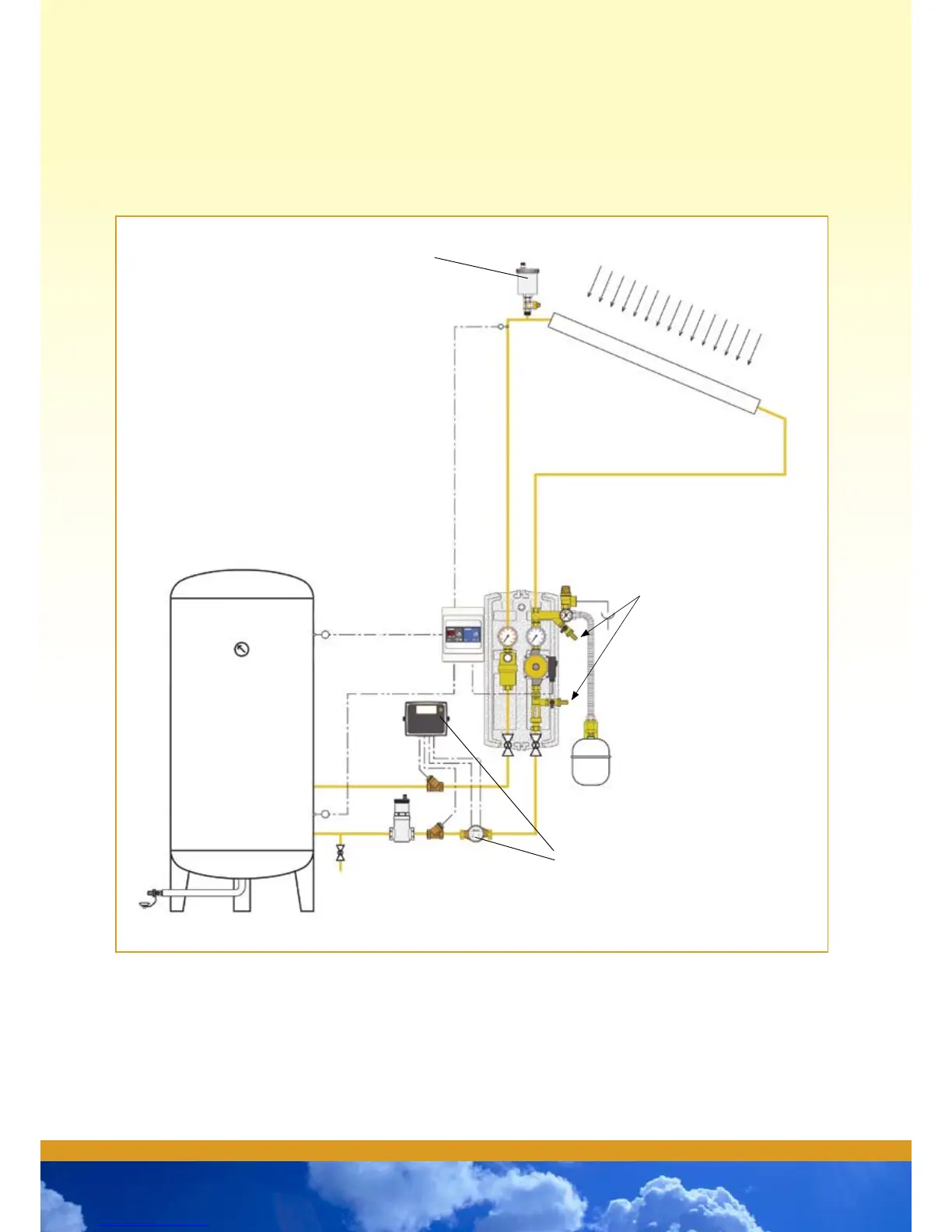

System with one collector field
