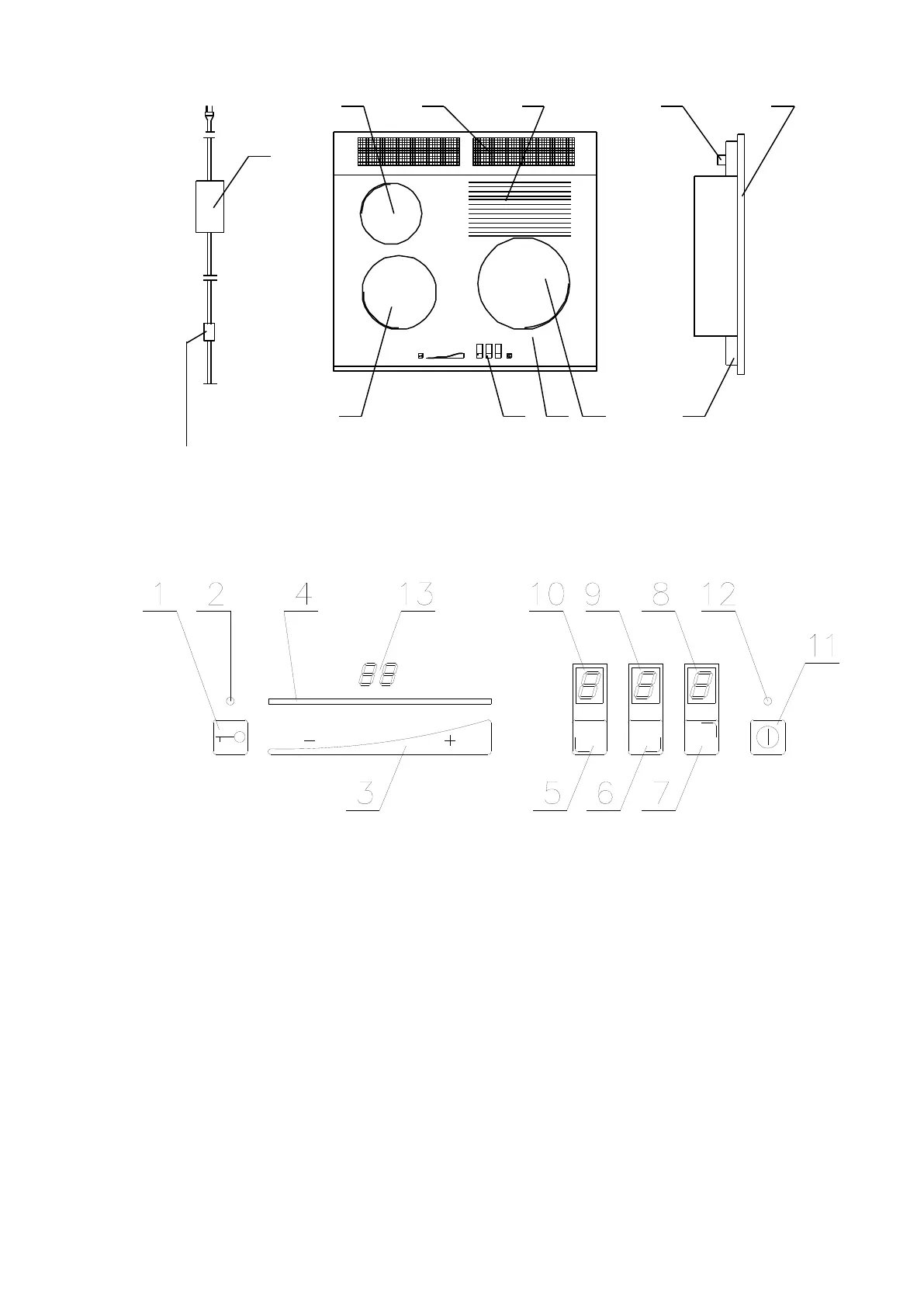

Fig. 1
1 – ceramic plate, 2 – hot field A ø120, 3 – hot field C ø90, 4 – hot field D ø180, 5 hot aera 6 –
combustion gas outlet, 7 – controller,, 8 – gas inlet, 9 – power supply socket 10 – power adapter
Fig. 2 (control panel – item 9. on fig. 1.)
1 user lock, 2 – lock indicator, 3 - – power setting, 4 – power setting indicator 5,6,7 – burner
selection fields 8,9,10 – digital indicator of burner power settings, 11 – on/off switch, 12- on/off
indicator, 13- Timer indicator
2. REQUIREMENTS FOR HOB INSTALLATION
All activities related to hob installation and connection to gas and electrical system
should be performed by a certified installer.
NOTE: Before installing the hob and connecting it to the gas installation, make sure it is
adapted for the right type of gas supply and that this gas corresponds to the gas type given on
the hob’s rating plate. (by default, cookers are adapted to G 20 gas). Otherwise, adapt the
hob through replacing the nozzles and air diaphragms with the types appropriate for the
given type of gas. In case of any doubt as to the type of gas supplied via the network, please
