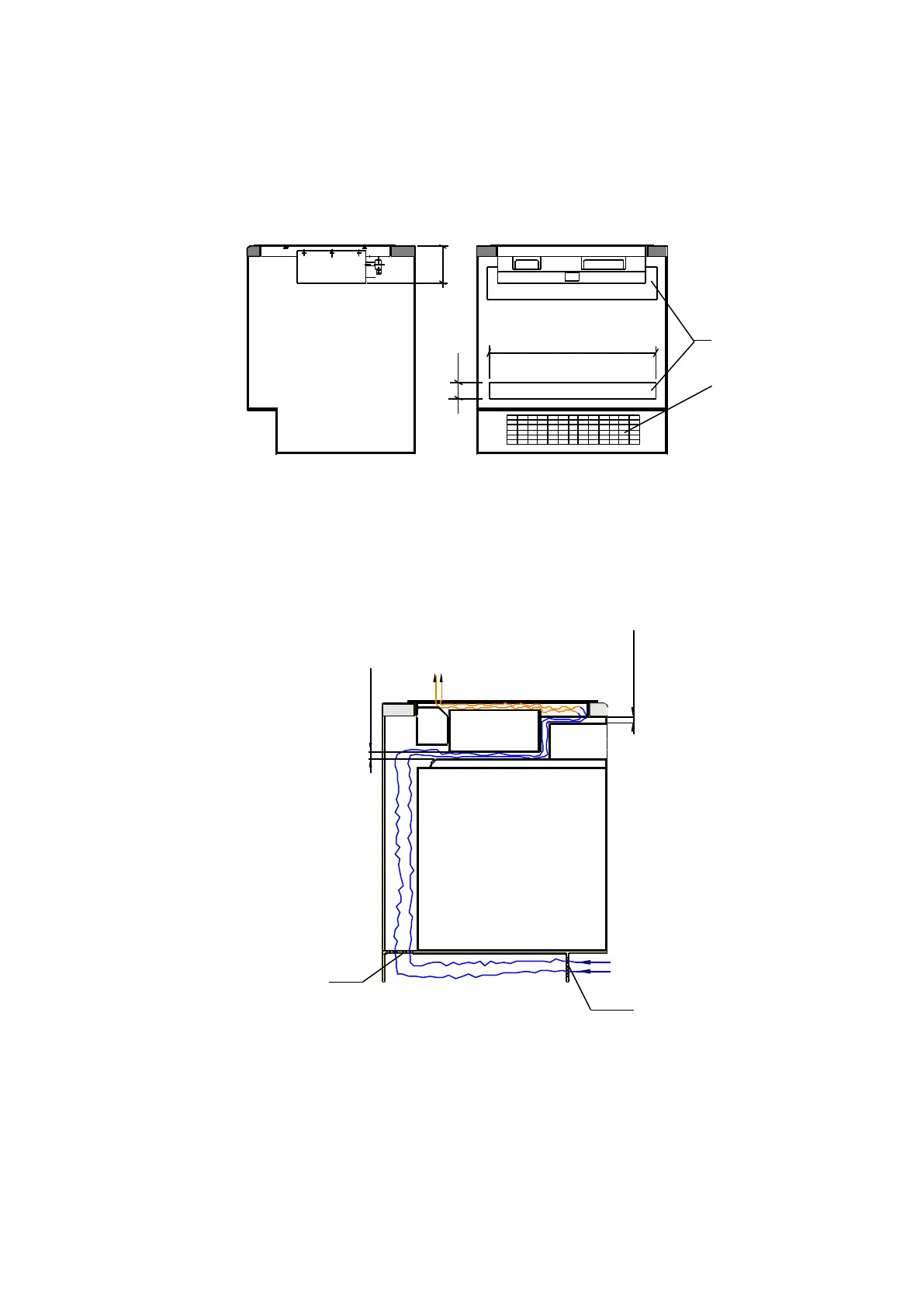

Fig. 3. Installation
side view front view
Fig. 4. Assembly
1-VENTILATION AIR INLET
2- VENTILATION AIR INLET WITH GRID
Fig. 5. Hob with oven arrangement
1 – VENTILATION AIR INLET IN THE BOTTOM PART OF THE SHELF; 2 – VENTILATION AIR INLET
WITH MESH; 3 – AIR
REMARKS:
- Due to the height of the hob, it is impossible to install it over an oven in standard kitchen
cabinets.
- If the kitchen cabinet has a back wall, it is absolutely necessary to cut out ventilation openings in
it, as shown on the drawing.fig. 5,
