SOLICARD 4000
Installation guide UK

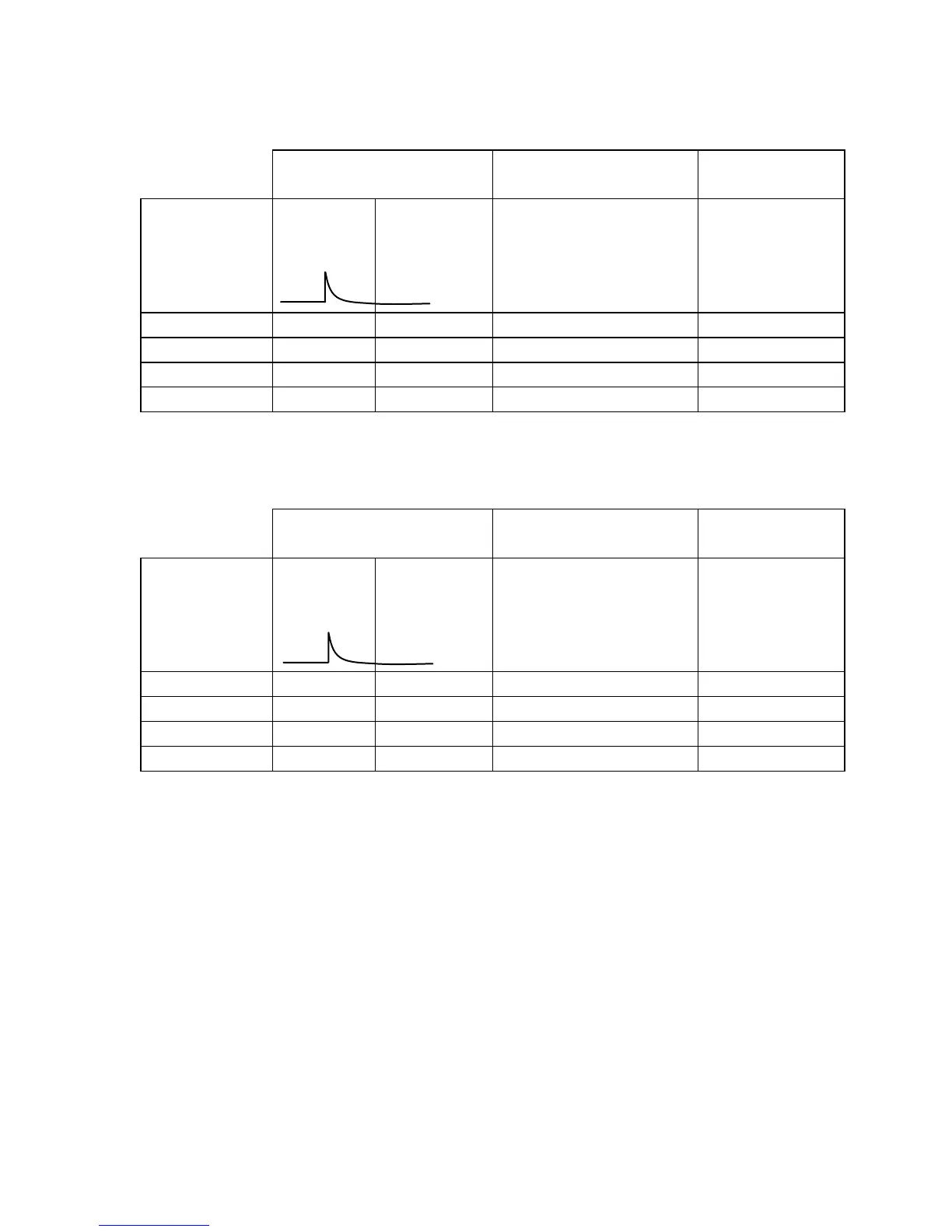

The table below shows the DAC-30 fed with 24V and with a motor lock
connected.
At work Slowed down Normal mode/
Waiting mode
DAC-30
24V fed with
motor lock
Start
peak for
0,1 sec.
Remaining
operating
time
Run for 3 sec., pause
for 4 sec. repeated 5
times. After that run
for 1 sec., pause for 1
min.
Plus Table 6 x
the number of
readers
EL650 550mA 280mA 700mA 190mA
8164 700mA 330mA 750mA 190mA
8087S 1.100mA 330mA 1.200mA 140mA
8000S 450mA 180mA 500mA 140mA
Table 4
The table below shows the DAC-30 fed with 12V and with a motor lock
connected.
At work Slowed down Normal mode/
Waiting mode
DAC-30
12V fed with
motor lock
Start
peak for
0,1 sec.
Remaining
operating
time
Run for 3 sec., pause
for 4 sec. repeated 5
times. After that run
for 1 sec., pause for 1
min.
Plus Table 7
x the number
of readers
EL650 570mA 300mA 720mA 200mA
8164 720mA 350mA 770mA 200mA
8087S 1.400mA 350mA 1.500mA 150mA
8000S 600mA 200mA 650mA 150mA
Table 5
