FCAx3 USER MANUAL
26 +44 (1753) 214 500

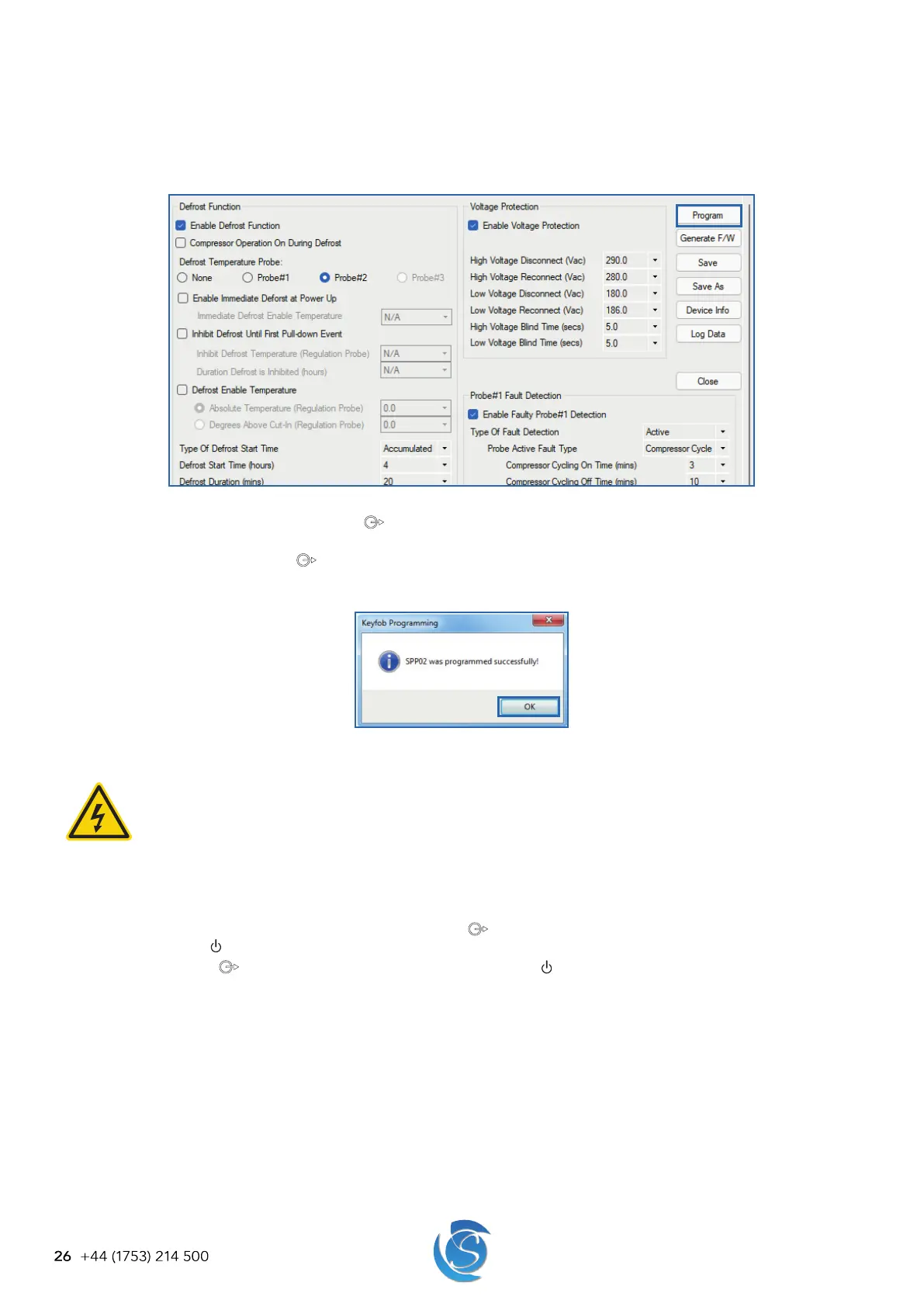

Downloading Parameters from the Parameter Configuration Window.
1. Open and edit/create a configuration to match your requirement.
2. Plug the SPP02 into the USB port in your computer, if plugging in for the first time please wait for all the drivers to be
installed before proceeding, this may take several minutes.
3. Click the Program button in the top right corner of the parameter configuration window.
4. During the programming of the SPP02, the LED on the SPP02 will light up and remain on as the data is being
downloaded.
5. On successful downloading, the
LED will start flashing and then turn OFF. A success message will also appear on the
screen.
6. Click OK to close the message box. The SPP02 can now be removed from the computer.
PROGRAMMING THE FCAX3
DANGER! ELECTRIC SHOCK HAZARD - LIVE TERMINAL
This is a non-isolated product. The sensor inputs and outputs are not electrically isolated from the power terminals
therefore the supply MUST be disconnected from the controller before programming the device. This Equipment
is to be serviced by trained personnel only.
1. Connect the mini-USB connector of the SPP02 to the mini-USB port on the extension cable.
2. Remove the rubber dust cover from the micro-USB port on the FCAx3. Connect the micro-USB connector of the extension
cable to the Micro-USB port on the FCAx3.
3. Press the button on the side of the SPP02 programmer. The
LED will light up and will remain on as the FCAx3 is being
programmed. The LED on the FCAx3 will also light up.
4. On Completion the
LED will start flashing and turn OFF. The FCAx3 LED will also turn OFF.
5. Unplug the SPP02 and extension cable from the unit. Replace the cover on the micro-USB port. Reconnect mains to the
FCAx3. The FCAx3 is now ready for use.
Note: If you have any problems during programming or want to use the SPP Visual software to upload to the SPP02, then
please refer to the SPP02 Visual Programmer User Instructions for more details and troubleshooting.
