Standard delivery ; Control and function elements
ENGLISH 8
2. Standard delivery
• Motorised hedge trimmer
• Cutting blade protector
• Tools: combination spanner (sparkplug, T25), T27
• 50 g SOLO gear grease for hedge trimmer (part no. 00 83 190)
• Instruction manual, the EC declaration of conformity on a separate piece of paper
3. Control and function elements
1. Rear handle 10. Primer
2. Locking lever (for handle adjustment) 11. Sparkplug cap
3. Throttle lock 12. Front handle
4. Throttle lever 13. Hand guard
5. ON/OFF switch (I / 0) 14. Hand protection
6. Fuel cap 15. Blade
7. Starter grip 16. Cutting blade protector
8. Air filter cover 17. Muffler
9. Choke lever

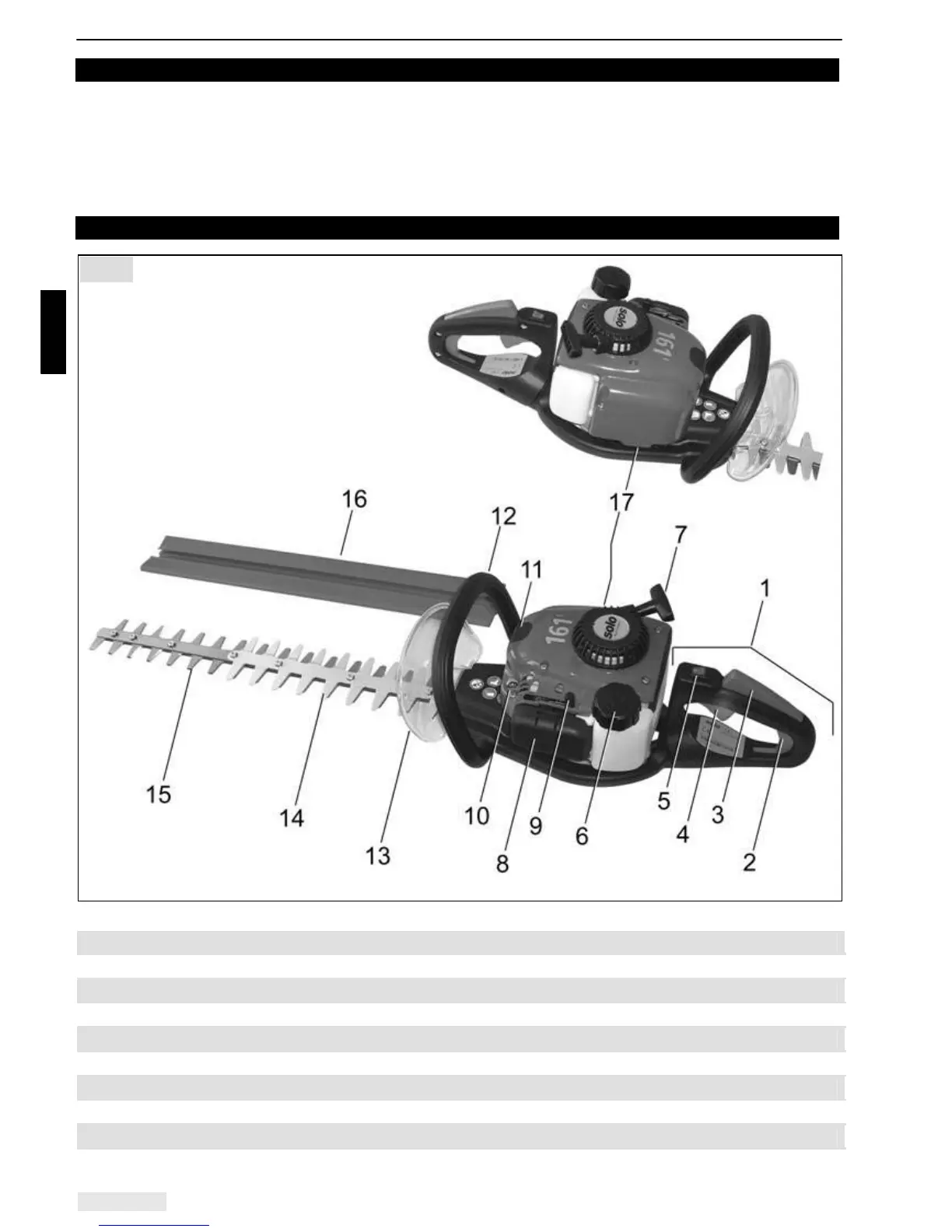

Fig. 1
