7. ASSEMBLY INSTRUCTIONS FOR THE HANDLEBARS AND
FRONT SUPPORT WITH WHEELS
The flail mower is delivered with the front support with wheels disassembled. Re-
move the cardboard packaging or crate (to be disposed of in an appropriate man-
ner, in accordance with current regulations in force).
To assemble, proceed as follows :
- Position the front support with front wheels and connect the height adjustment
piece (Fig. 3 ref. B) using the screw and washer provided. Fix it to both sides of
the bonnet as well using the screws, washers and spacers provided, as shown in
Fig. 3 ref. A.
- Fix the safety bar ( Fig.3 ref. C ) to the special holes on the two front sides of
the wheel support using the screws, washers and nuts provided.

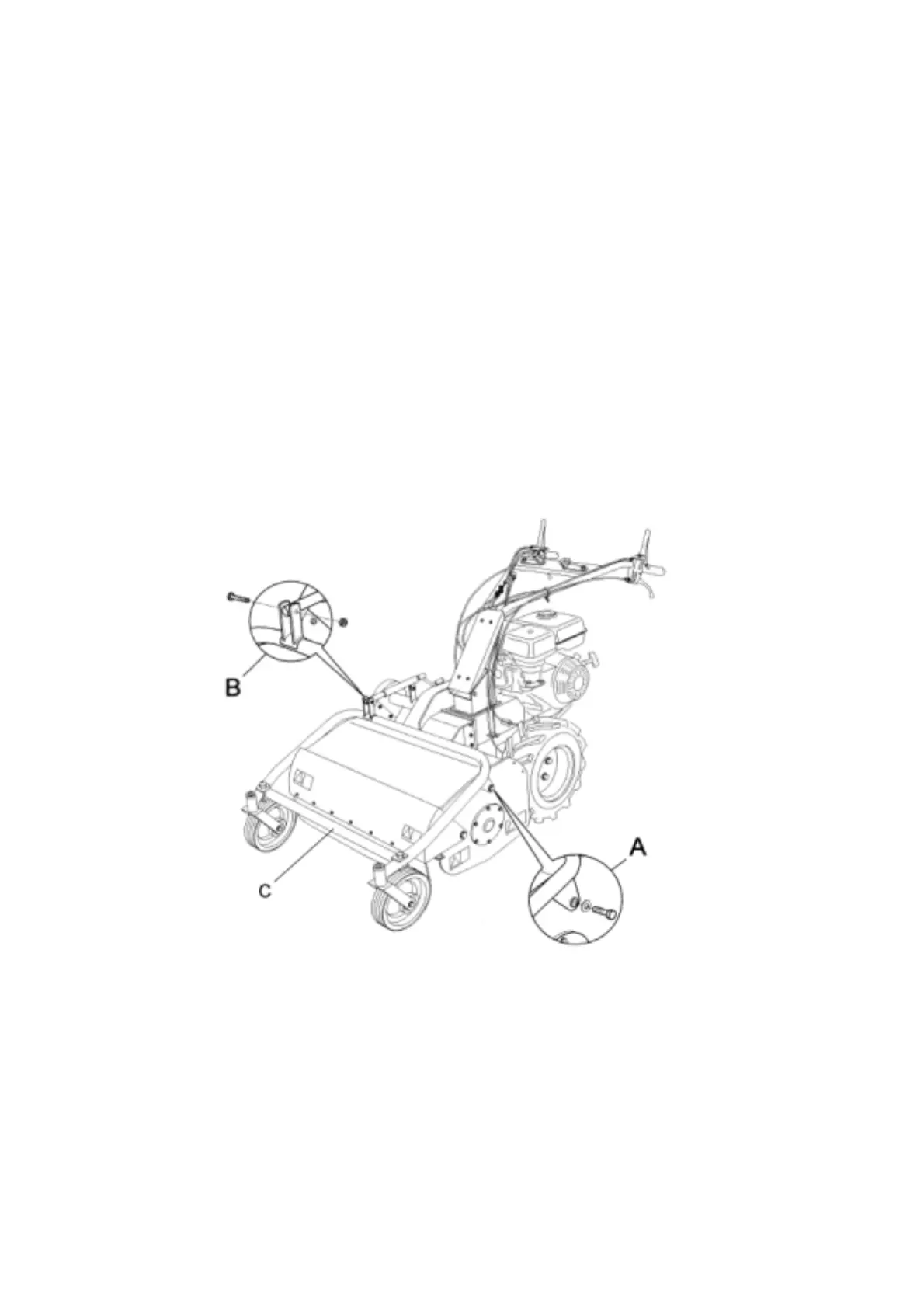

Fig. 3
Before switching on ensure that the machine has been fully assembled cor-
rectly.
