Use of the machine does not require specific lighting.
However, the recommended minimum amount of light (e.g. 200 lux) is enough to
be able to read the notices on the machine and to operate it without running risks
caused by poor light.
G) CHECKING AND REPLACING THE TRANSMISSION OIL
Check the transmission oil level using the relative level cap (Fig. 17 Ref. A). If oil
leaks out upon removal of this cap then there is enough of it in the transmission. If
not, remove the filling cap shown in fig. 17 ref. A, then top up with SAE 90.
The oil should be replaced after the first 20 hours of use and after this every 100
working hours.
Remove the drainage cap shown in fig. 17 ( ref. B) and allow all the oil to run out.
After refitting the drainage cap, fill the transmission from the filling cap with SAE
90 transmission oil.
Refit the lid securely to prevent any leakage of oil.

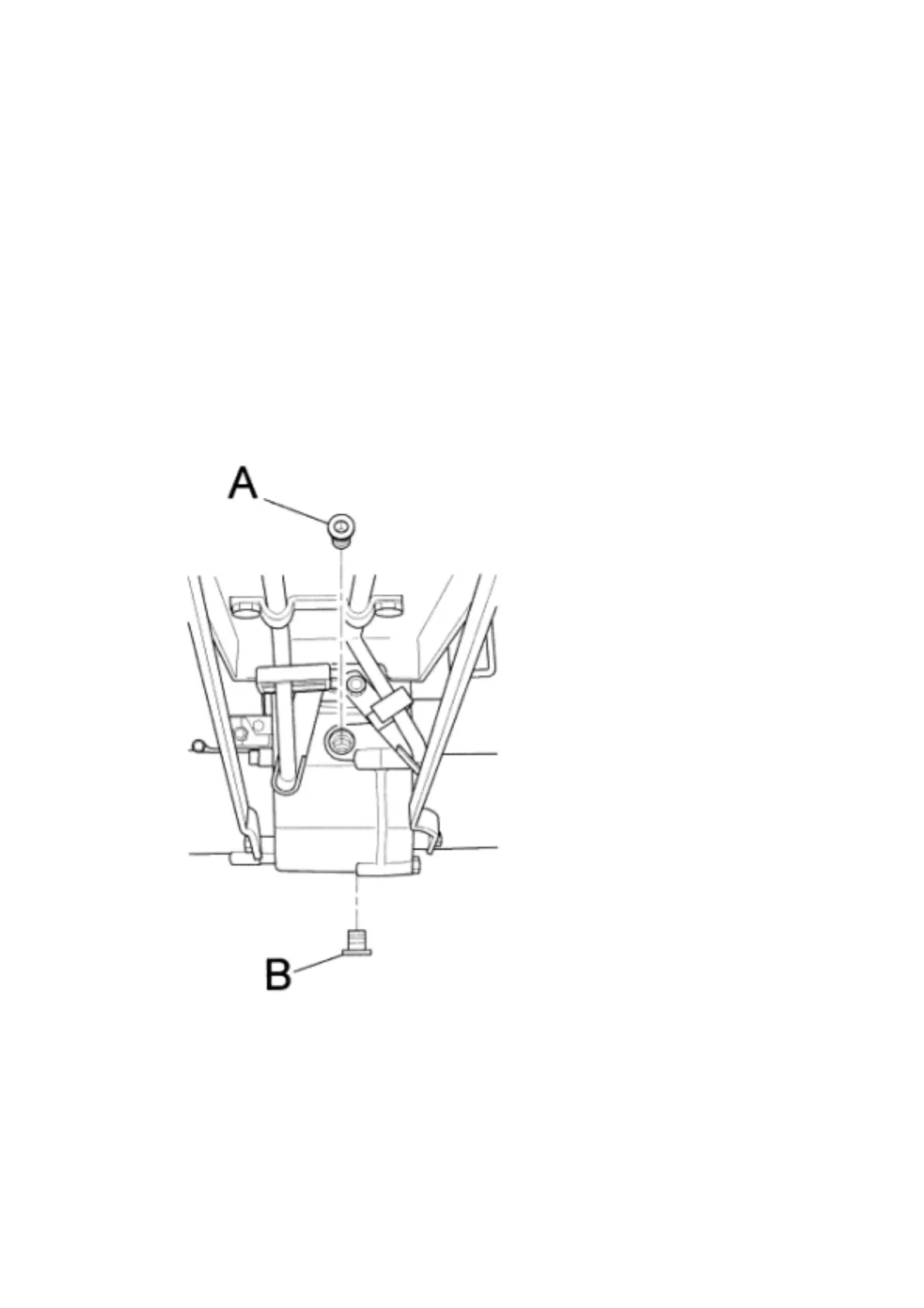

Fig. 17
