Your SOLO chainsaw - Symbols on the equipment and on the type plate,
- Components and functional parts under the cowl
ENGLISH 14
E
N
G

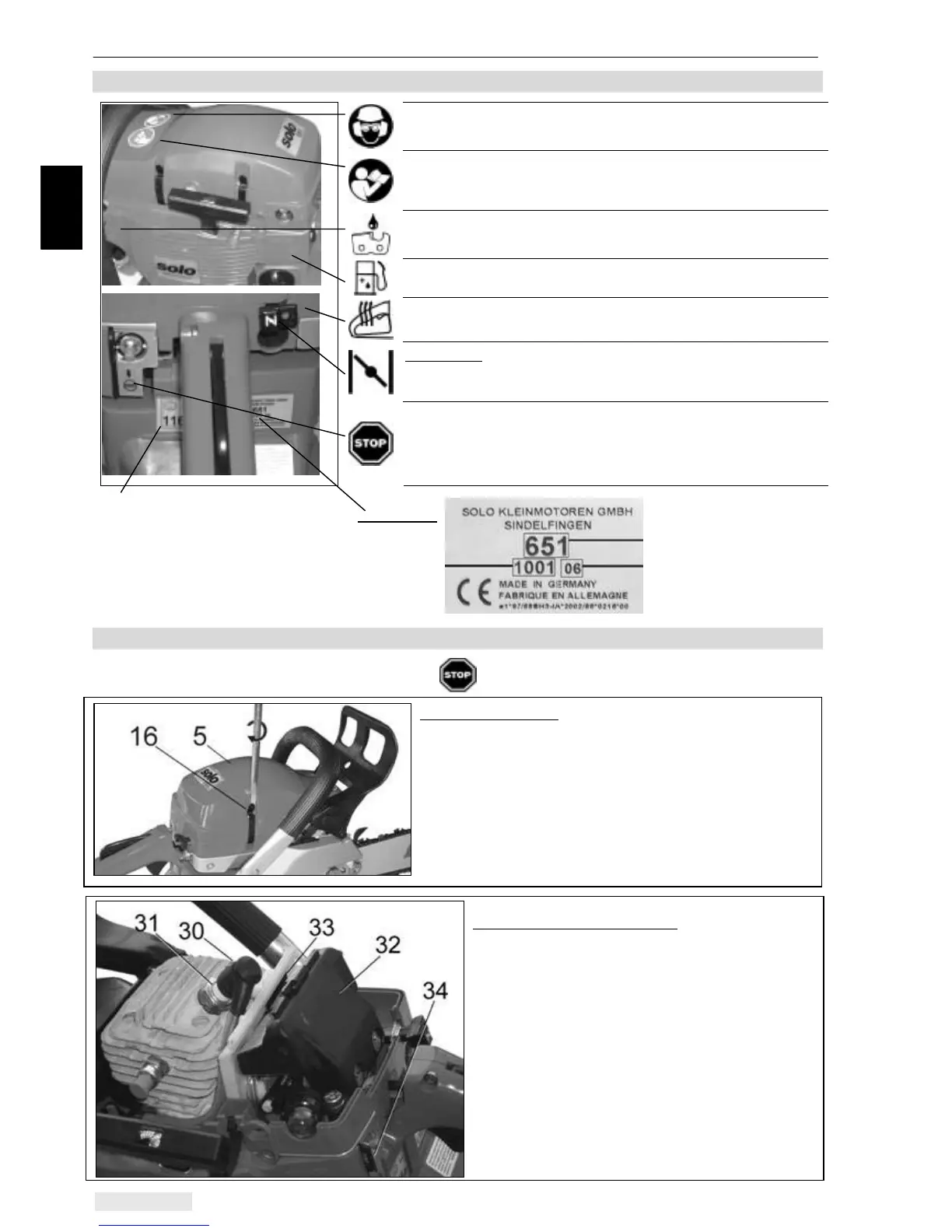

3.3 Symbols on the equipment and on the type plate
Before starting the engine, make sure that you are wearing
a helmet, ear defenders and face protection
Thoroughly read these operating instructions before
undertaking any maintenance, installation and cleaning
steps
Chain lubrication: symbol above the chain lubrication tank
cap
Fuel mixture: symbol above the fuel mixture tank cap
Grip heating ON / OFF switch
Models 651H / 656H only
Choke flap
:
Cold start position ! pull the lever out
Operation and warm start ! press the lever in
To stop the engine, move the stop switch (18) down
towards this symbol
L
WA
- statement
! Guaranteed sound power level Type plate:
Type designation
Serial number
Build year (06 !2006).
.
3.4 Components and functional parts under the cowl
Taking off the cowl:
• Release the three fastening clips (16), preferably by
applying a screwdriver in a twisting motion.
• Lift off the cowl (5) upwards.
Components under the cowl:
30. Spark plug connector
31. Spark plug
32. Main air filter
33. Sliding switch for winter and normal
mode
( 34. Pre-filter)
