ENGLISH 7

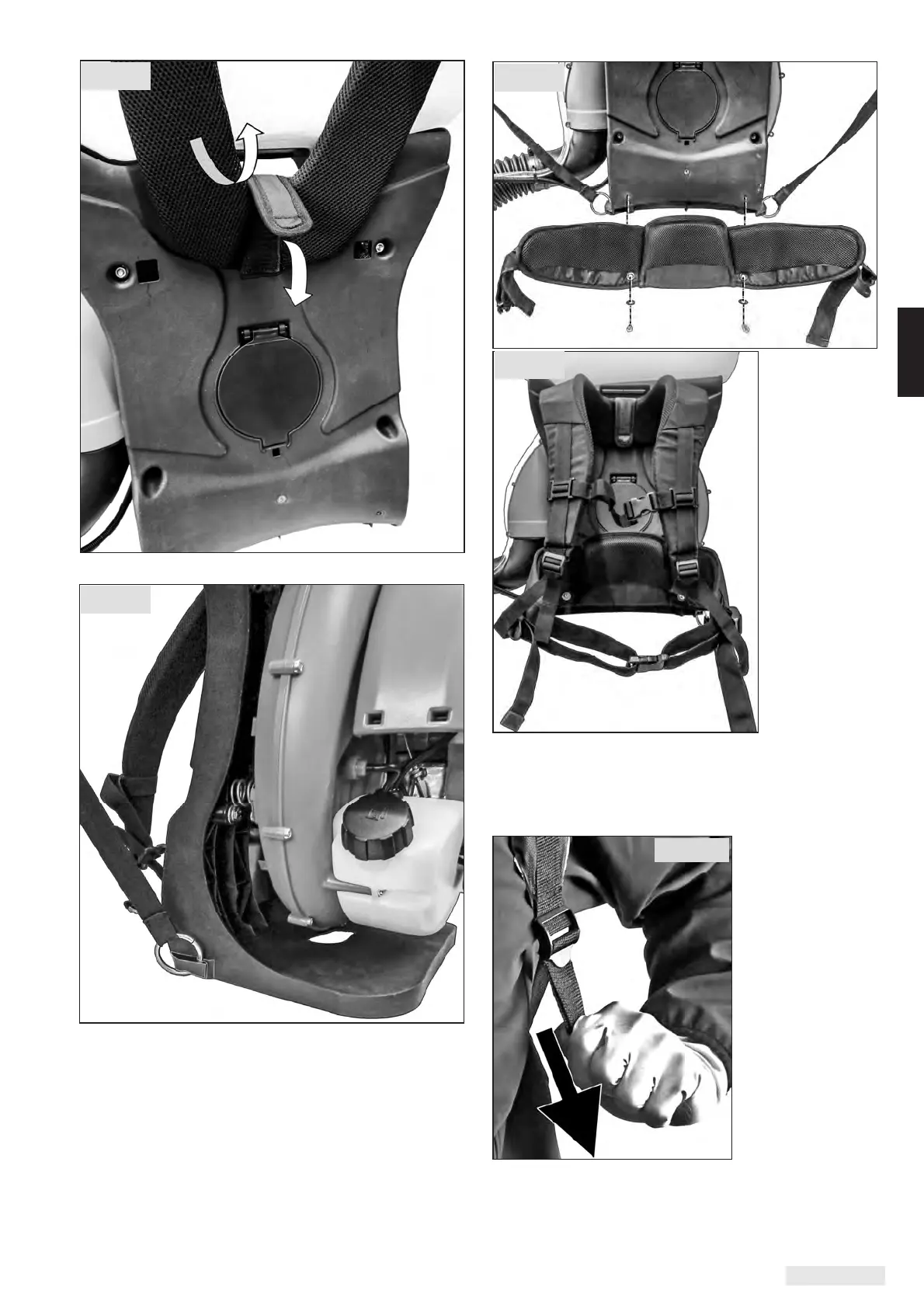

Fold the carrying system up and close the Velcro.
Latch the attachment rings to the provided tabs on
the side of the device housing at the two carry
strap ends each.
Screw the hip belt to the device backplate with two
screws and washers.
Take the device on your back for work and close
the chest strap and hip belt.
All belts are can be adjusted to the required length
with clamp sliders. Pulling the belt ends tensions
the straps.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 8b
