Page 5 / 17

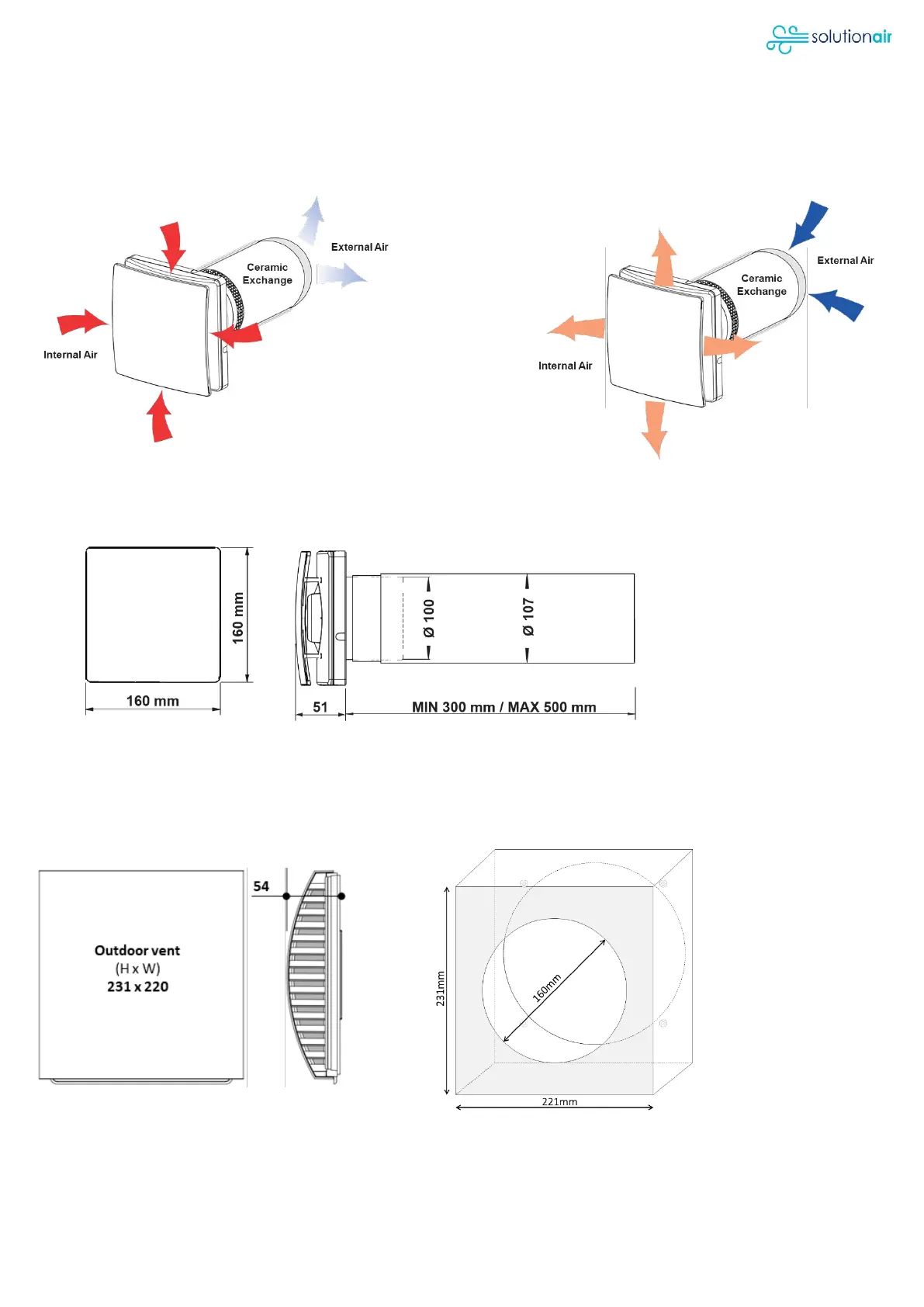

OPERATING PRINCIPLE
Extraction Cycle (Push) Intake Cycle (Pull)
60 seconds 60 seconds
DIMENSIONS
Main Unit REC-Duo 100
EXTERNAL VENT EXTERNAL COWLING (PLENUM)
