SolutionAir REC-Duo 100 PLUS RC - Installation Diagram; Visual Installation Layout

Page 7 / 17

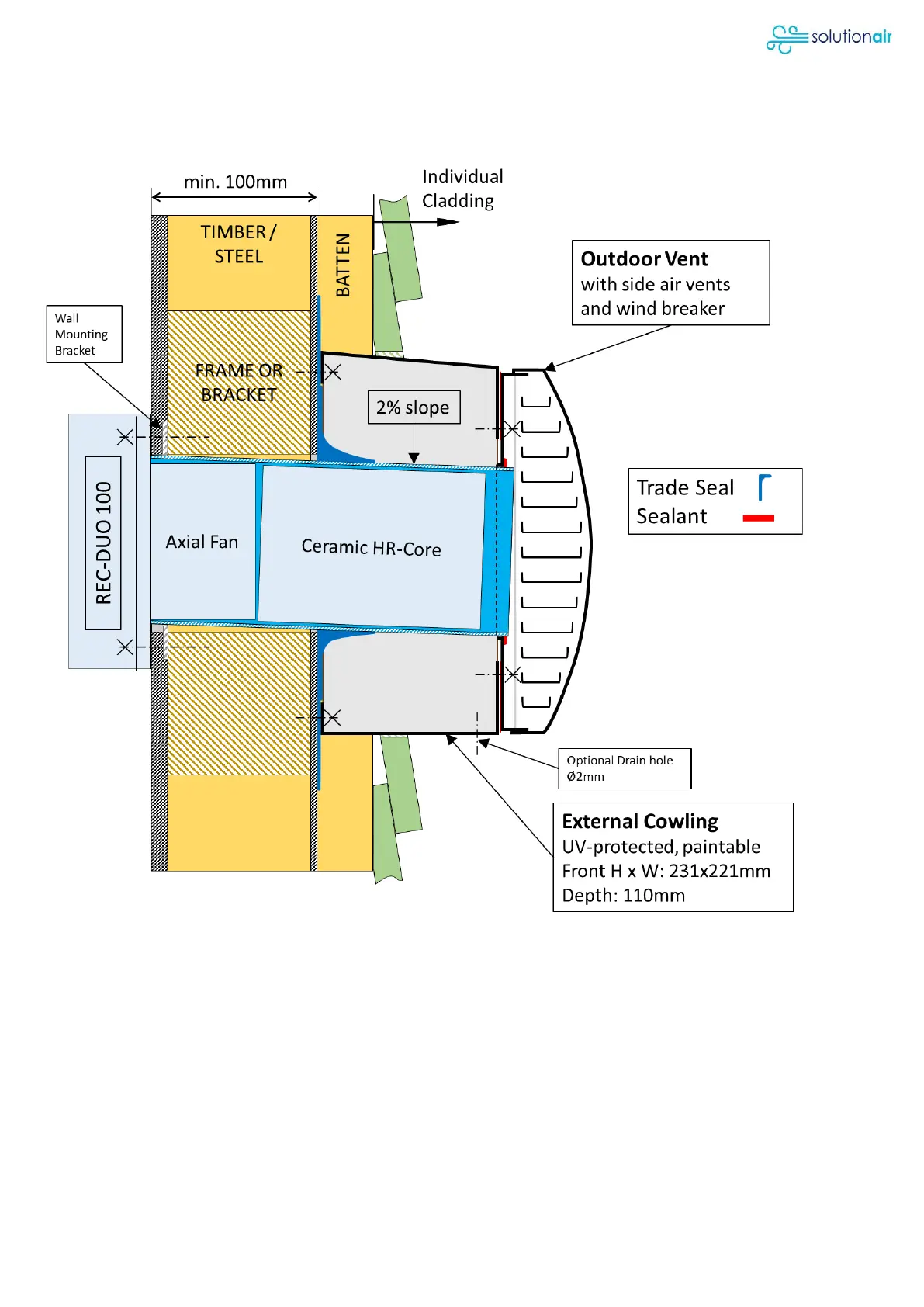

INSTALLATION DIAGRAM
Notes
− If total wall thickness is greater than 22cm, it can be considered to install the duct without
cowling.
− For retrofit projects we recommend to use always the cowling to allow a correct installation
of the trade seal.
− The ‘Wall Mounting Bracket’ and the REC-Duo ‘Power Supply Plate’ should be at least fixed
with 2 screws to the timber/ steel frame.
