EN
Control Box 3S io
5 Copyright © 2011 Somfy SAS. All rights reserved
13
STOP
Specic operation
Depending on the peripherals installed and the operating options programmed by your installer, the motor may have the following specic functions:
Operation with a Situo io, Telis io or Composio io type remote control (Fig. 13)
Stop (Fig. 8)
8
STOP
General stop (Fig. 9)
9
STOP
General closing (Fig. 10)
10
Movement interrupted (Fig. 11)
11
12
STOP
Movement not performed (Fig. 12)
Operation with safety cells
An obstacle placed between the cells will prevent the gate from closing.
if an obstacle is detected when the gate is closing, it stops then reopens fully or partially depending on how it was programmed during installation.
If the cells are obscured for 3 minutes, the system switches to the "wired deadman operation" mode. In this mode, a command via a wired input causes
the gate to move slowly. The gate moves for as long as the command is issued and stops immediately when the command is discontinued. The system
switches back to normal operating mode as soon as the cells are no longer obscured.
N.B. the "wired deadman" mode requires the use of a safety contact (e.g. keyed reversing switch ref. 1841036).
Obstacle detection operation
When an obstacle is detected during opening, the gate will stop and partially reverse.
When an obstacle is detected during closing, the gate will stop and reopen.
EN
Control Box 3S io
Copyright © 2011 Somfy SAS. All rights reserved
6
Operation with orange ashing light
The orange light is activated during any movement of the gate.
A 2-second pre-warning signal before movement starts may be programmed during installation.
Remote lighting operation
Depending on the programming performed during installation, the lighting comes on each time the motor is started and remains on when it stops for the
duration of the programmed time delay.
If a remote control is programmed for the remote lighting, operation is as follows:

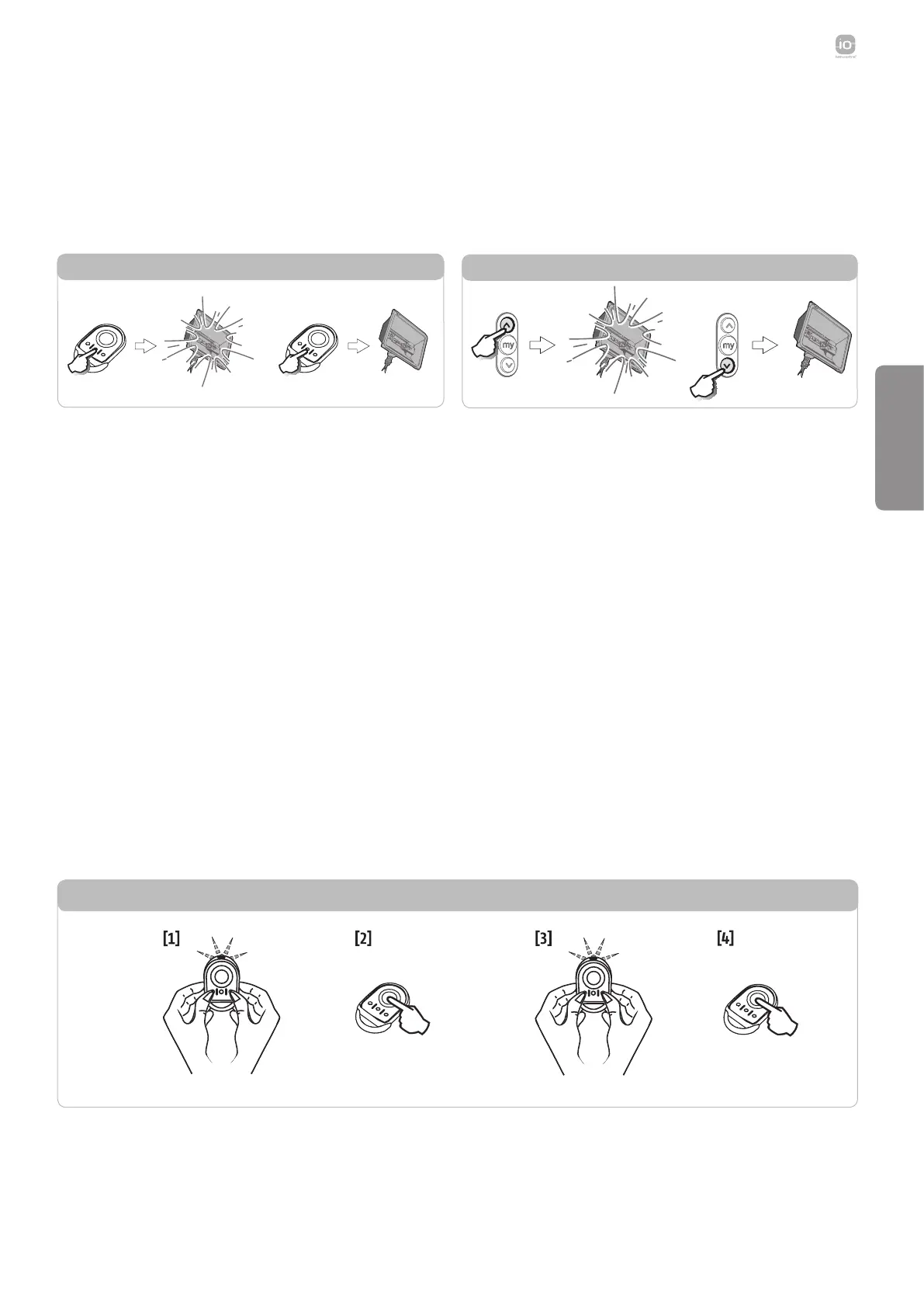

14
15
With a 2- or 4-button remote control (Fig. 14)
Press the programmed button to operate the lighting.
With a 3-button remote control (Fig. 15)
Operation in sequential mode with automatic reclosing after time delay
The gate closes automatically after a time delay programmed during installation.
A new command issued during this time delay cancels automatic closing and the gate remains open.
The next command issued closes the gate.
Operation using the backup battery
If a backup battery is installed, the motorisation will work even during a power outage.
Operation is then activated under the following conditions:
• Reduced speed.
• The peripherals (photoelectric cells, orange light, wired code keypad, etc.) do not operate.
Battery specications:
• Life: 24 hrs; 3 operating cycles depending on the weight of the gate.
• Recharging time: 48 hours
• Service life before replacement: Approximately 3 years.
For optimum battery life it is recommended that the main power supply be switched off and the motor operated using the battery for several cycles, three
times a year.
Adding remote controls
Keygo io (Fig. 16)
This operation is used to copy the function of a button on a memorised Keygo io remote control (remote control "A") to a button on a new Keygo io remote
control (remote control "B").
For example, if the button on remote control "A" opens the gate fully, the button on the new remote control "B" will also open the gate fully.
Remote control "A" = "source" remote control already memorised
Remote control "B" = "target" remote control to be memorised
Remote control "B"Remote control "A"
16
