SOMMER 800 - Product Specifications

2
Issue 02 DEC.20
PRODUCT PACK CODES DIMENSIONS (mm)
SIDE PANEL SIDE PANEL PACK B
760 EVSP76 735 to 755
800 EVSP8 775 to 795
900 EVSP9 875 to 895

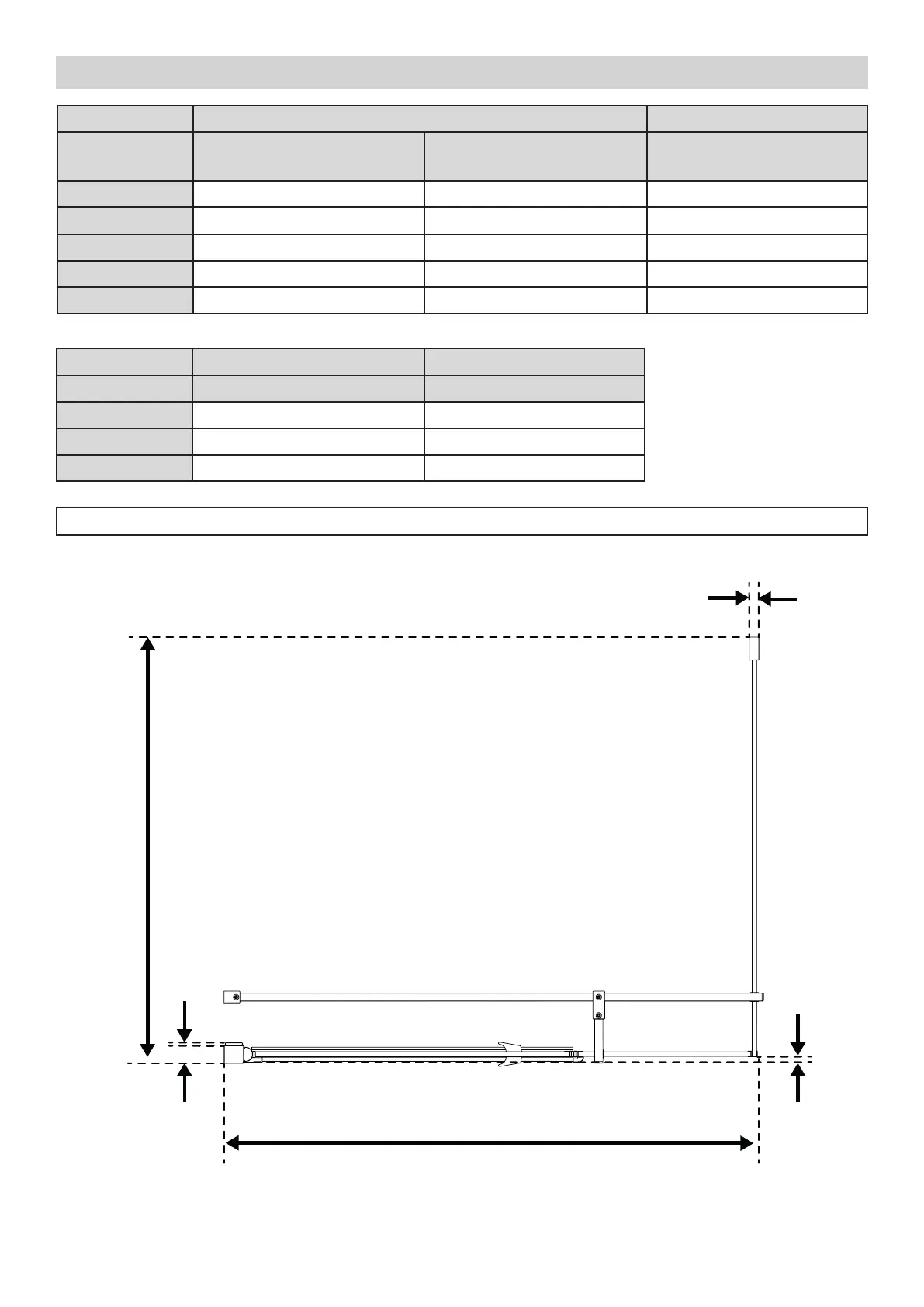

Product Sizes and Adjustments
PRODUCT PACK CODES DIMENSIONS (mm)
PIVOT CORNER IN-LINE
PANEL PACK
DOOR PACK A
800 PEV1(C/BK) PEVX(C/BK) 775 to 795
900 PEV2(C/BK) PEVX(C/BK) 875 to 895
1000 PEV3(C/BK) PEVX(C/BK) 975 to 995
1200 PEV4(C/BK) PEVX(C/BK) 1175 to 1195
1400 PEV5(C/BK) PEVX(C/BK) 1375 to 1395
ENCLOSURE HEIGHT = 2000mm
A
18mm
32mm + 5mm (screw cap)
B
13mm set back
Left Hand Configuration Shown
