SOMMER 800 - Parts Identification; Component Breakdown; Core Installation Steps; Step 1: Determine Door Handing

3
Issue 02 DEC.20
42mm
44mm

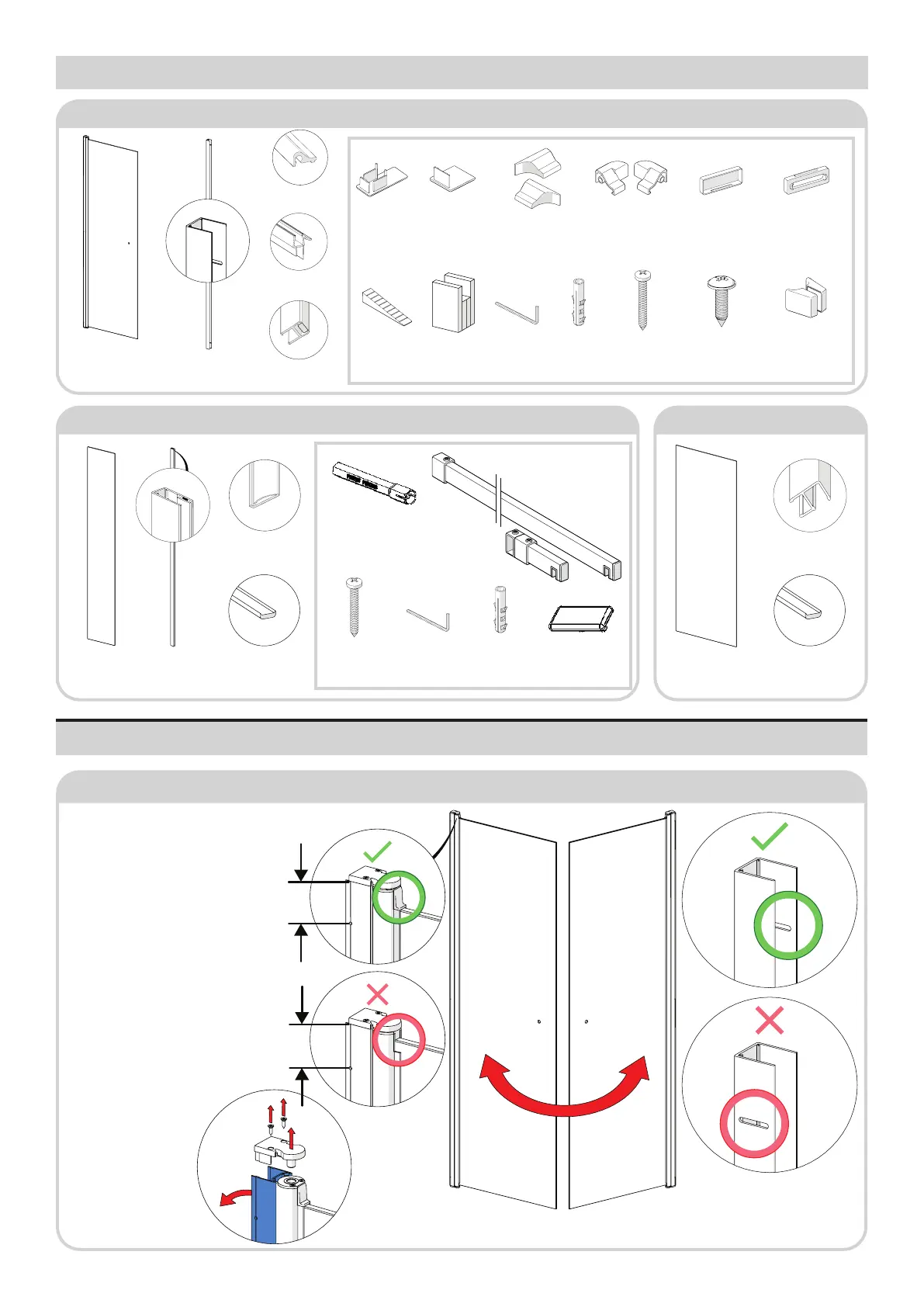

Parts List
1 x 6mm
Wall Plugs
1 x 3mm Allen
Key
1 x Wall Post
PD400
1 x Fixed
Panel
1 x Push In Seal
PLEXR-039
1 x Fixed Panel Trim
WTR-0001
Inline Panel for Corner
1 x No.8x30
PH S/S Screws
1 x Fixed Panel
1 x Corner Seal
PLEXRF-018
1 x Side Panel Trim
WTR-0001
Side Panel for Corner
1 x T-Bar
Bracket Pack
Step 1 - Decide Handing of Door
Installation Steps
1. Determine whether door is to be
left or right hand opening. You can
determine which is the top end of
the Door Assembly using the detail
shown. To make left hand or right
hand the Door assembly simple
needs to be ipped to the side.
2. The wallpost needs to have the
slots on the inside of the enclosure,
as shown in detail.To make the
wallpost left hand or right hand you
simply need to ip the wallpost over,
as shown.
3. Check the hole dimension
distance at the top. It MUST be
42mm. If it’s 44mm you’ll need
to remove the top cast via the
two CSK screws. Then rotate the
extrusion (highlighted blue) so the
hole that is 42mm
from the edge is at the top.
Detail shown for a left
hand configuration.
2 x T-Bar End Caps
M257-01
1 x Panhead
Screw Holder
M111-01
Left Hand
Orientation
Right Hand
Orientation
8 x 6mm
Wall Plugs
1 x 940-HNDL-40
Handle
1 x M503-01
End Cap
8 x No.8x30
PH S/S Screws
1 x M500-01/02
PD199 End Cap,
Pivot (L,R)
1 x M501-01/02
PD199 End Cap,
Panel (L,R)
3 x M506-01
Wall Post Screw
Cap
3 x M507-01
Wall Post Screw
Moulding
1 x 4mm
Allen Key
3 x No.6x13
PH S/S Shallow
1 x M193-01
Shim
1 x M502-01
End Cap
1 x Door Assembly 1 x Wall Post
PD401
Door Pack for Recess & Corner
1 x BLOCK-
SOM
Block
1 x PLEXRF-052
Door Seal
2 x PLEXRF-102
Magnet Seals
1 x PD199
Threshold Strip
Outside View
Top View
Outside View
Top View
Outside View
Outside View
