SOMMER 800 - Step 2 & 3: Wallpost Positioning and Drilling; Step 4: Fixing Wallposts

4
Issue 02 DEC.20
Fitted Seal to Outside
Flat Surface to Outside
9mm
9mm
1. Remove the wallposts. Placing
safely off to one-side.
2. Using a 7mm masonry drill bit
and drill (or appropriate drill bit if
drilling tiles), drill ve holes for the
door wallpost and three holes for
the inline panel wallpost using the
‘spot’ marks from step 2, each hole
should be 45mm in depth.
3. Insert the six ‘8mm Wall Plugs’
into the eight holes.
45mm Deep
Step 3 - Drill Mounting Holes
Step 4 - Fix Wallposts

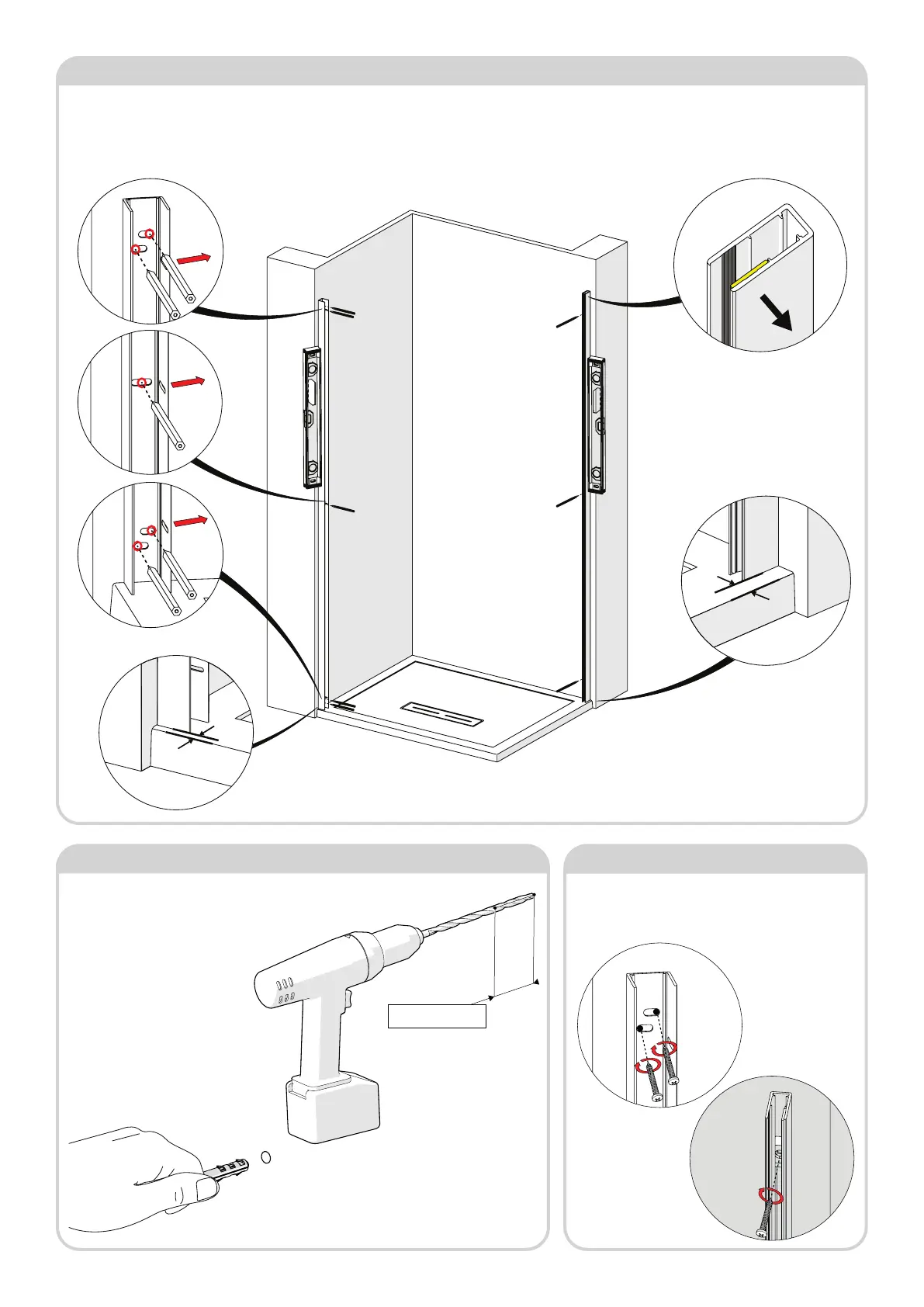

1. Position wallpost for door (with side slots to inside) 9mm in from front edge of tray, as shown below. Using spirit level to ensure wallpost is vertical, mark through
the 5 slots onto the wall surface as shown and remove wallpost. Important to mark the holes as indicated in red below, to the ends of the slots.
2. Position side panel wallpost (with tted seal to outside) 9mm in from front edge of tray, as shown below. Using spirit level to ensure wallpost is vertical, mark
through the 3 slotted holes onto the wall surface and remove wallpost.
Step 2 - Position and Mark Wallposts
1. Fix wallposts using 8 x No.8x30 PH S/S Screws
provided. Tighten all screws using pozi-head screwdriver,
ensuring the wallpost is vertical.
