5
Issue 02 DEC.20

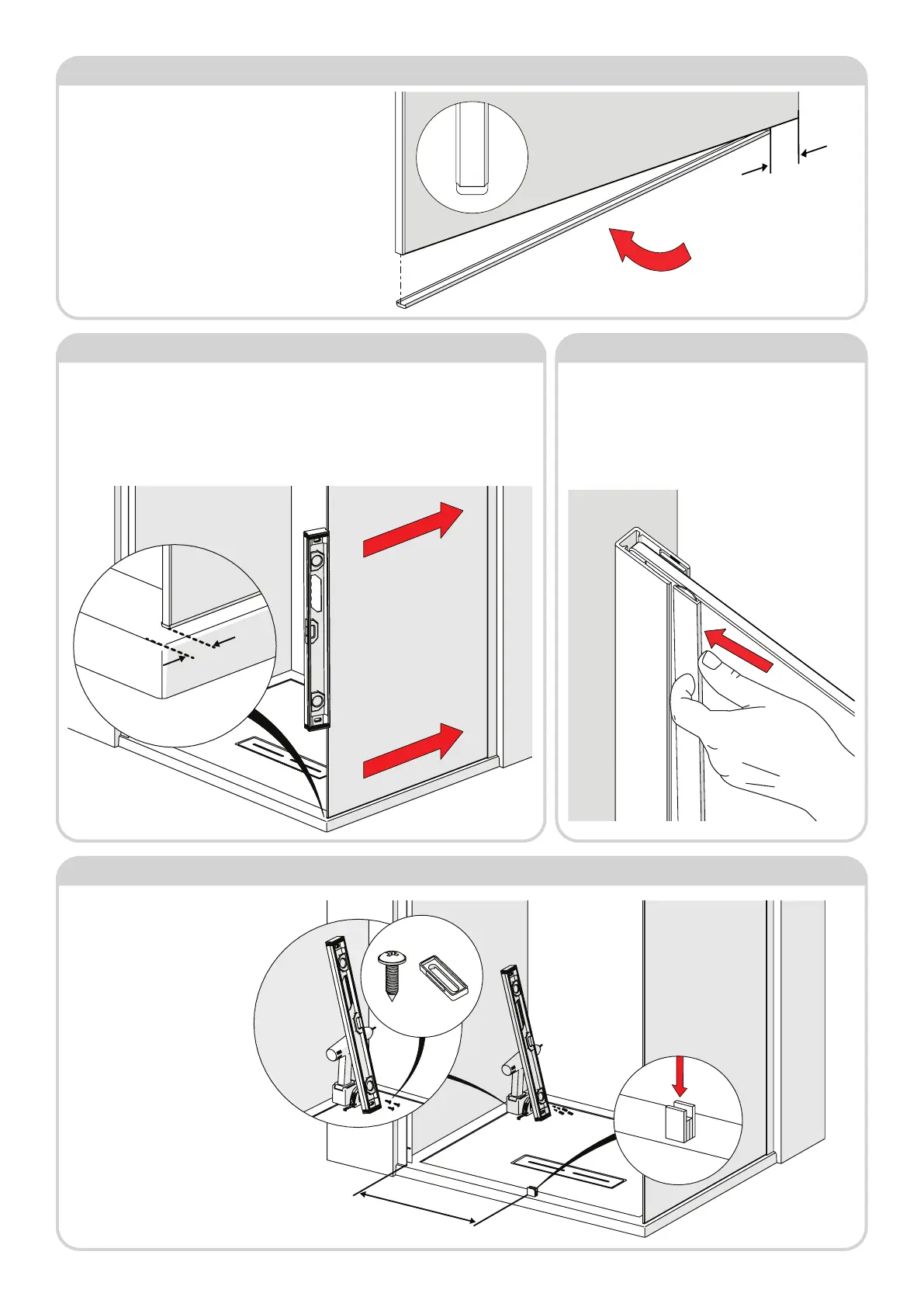

1. Take note of label ‘This surface to outside’ this will
determine which is the bottom edge of your installation.
2. Acquire the WTR-0001 Trim from the Side Panel Pack.
Peel off a small length of the bottom trim adhesive tape and
apply to bottom of glass panel 15mm from the end that will
be going into the wallpost, as shown. Continue along length
of trim, peeling away the tape as you go, until the full trim
length is adhered to the panel.
Use small upturned edges on bottom trim against chamfered
glass edges to ensure trim is tted centrally.
Step 5 - Fit Bottom Trim To Side Panel
15mm
1. Place your drill, spirit level,
tape measure, 3 x No.6x13
PH S/S Shallow and 3 x M507-
01 (from the Door Inastallation
Pack) inside the enclosure in
the corner as shown. Ensure
the tray is adequatley
protected beforehand.
2. Acquire ‘BLOCK’ (BLOCK-
SOM) from the Door
Installation Pack and place as
shown roughly 500mm from
the Door Wallpost.
Step 8 - Preparation To Install Door Assembly
1. Carefully t glass side panel into slot in wallpost, ensuring panel is parallel to tray edge.
2. Position outer edge of side panel 21mm back from the front edge of tray, as shown. Ensure
factory drawn lines on side panel glass do not extend beyond front face of wallpost.
3. Ensure outer edge of side panelis vertical, as shown, using spirit level.
Step 6 - Fit Side Panel
21mm
1. Take ‘Push-In Seal (PLEXR-039),’ Insert the seal to the
inside of the enclosure, between the side glass panel and lip
of the metal on post, ensuring the curved surface is contacting
the glass. Start at the top and work downward, until the seal is
fully inserted all the way down the panel, if tight, lubricate the
seal with water.
Step 7 - Insert Push-In Seal
Inside view
approx. 500mm
X3
X3
To Next Page
