7
Issue 02 DEC.20

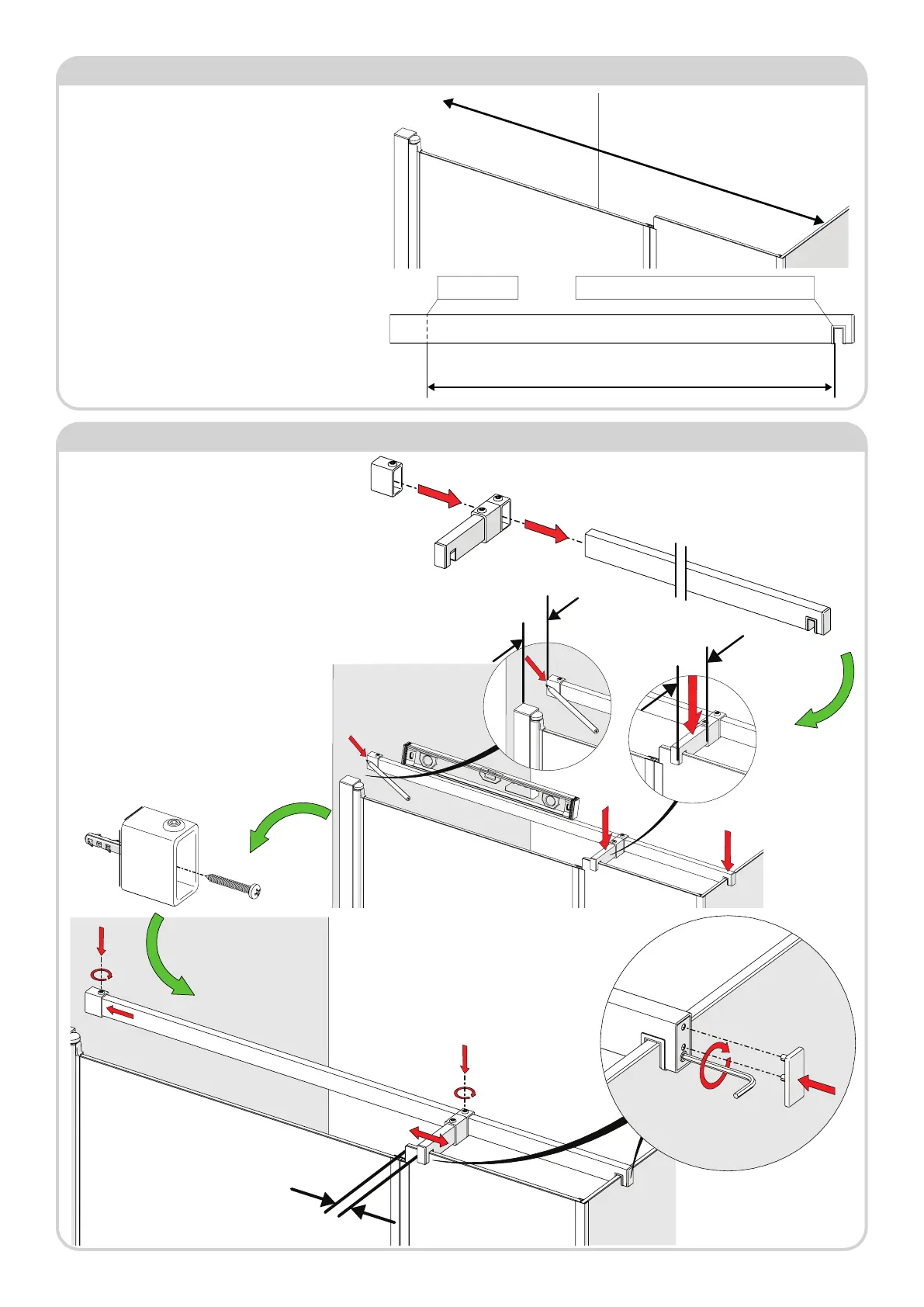

1. Slide small arm and junction bracket assembly half
way down the rail. Fit wall bracket to rail end.
2. Fit rail over both the side panel and in-line panel,
as shown. Care must be taken to prevent bracket
from falling onto the floor/showertray during this stage.
Measure ‘X’ dimension on the short arm stabiliser
as shown. Mark position of wall bracket onto wall
‘X’mm - 3mm from the inside face of the pivot
wallpost - please ensure rail is both level and square
to wall.
3. Find centre of mark on wall, drill (6mm) and t
rawlplug. Ensuring the grub screw is facing upwards,
x wall bracket to wall using screw provided.
4. Fit rail into wall bracket and onto glass panels.
Small bracket arm needs to be a miniumum of
30mm from the In-line panel vertical edge. Using
3mm allen key provided, tighten grub screw in rail
ends to glass and wall bracket grub screw to rail.
5. Re-t rail end cover cap, as shown.
Step 16 - Fitting Rail
Xmm
Xmm - 3mm = Y
30mm min.
1. Measure distance from INSIDE face of side panel to side
wall, as shown. Deduct 5mm from this measurement and
transfer this to the stabiliser rail.
Example: ‘Y’ = 760mm minus 5mm = 755 to mark on rail
2. Carefully trim stabiliser to length using hacksaw.
Step 15 - Trim Stabiliser Rail (if required)
Y
‘Y’ dimn. minus 5mm
Measure rail from inside of notch as shown
Trim this end
To Next Page
