Sonardyne ROVNAV 6 - Connecting the Equipment

CONNECTING THE EQUIPMENT
STEP 3
1
2
3
4

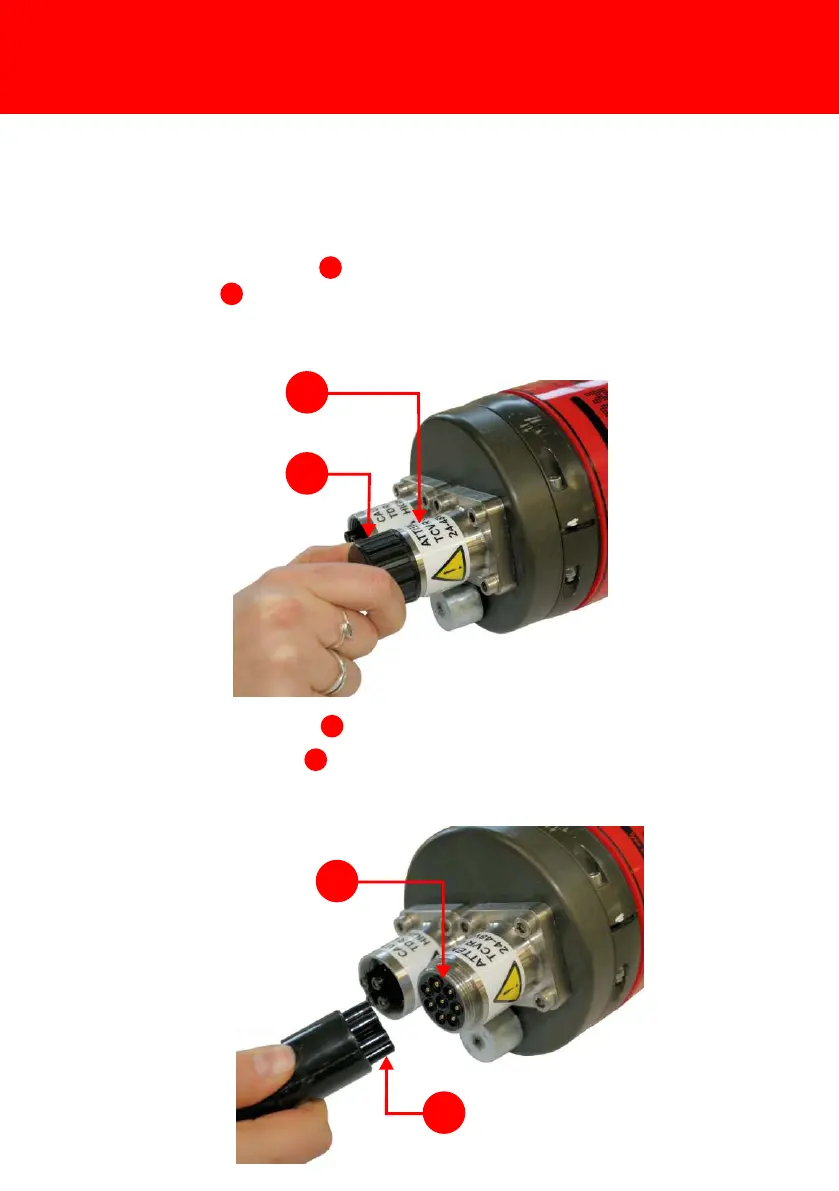

Use the following instructions to connect the 6G Instrument Test Box (Type 8300-066) to
the Transceiver.
1Remove the protective cover from the TCVR Power and Comms 8-Way AGP
connection point .
1
2
2Check the connection points are free from obstructions and dirt.
3Position the Test Box cable in the correct orientation and insert into the connection
point.
3
4
